ISUZU Double Row Aerial Lift Truck 130hp 16 Meters Hydraulic Platform Truck

Duży Obraz : ISUZU Double Row Aerial Lift Truck 130hp 16 Meters Hydraulic Platform Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,ISO,SGS,BV
Numer modelu:	clw5070

Zapłata:

Minimalne zamówienie:	1
Cena:	negotiable
Szczegóły pakowania:	Naga paczka z woskiem
Czas dostawy:	20-30 dni
Zasady płatności:	D/A, D/P, Western Union, MoneyGram
Możliwość Supply:	600 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Otręby:	Dongfeng, ISUZU, JAC, JMC, FORland, foton	SILNIK:	130 KM,
Skrzynia biegów:	5 do przodu i 1 do tyłu	Wysokość:	12 metrów, 14 metrów, 16 metrów, 12 M, 14 M, 16 M
Pojemność kubełka:	200 kg	Pasażer:	4 ~ 5 osób
Podkreślić:	aerial platform truck , aerial work platform truck

ISUZU double row 130hp Aerial Platform Truck 16Meters hydraulic platform truck

Product Description

1. ISUZU Double Row Chassis, can carry 6 Passengers.

2. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.

3. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.

4. 360 degree Rotation Arms.

5. Arm and H Leg Automatic Locking System to secure safety handling

Specifications of isuzu Aerial Platform Truck

Drive model		4×2
Chassis		QL1070
Overall Dimension LWH mm		8400×2050×3050
GVW		6810 kg
Curb weight		6485kg
Wheel base mm		3815
Wheel track(front/rear) mm		1504/1425
Overhang (front/rear) (mm)		1015/2280
Approach/Departure angle(°)		24/10
Engine	Model	4KH1-TCG4
	Type	Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse power	120 hp
	Output volume	2999 ml
	Emission standard	Euro V
Max. speed		90 km/h
Gearbox		5 forwards & 1 reverse
Clutch		Reinforced diaphragm clutch
Steering Gear		Power steering, hydraulic steering with power assistance
Fuel tank (L)		120
Tire		7.00-16 , 7 pieces including one spare tire
Brakes		Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Equipment		Max operation height>=14m; max operation radius>=6m; max working platform height>=12.5m; working platform rating loading=250kg; working platform rating allowable passengers = 2; working platform dimension: 11005701000 mm; protection dimension:180505mm; 360°turning(left or right), 4 H-shape legs. 1.5 ton crane, Insulating material in the cage., the cage can be operated both in the air and on the earth.
Delivery time		30 days after the payment

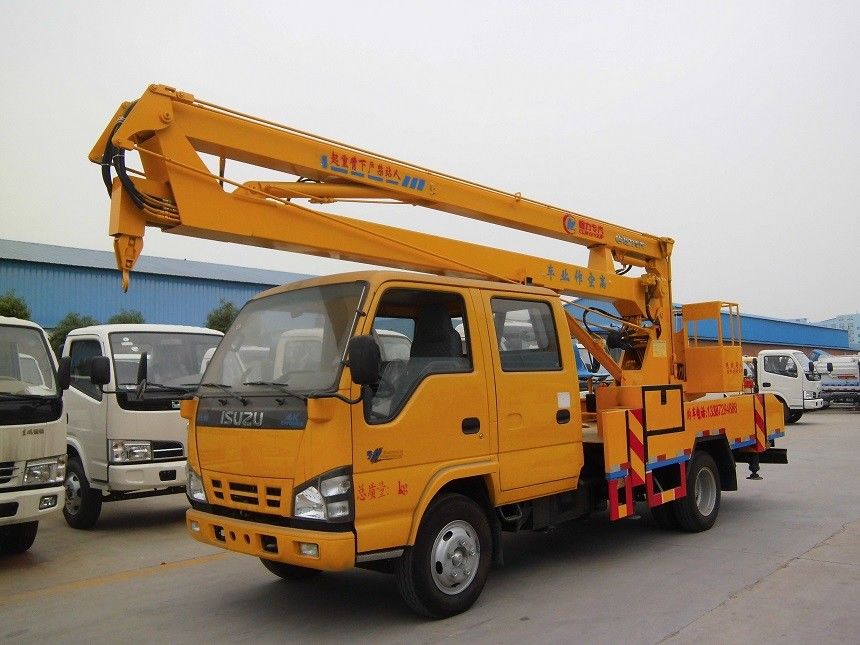

Product Photos

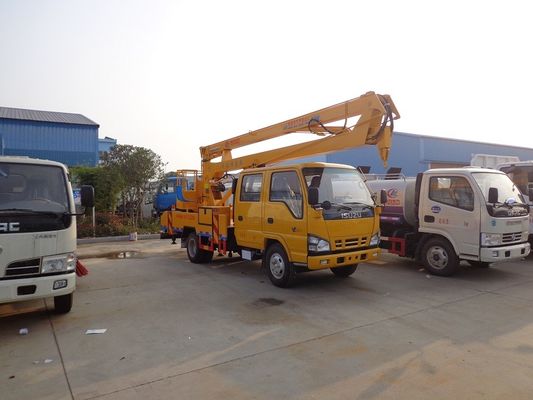

ISUZU Double Row Aerial Lift Truck 130hp 16 Meters Hydraulic Platform Truck 0

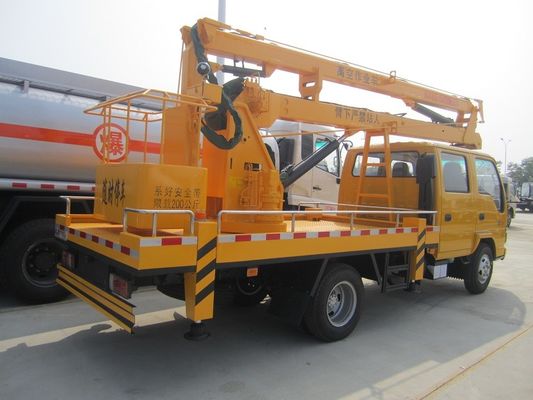

ISUZU Double Row Aerial Lift Truck 130hp 16 Meters Hydraulic Platform Truck 1

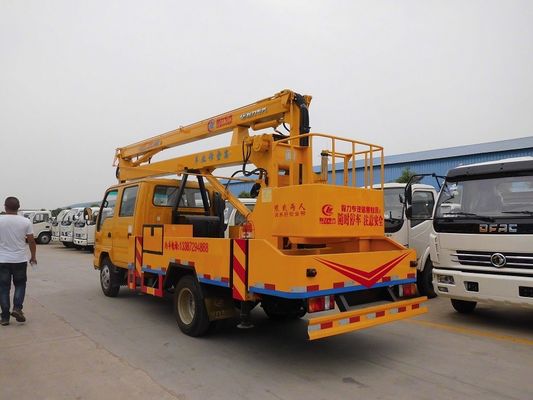

ISUZU Double Row Aerial Lift Truck 130hp 16 Meters Hydraulic Platform Truck 2

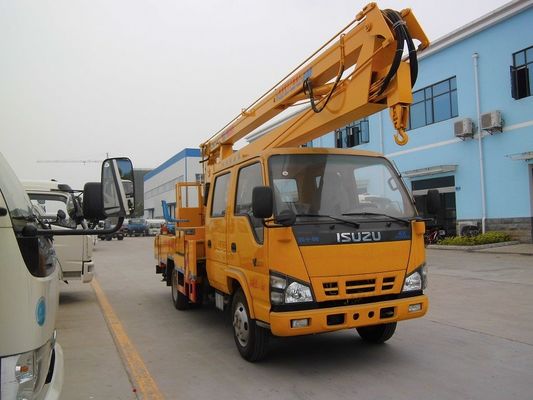

ISUZU Double Row Aerial Lift Truck 130hp 16 Meters Hydraulic Platform Truck 3

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of aerial platform trucks I can order from your company?

A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied aerial platform truck to any overseas companies?

A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
