Bobtail LPG Gas Tanker Truck Howo 6X4 20cbm 10 Ton For Lpg Transportation

Duży Obraz : Bobtail LPG Gas Tanker Truck Howo 6X4 20cbm 10 Ton For Lpg Transportation

Szczegóły Produktu:

Miejsce pochodzenia:	SUIZHOU, CHINY
Nazwa handlowa:	CLW
Orzecznictwo:	ASME,CCC,BV,SGS
Numer modelu:	CLW5250GYQ

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	nagi, woskowany, masowiec, ro-ro
Czas dostawy:	30 dni po otrzymaniu depozytu
Zasady płatności:	D/A, L/C, D/P, T/T, Western Union, Moneygram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Tworzywo:	Q345R, Q370R, Q420R	Standard:	GB150-2011, GB/T19905-2005, ASME VIII sekcja II
Pojemność czołgów:	10MT, 10TON, 10t, 10ton, 12m, 12ton, 12ton, 12t	Rozmiar zbiornika:	20 cbm, 20000 litrów, 20000 litrów, 20000 l
Opona:	Opona bezdętkowa 10R22.5 lub 10.00R20	Grubość:	10 mm
Wskaźnik poziomu:	Ręczny Rotator lub kula typu Rochester	Kolor:	Biały, czerwony, dostosowany
Podkreślić:	bobtail propane truck , propane service truck

Product Description

10MT LPG Bobtail Sinotruk Howo 6X4 20cbm 10ton lpg bobtail tanker truck

1) LPG bobtail truck is used to transport or deliver lpg or liquid petroleum gas mobile and supply lpg to lpg stations.We can supply lpg bobtail truck from 2ton to 18ton.

2) Manufacturing standards of lpg bobtail: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

3) Optional accessories of lpg bobtail:ROCHESTER level gauge,flow meter,sunshelter

4) Standard equipment of lpg bobtail truck:flow meter or computer controled filling machine,chinese lpg pump or corken,blackmer pump.

Specifications of 10MT LPG Bobtail Sinotruk Howo 6X4 20cbm 10ton lpg bobtail tanker truck

Item No.	Parameters
Overall Dimension	10590x2495x3350 mm
Driving Model	Left hand drive
Gross Vehicle Weight	25000 kg
Curb Weight	14000kg
Payload	10000kg(10Ton)
Wheel Base	4600+1350 mm
Front/rear Tread	2022/1830 mm
Approach/Departure Angle	16/12 degree
Front Axle	HF7,7000kg
Rear Axle	ST16,16000kgX2
Engine	WD615.87,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
Engine horsepower	290HP EUROII
Displacement	9760mL (Diesel)
Max Driving Speed	95 km/h
Gearbox	HW19710
Cabin	Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner
Tire	12R22.5 (11 pieces)
LPG tank
Volume:	20cbm
Tank material:	Q345R
Tank diameter:	2050mm
Tank thickness:	10mm
End plate	10mm
Tank length:	7644mm
Gas phase	DN50
Liquid Phase	DN80 according to Niger market
Filling gas	Propane(LPG)
Design Pressure:	1.61Mpa
Accessory
LPG Pump	1 pc
Filling hose with filling nozzle	15M

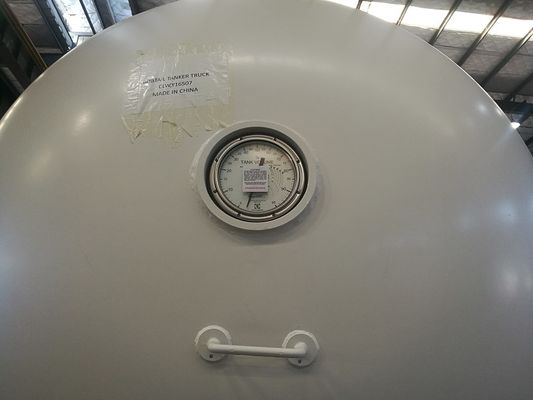

Level Gauge	Rochester float-ball level gauge
Safety Valve	1,DN80
Tool and Valve Box	1
Thermometer	1
Pressure Gauge	1
Emergency Valve	1
Fender	Steel
Fire Extinguisher	2
Exhaust shaft	At the front of truck for safety

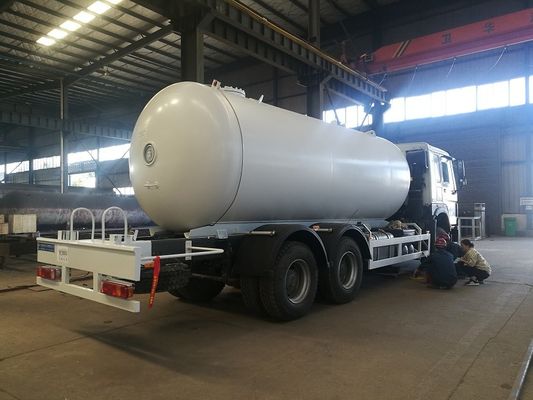

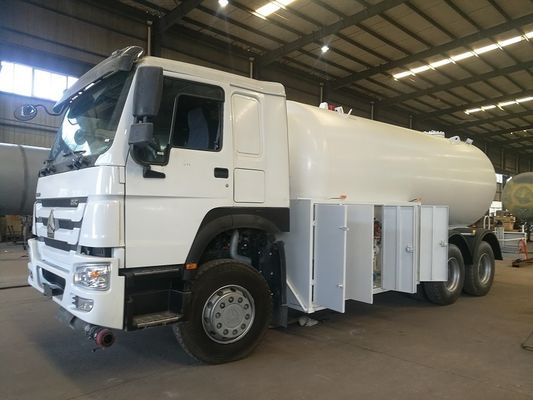

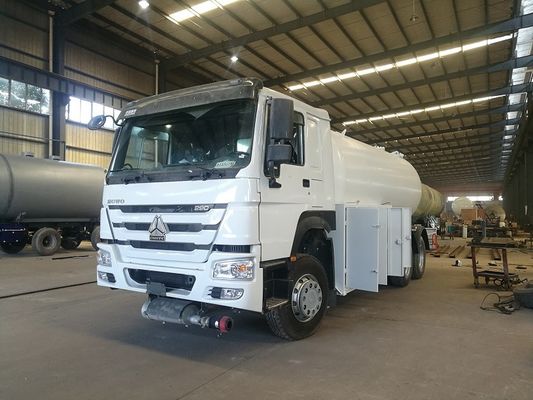

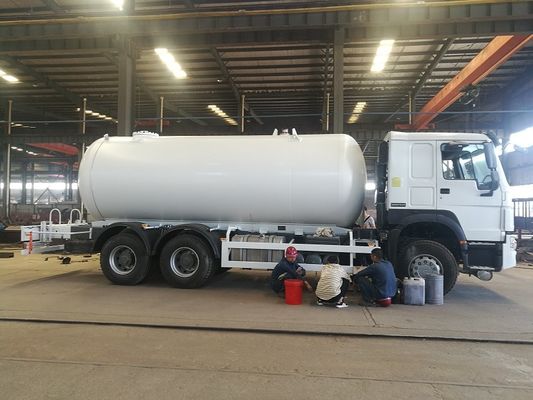

Bobtail LPG Gas Tanker Truck Howo 6X4 20cbm 10 Ton For Lpg Transportation 1

Bobtail LPG Gas Tanker Truck Howo 6X4 20cbm 10 Ton For Lpg Transportation 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?

A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?

A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?

A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.

Q4: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
