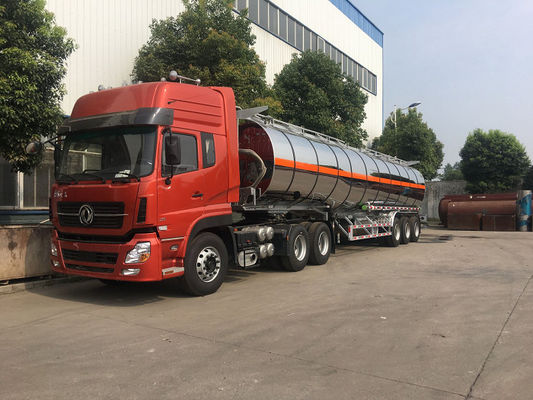

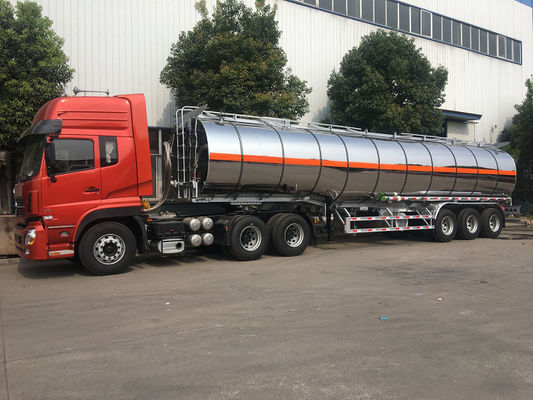

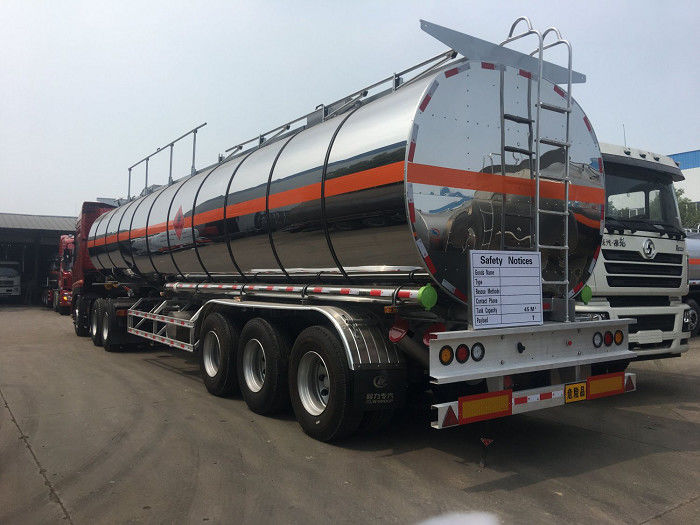

Oil Tank Trailer Fuel Delivery Truck Semi Trailer 45CBM Aluminium Alloy Thermal Insulation

Duży Obraz : Oil Tank Trailer Fuel Delivery Truck Semi Trailer 45CBM Aluminium Alloy Thermal Insulation

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,BV,SGS
Numer modelu:	CLW9450

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, ro-ro
Czas dostawy:	20 ~ 25 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	1000 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Tworzywo:	Aluminium 5083 5454	Grubość materiału:	5mm do 7mm
Zamiar:	Olej palmowy, olej sojowy, ropa naftowa	Kształt zbiornika:	Okrągły, Kwadratowy Okrągły, Owalny,
Główna wiązka:	Belka ze stali o wysokim napięciu	Oś:	Fuwa, BPW, York Oś
Opona:	12R22,5, 11R22,5	Marka opon:	Podwójna moneta, trójkąt, Aeolus itp
Rynek wzornictwa:	Rynek afrykański lub azjatycki
Podkreślić:	gasoline tanker truck , gas delivery truck

Crude Oil Semi trailer 45CBM Aluminium Alloy Thermal Insulation oil tanker trailer

Product Description

Rust Resist Tank Design, good for eatible oil delivery, such as palm oil, soybean oil, other type of oil.
Tank Material: Aluminum 5083 5454,
All Aluminum Pipe line with the aluminum valve.
Bottom Discharge, API Manwhole, Vapor Recovery, Pnumatic Control Bottom Valve.
Whole Tank Rolling Machine to better protection
Good Welding Technic with Sub-merged Arc Welding

Specifications of Crude Oil Semi trailer

Main information
Product Name:	45 Aluminium Cubic Alloy Thermal Insulation Crude Oil Semi trailer
Item No.			Remark
Exterior		Container Type	45
Tank Materials		5083	Chinese Standard
Dimensions:	mm	13000×2500×3800
Design Capacity	m3	45
Thickness	mm	6
End Enclosure	mm	8
Axi s Number		3	13TBP W 13T BP W air axles
Tire Size	12R22.5

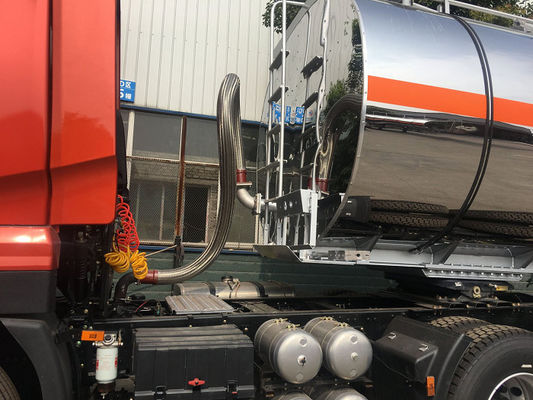

Heating Pipe	mm	108	L=13000
Manhole	DN500		European standard installed one sets of standard manholes.
Asphalt Filling Hole	DN250
End Gas Flange Hole of Heating Pipe	DN108		1
Insulated Layer	mm	80	Fiberglass wool
Exterior Close Plate	mm	1.2	Stainless steel mirror
Traction Pin	90 #
Tank Accessories
NAME
Unloading valve	DN100 outlet with Ball valve
Anti-static devices	including ground towing, static line plate, copper
Tank outside escalator	ladders installed in front of tanks, one.
Tank top protective devices	Within walking units, install anti-skid steel mesh.MountedAluminium alloy guardrail at the top of tank.
Oil hose	2 8m oil hose
Protective devices	Install fence around and the tail bumper
Fender	Aluminium alloy.
Fire extinguisher boxes	the left and right tank was installed in the back of a total of 2, can be mounted 4kg fire extinguishers
Lamps and wires	24V system, 7 pinholes in the tank and rear access, with parking, reverse, left and right lights, red and white-outline marker lamps installed in front of the car,rear.
	A spare tire rack, a tool box.

Oil Tank Trailer Fuel Delivery Truck Semi Trailer 45CBM Aluminium Alloy Thermal Insulation 0

Oil Tank Trailer Fuel Delivery Truck Semi Trailer 45CBM Aluminium Alloy Thermal Insulation 1

Oil Tank Trailer Fuel Delivery Truck Semi Trailer 45CBM Aluminium Alloy Thermal Insulation 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of Crude Oil Semi trailer I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied Crude Oil Semi trailer to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
