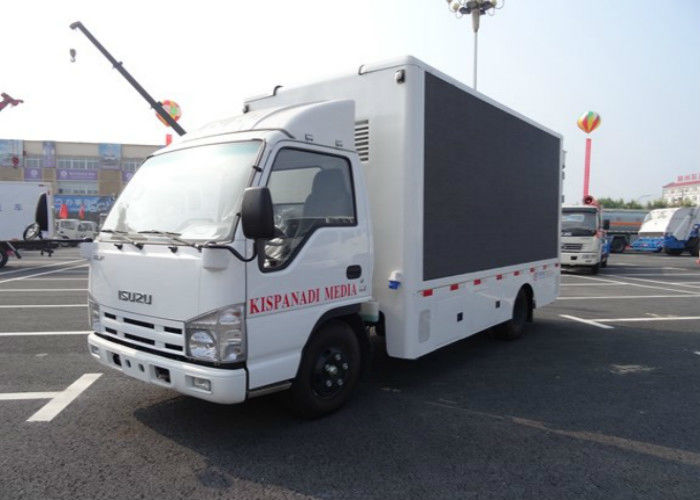

ISUZU Outdoor Digital Advertising Billboard Truck With P6 LED Display Screen

Duży Obraz : ISUZU Outdoor Digital Advertising Billboard Truck With P6 LED Display Screen

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO, CCC, BV, SGS
Numer modelu:	CLW50657BGA

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Z piankową osłoną na ekranie LED
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek / miesiąc

Kontakt

Szczegółowy opis produktu

Marka podwozia:	Dongfeng, ISUZU, Howo, Foton	Model napędu:	4X2, 6 kół
Rozstaw osi:	2800 mm, 3300 mm, 3360 mm, 3800 mm, 4500 mm, 4700 mm itp.	Typ tablicy LED:	Ekran jednostronny, ekran dwustronny, ekran trzystronny
Rozmiar ekranu:	4㎡,5㎡,6㎡,7㎡,8㎡,9㎡,10㎡,12㎡ W zależności od rozmiaru obudowy	Piksel:	4 mm, 5 mm, 6 mm; P4 P5 P6
Kolor chipów rur:	Pełny kolor i monochromatyczny	Tryb sterowania:	Synchroniczne VGA
Kolor:	Biały; Niebieski; Zielony; Żółty; Dostosowane	Gwarancja:	1 rok
Podkreślić:	scrolling billboard truck , mobile led display truck

ISUZU outdoor digital Advertising Truck with P6 LED display screen

Product Description

1. Purpose: For mobile advertising, products promotion, branding, draft activities, concerts, and sport events, etc.

2. Main parts: LED screen, Generator set, Computer, Control system etc.

Product Details

Chassis Specification
Item No.		Parameters
Drive model		4x2, 6 Wheels
Overall Dimension		5995×2040×2990(mm)
Chassis Brand		ISUZU 100P
Cabin		Single, Left Hand Driving, with ABS
Engine	Model	4JB1CN, 4 Cylinders
	Power	72KW/98HP
	Emission standard	EUROIV
	Displacement	2771(ml)
	Fuel type	Diesel
Gearbox		5 Forward & 1 Reverse Gear
Brake System		Pneumatic
Steering Gear		Power Assistant
Wheel Base		3360(mm)
Front/Rear Axle Loading		2000/4800(Kg)
Approach/Departure Angle		24/16(°)
Tire		7.00-16
Max Driving Speed		100(km/h)
Upper Structure
LED Screen	Right LED Screen		3840mm(L)×1728mm(H)=6.63m2 P6 full-color Screen
	Left LED Screen		3840mm(L)×1728mm(H)=6.63m2 P6 full-color Screen
	Rear LED Screen		1280mm(L)×1440mm(H)=1.84m2 P6 full-color Screen
	P6 full-color outdoor LED display, waterproof, shake-proof, high brightness, long life
Multi-media system	①1 unit computer ②Sound system including 4 units waterproof loudspeaker 1 unit power amplifiers
Generator Set	①OUMA brand, Silent diesel generator ②220V domestic power supply
Security system	Overheat protection
Remarks	①Circulating ventilation and cooling systems ②Aluminum patterned floor ③Internal and external electrical distribution box
Optional Items	①Mobile stage
	②Scrolling light box

Product Show

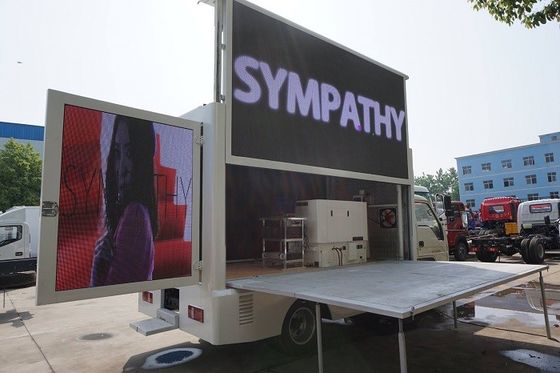

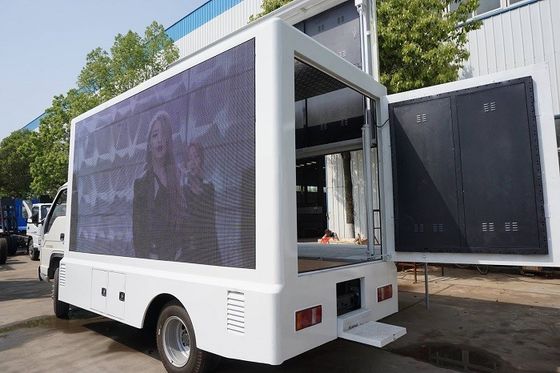

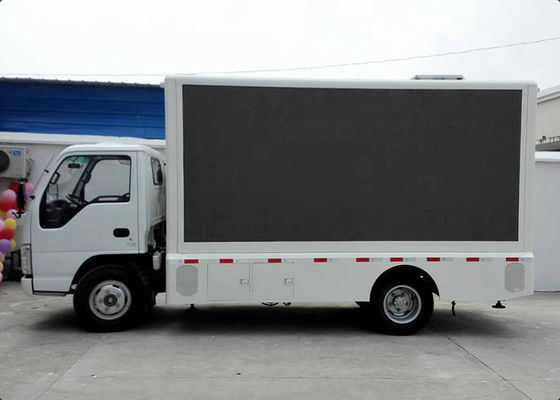

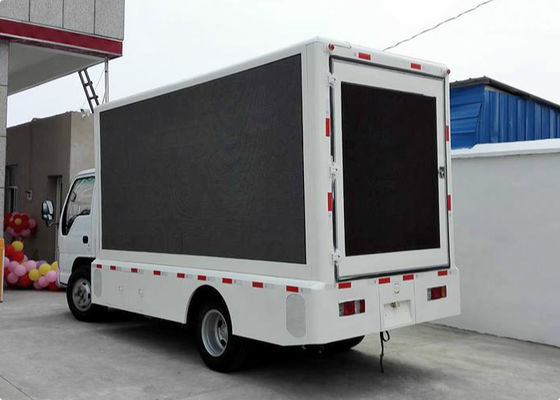

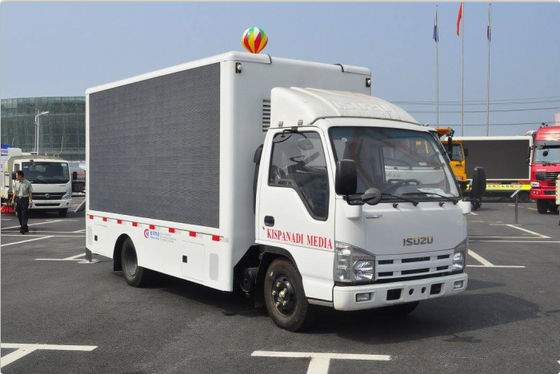

ISUZU Outdoor Digital Advertising Billboard Truck With P6 LED Display Screen 0

ISUZU Outdoor Digital Advertising Billboard Truck With P6 LED Display Screen 1

FAQ

Q1: What kinds of Mobile Advertisement Truck products I can order from your company?

A: We can supply all kinds of LED advertising truck, Mobile stage truck, Mobile stage truck with LED screen, LED advertising trailer, Mobile stage trailer, Mobile stage trailer with LED screen and LED bus etc.

Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

A: Our CBU Mobile Advertisement Truck is produced as per China GB local standard, but the LED screen and other mian products have CE certificate; We can't export CBU Mobile Advertisement Truck to those countries, but we can export super structure to those market, we exported 30 units LED truck super structure to USA market at the beginning of 2018.

Q3: Have you supplied to Mobile Advertisement Truck any renowned companies?

A: Our group company is a regular strategic partner of some big advertising company and mobile cellphone company. We have supplied many different type Mobile Advertisement Truck for them with different chassis brand. Eg: China biggest cellphone company VIVO and OPPO group is our customer and they already purchased more 300 units LED truck from us in the past 3 years.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
