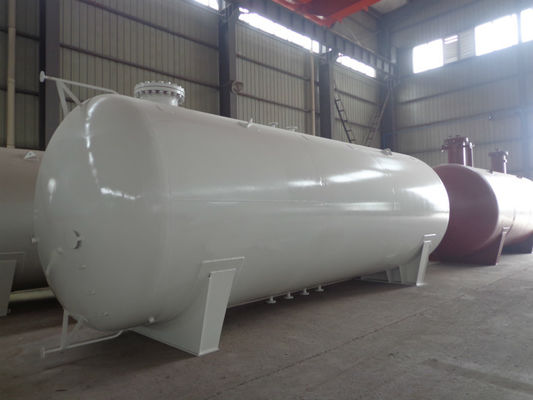

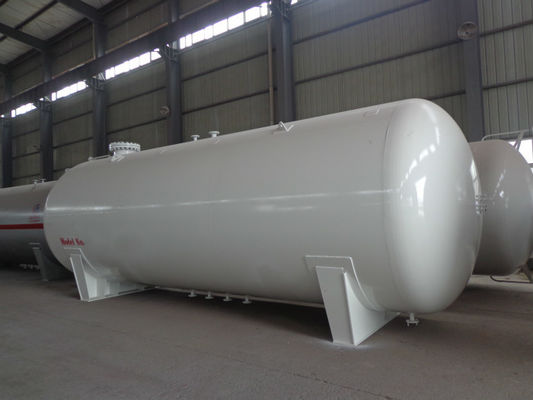

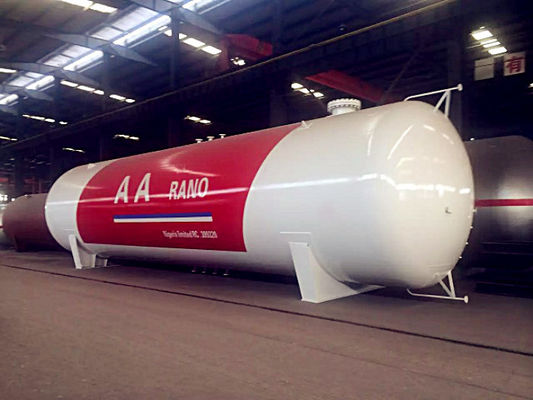

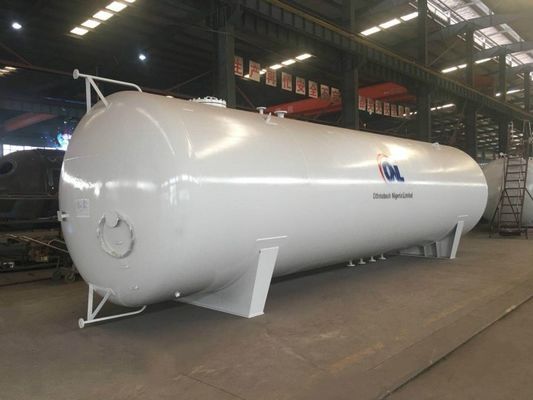

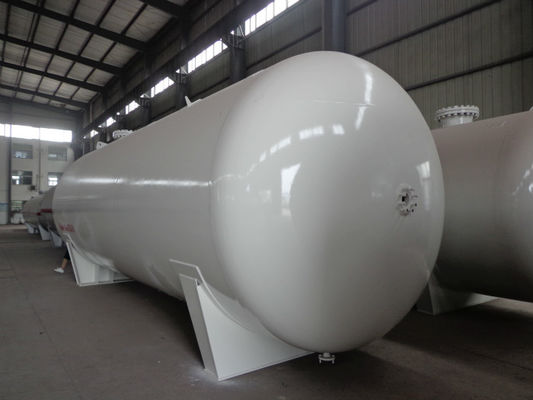

60CBM Liquid Propane Ammonia Butane Gas Bullet Storage Tank For Gas Station Installation

Duży Obraz : 60CBM Liquid Propane Ammonia Butane Gas Bullet Storage Tank For Gas Station Installation

Szczegóły Produktu:

Miejsce pochodzenia:	SUIZHOU, CHINY
Nazwa handlowa:	CLW
Orzecznictwo:	ASME,CCC,SGS,BV
Numer modelu:	CLW9521BPH

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagie opakowanie, statek masowy, rolka
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Cel zbiornika:	Przechowywanie ciekłego propanu/amoniaku/butanu na stacji benzynowej	Materiał cysterny:	Q345R, 16MnDR, Q370R, SA516Gr70, SA517 itp.
Rozmiar całkowity (długość x szerokość x wysokość):	1096227283318 (mm)	Średnica zbiornika:	DN2700mm itp.
Grubość zbiornika:	Skorupa 14mm, główka 16mm.	Opcje objętości zbiornika:	5 cbm-200 cbm; Zwykle 50 m3, 60 m3, 80 m3, 100 m3, 120 m3 itp
Opcje pojemności zbiornika:	2ton-100ton; Zwykle 20 ton, 30 ton, 40 ton, 50 ton, 60 ton itp.	Presja projektowa:	1,71Mpa/17,1bara, 1,77Mpa/17,7bara, 1,61Mpa/16,1bara
Temperatura projektu:	-20 ℃ ~ 50 ℃	Dodatek korozji:	1 mm
Kolor:	Zgodnie z żądaniem klienta	Czas na całe życie:	15 lat
Podkreślić:	transporting large propane tanks , large lpg storage tanks

60CBM LPG Storage Tank

Product Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc.
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

Product Specification

60 CBM LPG Tank Specifications
Volume of Tank		60 CBM
Filling Weight		33060 kg
Tank Weight		12750 kg
Thickness of Shell (mm)		14 mm
Thickness of Head (mm)		16 mm
Tank Diameter		2700 mm
Overall Size (length x width x height)		1096227283318(mm)
Material of Tank		Carbon Steel Q345R
Design Pressure		1.77 MPa
Hydraulic Test Pressure		2.22 Mpa
Design Temperature		-20℃~50℃
Heat Treatment		Bulk
Corrosion Allowance		1 mm
Medium Density		580 kg/m³
Vapor Outlet		DN50
Gas Outlet		DN50
Life Time		15 years
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Standard Accessories of LPG Tank
Model	Item		Qty	Junction Surface
A42F-25-100	Safety Valve DN100		1	RF
J41N-2.5-50	Stop Valve DN50		6	RF
J41N-2.5-25	Stop Valve DN25		2	RF
J41N-2.5-100	Stop Valve DN100		1	RF
J24W-320-DN6	J24W Needle Valve M20*1.5		1	/
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5		1	RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa		1	/
WTQ-280	Thermometer M33*2 2.5 degree		1	-40℃~60℃

We supply customized drawing for every storage tank
60CBM Liquid Propane Ammonia Butane Gas Bullet Storage Tank For Gas Station Installation 0

Nozzle data
Characters	Size	Pressure(MPa)	Connect	Junction surface	Purpose
a	DN50	25	HG20592-WN	RF	Drain outlet
b	DN50	25	HG20592-WN	RF	Liquid phase outlet
c1-2	DN50	25	HG20592-WN	RF	Gaseous phase balanced outlet
d	DN50	25	HG20592-WN	RF	Liquid inlet
e	M33*2			Screw-thread	Thermometer connection
f1-2	DN25	25	HG20592-WN	RF	Lever gauge connection
g	M20*1.5			Screw-thread	Pressure Gage
h	DN100	25	HG20592-WN	RF	Safety valve connection
i	DN50	25	HG20592-WN	RF	Emptying mouth
j	DN450	25	HG20592-WN	FM	Manhole

Structure Diagram of LPG Storage Tank
60CBM Liquid Propane Ammonia Butane Gas Bullet Storage Tank For Gas Station Installation 1
