18 Meter 20 Meters 22 Meters Aerial Lift Truck Overhead Working Bucket Boom Truck Hydraulic Lift

Duży Obraz : 18 Meter 20 Meters 22 Meters Aerial Lift Truck Overhead Working Bucket Boom Truck Hydraulic Lift

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC, ISO, SGS, BV
Numer modelu:	CLW5070BPG

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Naga paczka z woskiem
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Typ:	Wózek podnośnikowy typu teleskopowego	Pojemność kubełka:	200 kg
Rozmiar wiadra:	1000x700x1250mm	Typ ramienia roboczego:	typ H
Maksymalna wysokość robocza:	18 metrów ~ 22 metry	Maksymalny zasięg działania:	8 metrów ~ 9 metrów
Marka podwozia:	Dongfeng, ISUZU itp	Marka silnika:	ISUZU, Cummins
Gwarancja:	1 rok
Podkreślić:	aerial platform truck , aerial work platform truck

Product Description

18meter High Altitude Working Vehicle 22meter Telescopic Type 18meter 20meter Aerial Platform Truck

Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
Full Computer Control System with Danger Waring System.
LCD Screen in Both the Bucket and Truck to Display the Working Status.
Rectangular Shape Arms to Increase the Arm Strength.
V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.

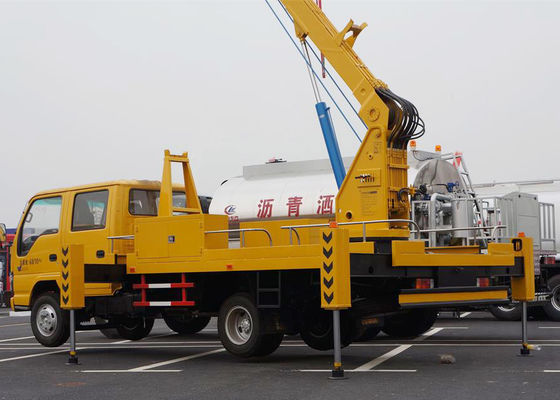

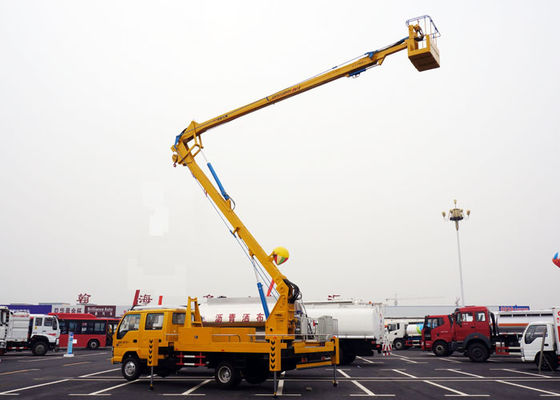

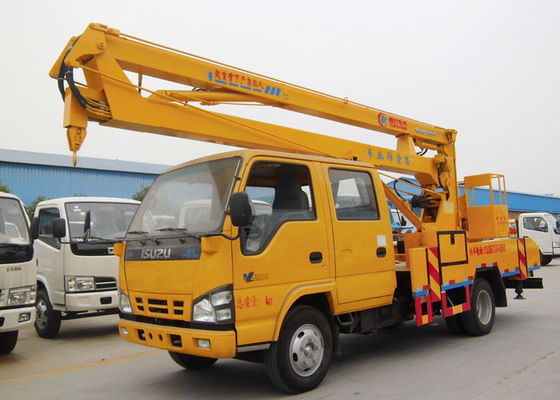

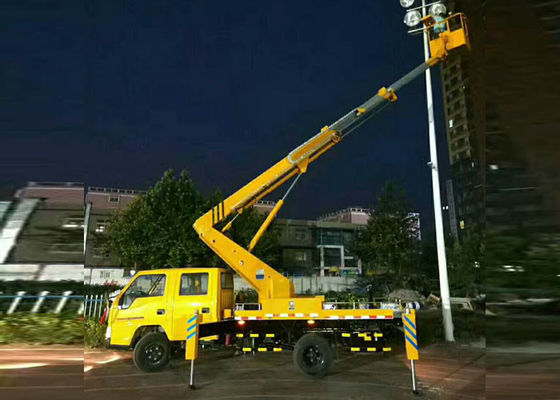

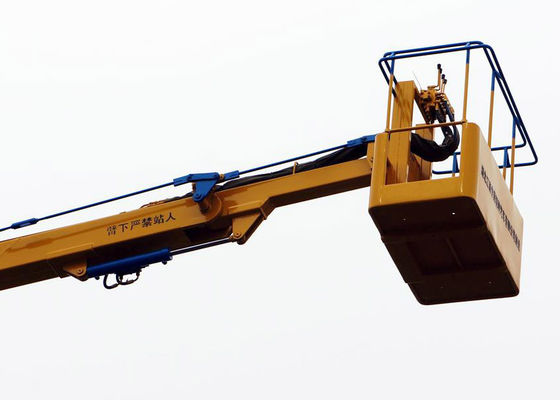

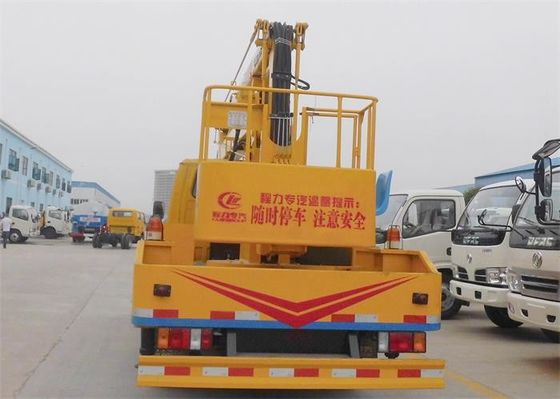

Product Show

18 Meter 20 Meters 22 Meters Aerial Lift Truck Overhead Working Bucket Boom Truck Hydraulic Lift 0

18 Meter 20 Meters 22 Meters Aerial Lift Truck Overhead Working Bucket Boom Truck Hydraulic Lift 1

18 Meter 20 Meters 22 Meters Aerial Lift Truck Overhead Working Bucket Boom Truck Hydraulic Lift 2

Product Details

18Meter Aerail Platform Truck

Overall dimensions	8450×2050×3050 mm
Maximum Height	18 meters
Maximum operation radius	7.9 meters
Gross vehicle weight	6705 kg
Mass in working order	6380 kg
Wheel base	4200 mm
F/R track base	1015/2280mm
Approach/departure angle	24/10°
Cabin	Dongfeng, Right/Left Hand Driving, with A/C.
Engine	Cummins Diesel Engine B140 33, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling
Displacement/ HP	3900 Liter / 140HP
Max speed	90 km/h
Tire specification	900R20
Traction system	4x2
Number of axles	2

Superstructure main technical Parameters
Max operation height		20m(= Working bucket’s Max height above ground+ Industry unified standard human height 1.7m)
Boom	Working booms type	Three folded arms
Boom	Boom’s max lift angle	65°
Hydraulic system	Hydraulic pump	Gear pump
	Hydraulic system pressure	≤16Mpa
	Hydraulic tank volume	80L
Working bucket	Max height above ground	18.3(m)
	Max operation range	8.7(m)
	Operation range at min operation height	3.07(m)
	Operation range at max operation height	11.5(m)
	Working bucket slewing angle	360°
	Rated load	200kg
outrigger	Outrigger Type	H type
	Numbers of outrigger	4
	Horizontal span	2930(mm)
	Longitudinal span	4500(mm)
Hook	Max lift weight	800(kg)
Hook	Max lift height	8.5(m)
Operation	Control method	Manual control
	Outrigger control	Horizontal / vertical individually adjustable
	Operating position	Working bucket, on the truck or under the truck

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted aeriel platform I can order from your company?

A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied truck mounted aeriel platform to any overseas companies?

A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
