6x4 Shacman Water Tank Truck 18CBM 20CBM Watering Truck
Product Description
1. Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman,
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :＞14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Reliable and high quality water pump
6. CO2 shield automatic welding of whole water tank
7. X-ray testing,gas leakage test and hydraulic test to avoid cold solder joint
8. Inner tank anti-corrosion layer of 120micro eposy resin and outer tank with anti-rust painting.
9. Optional for insulation layer and suitable for warm water delivery.
| Condition |
New condition/Left hand drive/6x4 |
| Chassis |
Brand |
SHACMAN |
| Curb weight(kg) |
8890 kg |
| Wheelbase(mm) |
4350+1300 mm |
| Dimensions(mm) |
10500*2500*3250 mm |
| Wheel track (front/rear) (mm) |
1940/1860 mm |
| Front/Rear overhang(mm) |
1330/2770 mm |
| Approach/Departure angle(°) |
20/10 ° |
| Max. driving speed(km/h) |
95 km/h |
| Clutch |
Reinforced diaphragm clutch |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
|
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Tire |
Quantity |
6pcs with one spare tire |
| Specifications |
9.00R20 |
| Transmission |
Manual type, 6 Forwards and 1 reverse |
| Cabin |
Single row seat, Tiltable. It can accommodate three people. With air conditioner. |
| Engine |
Brand |
Weichai power |
| Fuel type |
Diesel |
| Horsepower(HP) |
371 HP |
| Cylinder number |
6 |
| Emission standard |
Euro 3 |
| Upper |
| Water tank |
Capacity(cbm/tons) |
16.0/18.0/20.0/22.0 |
| Tank material |
Q235 carbon steel |
| Thickness(mm) |
5.0 |
| Water pump |
China local brand |
| Function |
1, Front Side Rear Sprinkling width≥14m
2, Water cannon range≥28m
|
| Remarks |
1. AM/FM radio
2. 2pcs water hose.
3. Color is optional
|

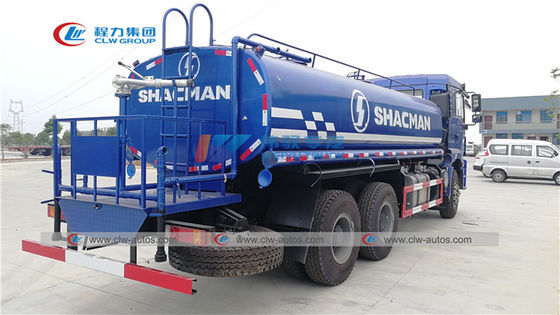

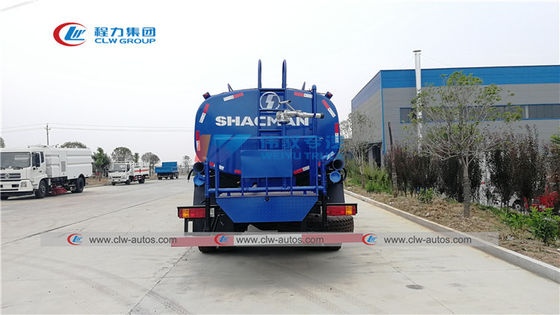

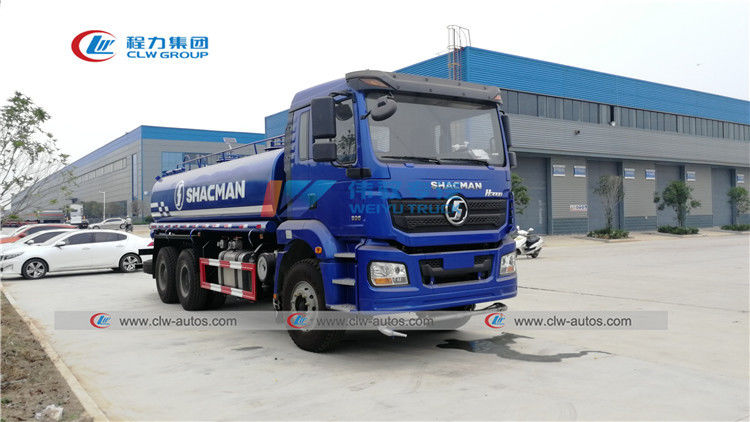

Products Show
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of water bowser I can order from your company?
A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied water bowsers to any overseas companies?
A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
