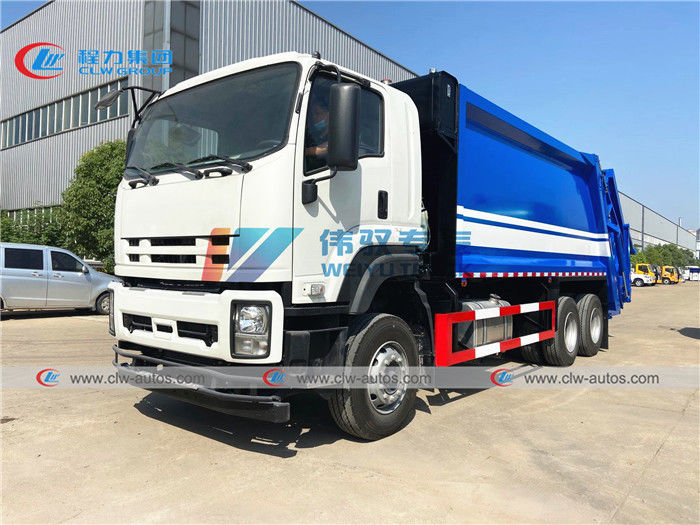

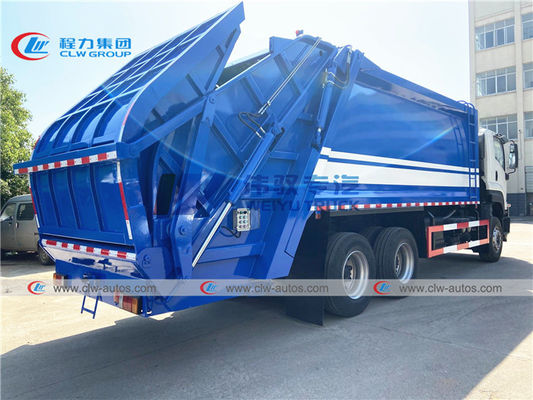

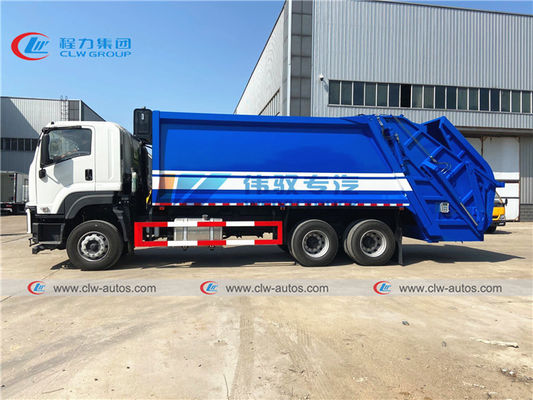

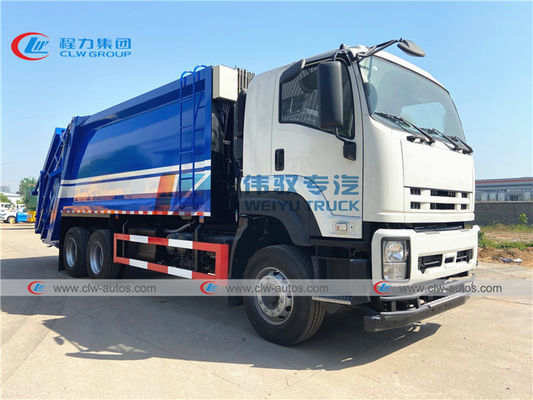

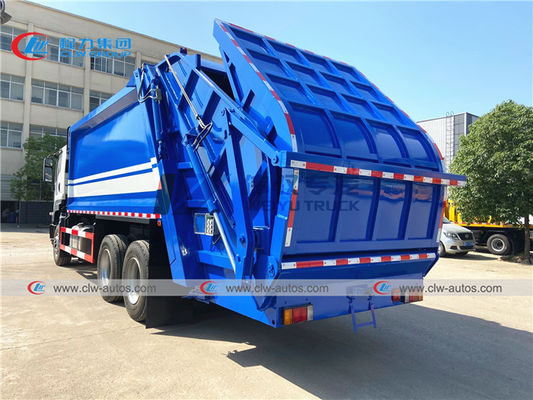

20m3 20cbm ISUZU Compressed Garbage Truck 350HP Diesel Engine 15tons Garbage Compactor Truck
The ISUZU compressed garbage truck (also called ISUZU garbage compressed truck,ISUZU garbage compactor truck,ISUZU compactor garbage truck,ISUZU waste recycling truck,garbage collect truck,ISUZU skip loader garbage truck,ISUZU waste truck) is composed of a sealed garbage box, a hydraulic system and an operating system. The compressed garbage truck box is sealed and it's self-compression and self-dumping.And hydraulic control systems are Siemens PLC electric control and manual control. The lower part of the compression box is equipped with a sewage collection box to compress the sewage in the garbage and the liquid sewage can flow into it and unload it. Garbage can be discharged, reducing secondary pollution. It adopts domestic well-known brand hydraulic cylinders, Guangdong Tianhe hydraulic oil pipes, Zhongmei Duolu valve, and Hebei national oil pump. The compressed garbage truck is with the advantages of high pressure, good sealing, convenient operation and safety.
The ISUZU compressed garbage trucks are suitable for waste management companies which using for city garbage collection & transport: the loaded garbage can be compressed and crushed to increase the density and reduce the volume, which greatly improves the efficiency of garbage collection and transportation.Our garbage truck has the characteristics of reliable quality, low failure rate, convenient maintenance and low operating cost
--The thickness of the dustbin is 5 mm, the thickness of the bottom plate is 6 mm
--The effective volume is 16~20 cubic meters.
--The arc-shaped or square box is available.
Feature
1--garbage truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity of rear loader compressed garbage truck : option for 3-20m3 compressed garbage truck
6--Steering wheel of rear loader compressed garbage truck : both left and right hand drive,meet the needs of different countries
7--Emission standard of compressed garbage truck : option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 compressed garbage truck
8--Truck chassis of compressed garbage truck : option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland...
Specification of ISUZU VC46 20M3 Compressed Garbage Truck
| Specification of Truck Chassis |
| Driving Model |
6X4 |
| Cab |
ISUZU VC46 cabin,left hand drive, single row,2~3 passengers, with air conditioner |
| Wheel Base |
4605+1300mm |
| Loading Weight |
16000kg |
| Curb Weight |
9000kg |
| Axle Loading (front/rear) |
7000/18000x2 kg |
| External Dimensions (L x W x H) |
10695×2500×3320mm |
| Overhang (front/rear) |
1015/1845mm |
| Wheel track (front/rear) |
1504 /1425mm |
| Approach/Departure angle |
24°/ 12° |
| Max. driving speed |
95 km/h |
Engine |
Model |
ISUZU engine,6UZ1-TCG40 |
| Type |
6-cylinders in a line, turbo-charging and inter-cooling |
| Horse Power |
350Hp |
| Max output power |
257kW |
| Emission standard |
Euro IV |
| Displacement |
9839ml |
| Rated Speed |
2000rpm |
| Min. Fuel consumption at full load |
≤210 g/kw.h |
| Gearbox |
Manual type,9JS119TA, 9 forwards & 1 reverse |
| Clutch |
Reinforced diaphragm clutch |
| Tire |
11.00R20, 10 pieces with 1 spare tire. |
| Garbage Truck Body |
| Tanker body material |
Quality high tensile Q345 carbon steel |
| Shape |
rectangular box, arc-shaped rear |
| Thickness |
Side 5mm, Bottom 6mm |
| Garbage Container Size |
18 CBM/20 cbm |
| Max. Loading Capacity |
70~80 Barrel (240L) |
Equipment |
- Equipped with hermetic dustbin;
- Hypres oil cylinder and Hefei Changyuan whole set of hydraulic system(multi-way valve and gear pump) and operating system.
- Automatic bi-directional compression;
- Double sewage collection boxes at rear and side of truck
- Japanese brand rear seal rubber blanket to avoid sewage leaking
- Siemens PLC flashlight integrated operation model.
- Operate in cabin and also both sides of rear truck.
- Equipped with garbage bucket flip plate
|
| Precompressor |
| Volume |
2 m3 |
| Operation control system |
Electrically hydraulic control |
| Lifting capacity |
≥800 kg |
| Working zone Lighting |
2 lamps |
| Mechanism of raising |
Two hydraulic cylinders |
Ensuring tightness |
Between the body and lifting back part in the lower part profile acid-proof
rubber is used. |
| Pressing system |
| Pressure |
16Mpa |
| Compaction ratio |
1.2:1 |
| Loading cycle |
25-30 second |
| Unloading cycle |
15-20 second |
pressing mechanism |
The giving plate and hinge related pressing plate moving on two directing
bars |
| Pressing mode |
Automatic pressing |
| Control of pressing |
Control from the external panel on the bunker |
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Designed drawings
After Sale Service
--- Overseas installation and commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
|
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
Supply only upper body without chassis. According to your chassis drawing,design function parts.
Customization
Communicate with engineer,making drawings and produce customized products.
Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts
on trucks as tank and box.
|
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty of garbage truck?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
