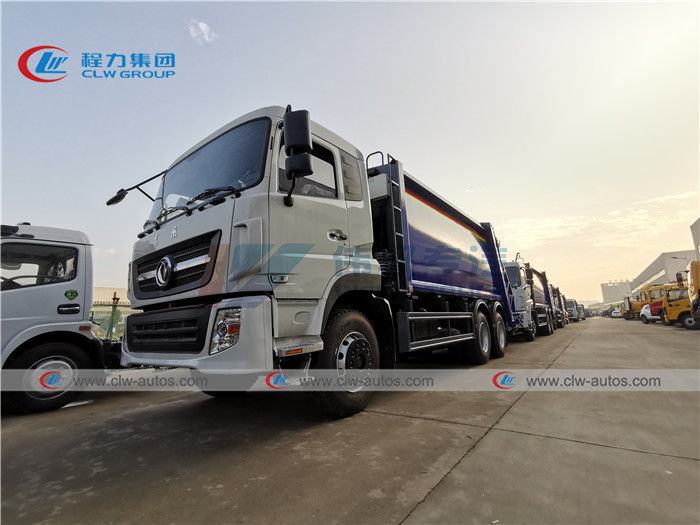

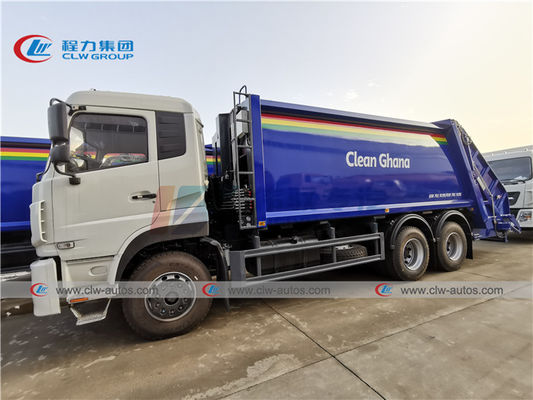

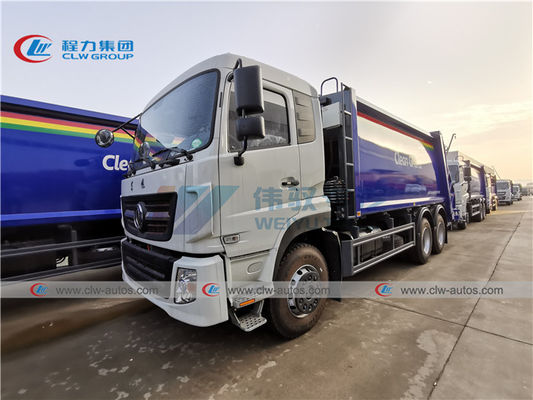

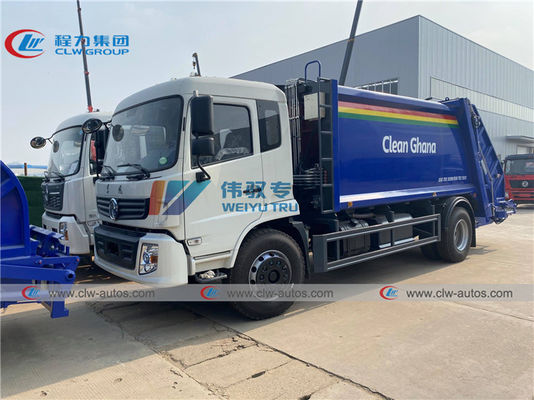

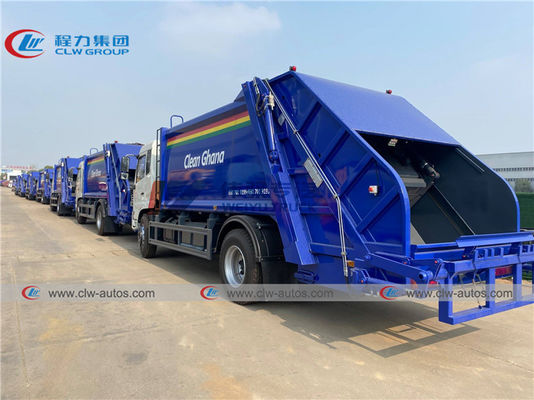

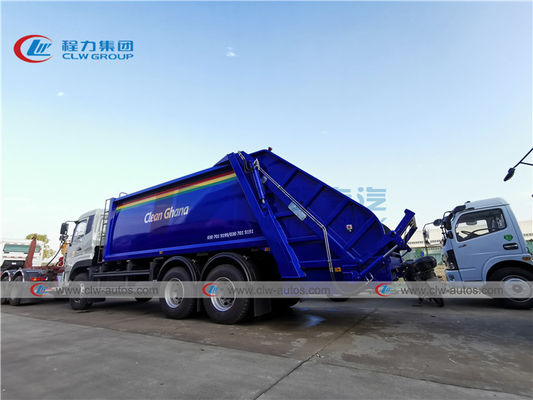

LHD Dongfeng 6X4 14tons 16t 18m3 20CBM Rear Loader Garbage Compactor Truck
The dongfeng rear loader garbage compactor truck (also called dongfeng garbage compressed truck,dongfeng garbage compactor truck,dongfeng compactor garbage truck,dongfeng waste recycling truck,garbage collect truck,dongfeng skip loader garbage truck,howo waste truck) is composed of a sealed garbage box, a hydraulic system and an operating system. The compressed garbage truck box is sealed and it's self-compression and self-dumping.And hydraulic control systems are Siemens PLC electric control and manual control. The lower part of the compression box is equipped with a sewage collection box to compress the sewage in the garbage and the liquid sewage can flow into it and unload it. Garbage can be discharged, reducing secondary pollution. It adopts domestic well-known brand hydraulic cylinders, Guangdong Tianhe hydraulic oil pipes, Zhongmei Duolu valve, and Hebei national oil pump. The compressed garbage truck is with the advantages of high pressure, good sealing, convenient operation and safety.
The dongfeng rear loader garbage compactor trucks are suitable for waste management companies which using for city garbage collection & transport: the loaded garbage can be compressed and crushed to increase the density and reduce the volume, which greatly improves the efficiency of garbage collection and transportation.Our garbage truck has the characteristics of reliable quality, low failure rate, convenient maintenance and low operating cost.
--The thickness of the dustbin is 5 mm, the thickness of the bottom plate is 6 mm
--The effective volume is 16~20 cubic meters.
--The arc-shaped or square box is available.
Feature
1--garbage truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity of rear loader garbage compactor truck : option for 3-20m3 compressed garbage truck
6--Steering wheel of rear loader garbage compactor truck : both left and right hand drive,meet the needs of different countries
7--Emission standard of rear loader garbage compactor truck : option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 compressed garbage truck
8--Truck chassis of rear loader garbage compactor truck : option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland...
Specification of dongfeng 18m3 rear loader garbage compactor truck
| Vehicle parameters: |
| Overall dimensions (length * width * height) |
10070,10120,10150,10320*2500*3450 |
| Total mass |
25000Kg |
| Rated contained mass |
9065,9000,9465,9400Kg |
| Curing quality |
15805,15405Kg |
| Wheelbase |
4350+1350mm |
| Front overhang / rear overhang |
1500/3120mm |
| Approach / departure angle |
18/10° |
| Chassis parameters |
| Chassis type |
Dongfeng |
| Cab color |
White |
| Drive form |
6*4 |
| Wheelbase |
4350+1350mm |
| engine model |
ISD245 |
| Engine power (kw) |
180 |
| Emission Standards |
Euro III/IV/V |
| front axle and rear axle |
7T/10T |
| Remark |
With air conditioning |
| Top loading parameters: |
| Effective volume of the box |
18m³ |
| Box shape |
arc |
| Box material |
Bottom 5 sides 4 |
| Compression ratio |
≥2.5 |
| Loading cycle once |
≤36s |
| Pushing garbage time |
≤35s |
| control method |
automatic / manual |
| Hydraulic system pressure |
18MPa |
| Multiple way reversing valve |
Imported from Italy |
| Hydraulic oil pump |
Hefei Changyuan (Zhonglian Heavy Industry) |
| Hydraulic cylinder |
Zoomlion supporting |
| PLC control system |
Siemens, Germany |
| Engine power control |
Fully automatic control |
| Tumbler mechanism |
Hang two 240L trash cans at the same time (Optional other types of flip frame) |
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Designed drawings
After Sale Service
--- Overseas installation and commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
|
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
Supply only upper body without chassis. According to your chassis drawing,design function parts.
Customization
Communicate with engineer,making drawings and produce customized products.
Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts
on trucks as tank and box.
|
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty of garbage truck?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
