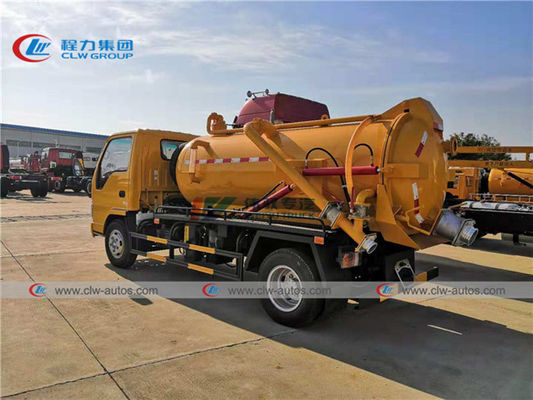

ISUZU 100P Diesel Engine 3000L 3m3 Vacuum Suction Truck

Duży Obraz : ISUZU 100P Diesel Engine 3000L 3m3 Vacuum Suction Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO, CCC
Numer modelu:	CLW5044WYXWC

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	12820 usd/unit~32850 usd/unit
Szczegóły pakowania:	Naga paczka wysłana statkiem masowym
Czas dostawy:	W ciągu 30 dni po otrzymaniu zaliczek
Zasady płatności:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Możliwość Supply:	300 jednostek / miesiąc

Kontakt

Szczegółowy opis produktu

Marka ciężarówek:	ISUZU, Dongfeng, Shacman, Sinotruk howo, CAMC, FAW odkurzacz do ścieków	model jazdy:	Wózek do czyszczenia ścieków LHD,RHD
SILNIK:	Ciężarówka do czyszczenia ścieków z silnikiem wysokoprężnym	Tworzywo:	Odkurzacz Q235 ze stali węglowej
Rozmiar cysterny:	Ciężarówka do czyszczenia ścieków 2cbm 3cbm 4cbm	Pojemność ładowania:	2tony 3tony 4tony 5tonowy odkurzacz do czyszczenia ścieków
Grubość cysterny:	Wózek do czyszczenia ścieków o średnicy 5 mm lub 6 mm	Pompa próżniowa:	Chińska pompa, BP, Jurop, Mono Kaiser do odkurzaczy do ścieków
Głębokość ssania:	7-metrowy odkurzacz do czyszczenia ścieków	Odległość ssania:	Ciężarówka do czyszczenia ścieków o długości 50 ~ 100 metrów
Średni:	Odkurzacz do ścieków/szlamu/septycznego odkurzacza do ścieków
Podkreślić:	3m3 Vacuum Suction Truck , 3000L Vacuum Suction Truck , ISUZU 100P sewage tanker truck

ISUZU 100P 3000L 3m3 Vacuum Cleaner Sewage Drainage Suction Tanker Truck

Description--vacuum sewage cleaner truck (also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,Sewer Scavenger) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
vacuum sewage cleaner truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Structure of vacuum sewage cleaner truck
The vacuum sewage cleaner truck is mainly composed of chassis + tank body + sandwich power take-off + high pressure pump + high pressure tee + hose reel + high pressure pipe + nozzle + hydraulic system + vacuum pump + vacuum system + hydraulic lifting mechanism.

High-pressure part: The high-pressure pump is mainly driven by a full-power power take-off to produce high-pressure jet water and various blockages in the pipeline are flushed through the pressure of the reflected water of the high-pressure nozzle to achieve the purpose of dredging and cleaning the pipeline.

Dirt sucking part: The vacuum pump is driven by the side-mounted power take-off to extract the air in the tank to form a vacuum inside the tank and suck the dirt into the tank through atmospheric pressure!

Feature

--vacuum sewage cleaner truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;--Japanese ISUZU truck chassis;

Advantage

1. Adequate vacuum degree of pollution absorption;

2. Set secondary protection for the vacuum pump to prevent pollution from immerging the pump body;

3. The vacuum pump is driven by manual operation, easy to clutch and close;

4. Hydraulic oil pump and vacuum pump work synchronously and work reliably;

5. Oil pressure turning tank and full discharge of mud;

6. Beautiful appearance, simple operation and good performance.

Reference picture

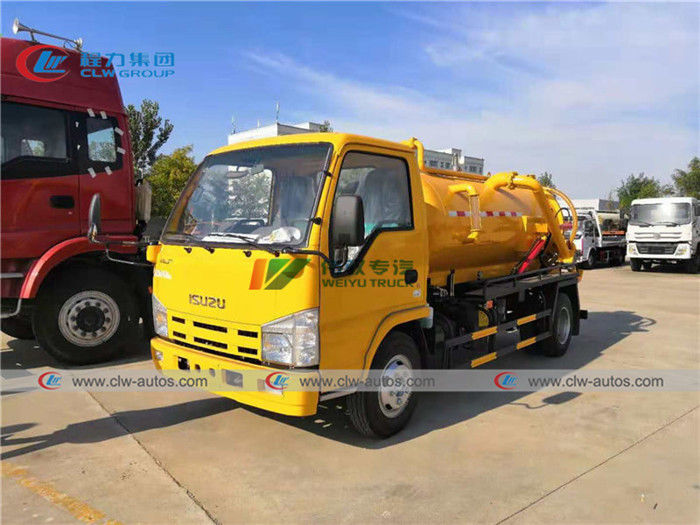

ISUZU 100P Diesel Engine 3000L 3m3 Vacuum Suction Truck 0

Specification

Chassis parameters
Cabin	ISUZU 100P cabin/Left hand drive/4x2
	Loading weight(kg)		3800kg
	Wheelbase(mm)		3360 mm
	Dimensions(mm)		590019002400mm
	Front/Rear Axle loading(kg)		2000/4000 kg
	Wheel track (front/rear) (mm)		1770/1586 mm
	Front/Rear overhang(mm)		1210/1490 mm
	Approach/Departure angle(°)		24/12 °
	Max. driving speed(km/h)		100 km/h
	Clutch		Reinforced diaphragm clutch
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	7.00R16
Gear box	Manual type,ISUZU MSB transmission/ 5 forward & 1 reverse
Engine	Brand		ISUZU engine
	Model		4KH1CN5LS
	Fuel type		Diesel
	Displacement(ml)		2999ml
	Power(kw)		72 kw
	Horsepower(HP)		98 HP
	Max. Torque(N.m)		220
	Emission standard		Euro V
Sewage Suction Tanker
1) Sewage tank and water tank material are carbon steel, tanker body thickness 5mm, tank head thickness 6mm. 2)Equipped with 60m high pressure tube,diameter 19mm. 3) Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer. 4) Equipped with looking sludge window,self flow exit, and 1pcs sludge suction tube length 7m. 5)Vacuum water pump Model : SK-6 Type : water circulation pump Vertical suction: 9m Flow : 1.5m3/min

ITALY Jurop vacuum pump for ISUZU sewage vacuum truck

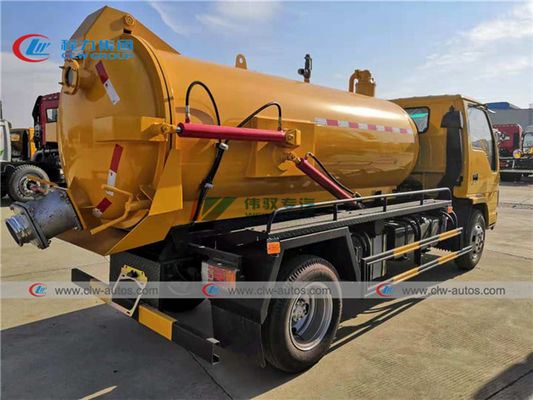

ISUZU 100P Diesel Engine 3000L 3m3 Vacuum Suction Truck 3

Chinse weilong vacuum pump for ISUZU sewage vacuum truck

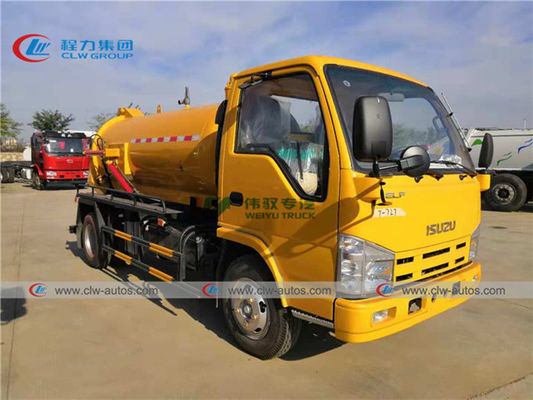

ISUZU 100P Diesel Engine 3000L 3m3 Vacuum Suction Truck 4
