50cbm Liquid Propane Gas Storage Tank For Liquefied Petroleum Gas Station

Duży Obraz : 50cbm Liquid Propane Gas Storage Tank For Liquefied Petroleum Gas Station

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ASME,CCC,SGS,BV
Numer modelu:	CLW9521BPH

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagie opakowanie, statek masowy, rolka
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Cel zbiornika:	Przechowywanie ciekłego propanu/amoniaku/butanu na stacji benzynowej	Materiał cysterny:	Q345R, 16MnDR, Q370R, SA516Gr70, SA517 itp.
Rozmiar całkowity (długość x szerokość x wysokość):	834227283318(mm)	Średnica zbiornika:	DN2700mm itp.
Grubość zbiornika:	Skorupa 14mm, główka 16mm.	Opcje objętości zbiornika:	5 cbm-200 cbm; Zwykle 50 m3, 60 m3, 80 m3, 100 m3, 120 m3 itp
Opcje pojemności zbiornika:	2ton-100ton; Zwykle 20 ton, 30 ton, 40 ton, 50 ton, 60 ton itp.	Presja projektowa:	1,71Mpa/17,1bara, 1,77Mpa/17,7bara, 1,61Mpa/16,1bara
Temperatura projektu:	-20 ℃ ~ 50 ℃	Dodatek korozji:	1 mm
Kolor:	Zgodnie z żądaniem klienta	Czas na całe życie:	15 lat
Podkreślić:	Liquid Propane Gas Storage Tank , 50cbm Gas Storage Tank , 50cbm lpg bulk storage tank

50,000Liters LPG Tanker 50m3 50cbm Liquid Propane Gas Storage Tanker 25tons Bulk Liquefied Petroleum Gas Station

Product Description

1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg gas plant tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional for lpg gas plant equipments as follows,
lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

Product Specification

Item	Name		Unit	Parameter
1	Product model		/	LPG storage tank
2	Vessel type		/	On the ground
3	Tank Volume		m3	50
4	Filling medium		/	LPG / propane gas
5	Filling coefficient		Kg/ m³	420
6	Tanker material		/	Q345R
7	Overall dimension		mm	918227283318
8	Tank inner diameter		mm	2700
9	Thickness	End plates	mm	16
		Shell body	mm	14
10	Curb weight		kg	10640
11	Filling medium weight		kg	19950
12	Corrosion allowance		mm	1
13	design pressure		Mpa	1.71
14	Hydrostatic test pressure		MPa	2.22
15	Designing temperature		°C	-19~50
16	Produce Manufacturing standards		/	GB150-20
17	Certification		/	ISO 9001-2015
Production process control			1. Steel Plate Cutting &Rolling
			2. Tanker Body Welding
			3. X-ray Welding Seam Detection
			4. Whole Tanker Heat Treatment
			5. Rust, Sand Blasting, Puttying
			6. Water Pressure Test
			7. Painting: primer, finish, lacquer

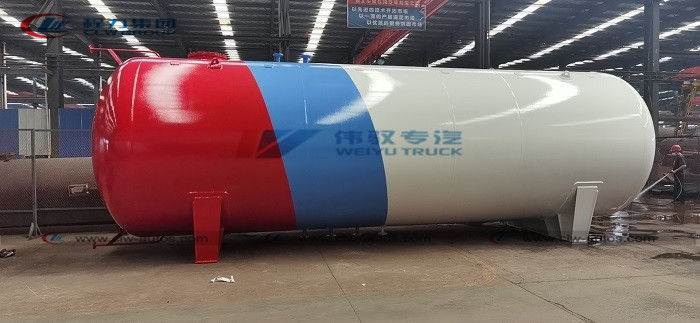

Reference Photos

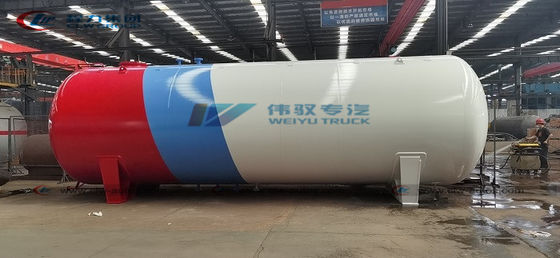

50cbm Liquid Propane Gas Storage Tank For Liquefied Petroleum Gas Station 0

50cbm Liquid Propane Gas Storage Tank For Liquefied Petroleum Gas Station 1

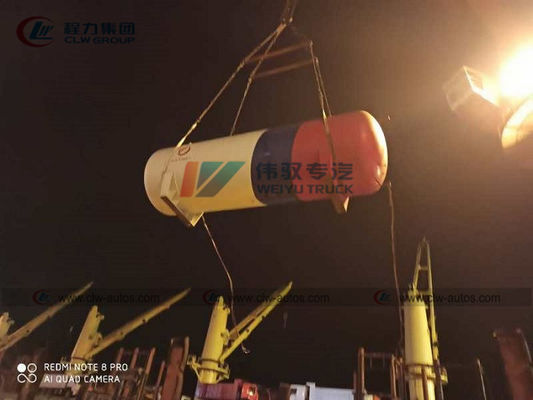

50cbm Liquid Propane Gas Storage Tank For Liquefied Petroleum Gas Station 2

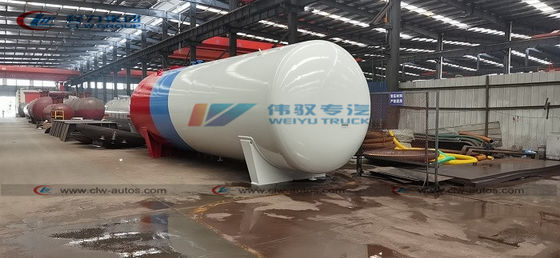

50cbm Liquid Propane Gas Storage Tank For Liquefied Petroleum Gas Station 3

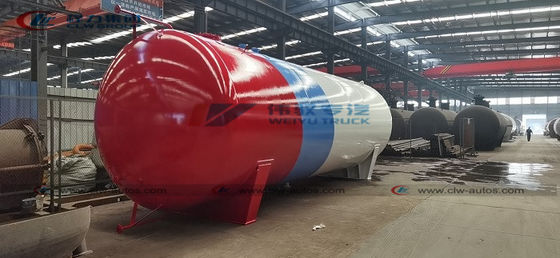

50cbm Liquid Propane Gas Storage Tank For Liquefied Petroleum Gas Station 4

We supply customized drawing for every storage tank

Structure Diagram of LPG Storage Tank
50cbm Liquid Propane Gas Storage Tank For Liquefied Petroleum Gas Station 6

We supply package solution for lpg station building as follows

Production Process

Our Service
1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.

FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
