--underlift Tow Truck(also called underlift road wrecker,underlift wrecker truck,underlift towing truck,underlift recovery truck,towing service truck,breakdown truck) is used formoving disable,improperly parked or breakdown vehicles or car.
-- Tow truck can be divided into various types as follows,
1) According to the categories, the tow trucks are mainly divided into: flatbed tow truck,wrecker tow truck,heavy duty tow truck
2) According to driving model:4X2,4X4,6X4,6X6,8X4,10X4 underlift tow truck;
3) According to towing capacity,there are 3tons,4tons,6tons,8tons,16tons,25tons,30tons,50tons and 60tons nderlift tow truck;
4) According to truck chassis brand,there are dongfeng,faw,isuzu,sinotruk,iveco,shacman,camc nderlift tow truck
--Relable ISUZU truck chassis;
--Adopting American wrecker design and manufacturing technology.
--Key components using the finite element stress analysis (CAE technology)
--Adopting high quality high-strength steel for important components
--Hydraulic technology adopts two filtration systems to ensure hydraulic clean.
--The key hydraulic lines seals imported from Germany.
--All cylinders directly installed locking valve, the middle without connecting hose (to prevent bursting), increases safety consumption of gas leads out by protection valve, ensuring the safety of vehicle braking systems.

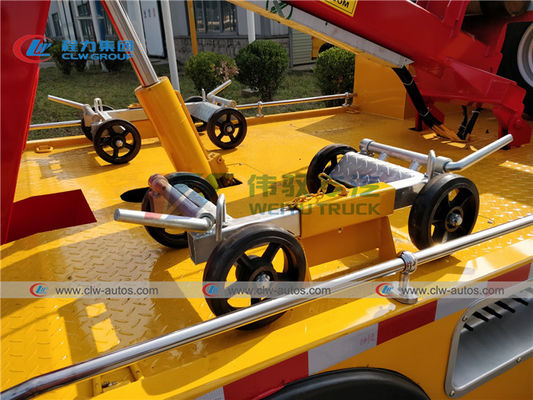

--Equipped with various fork lifts (including leaf spring forks).
--High and low fork combined with various fork lifts.

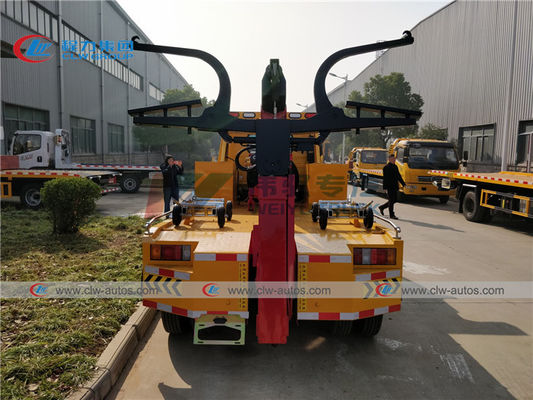

--Corbel can be tilted upward with a load, also can be adjusted by the trailer hold angle.
--Rear brake with pneumatic quick connector, enabling synchronization with towed vehicle braking.
--Equipped with trailer towing disk, remote control is optional.

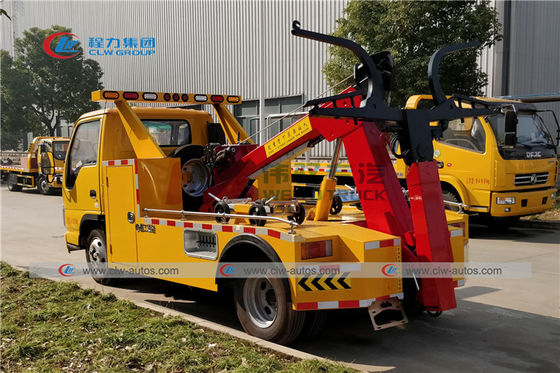

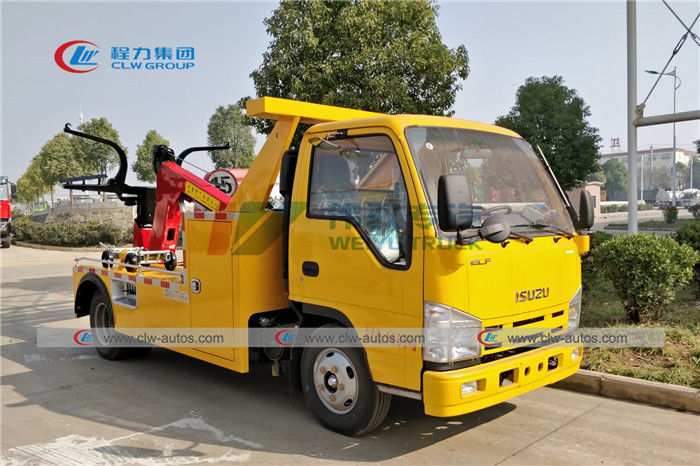

Technical Spec. of ISUZU 3tons underlift tow truck
ISUZU 3000kg underlift tow truck
Vehicle brand
CLW
Chassis brand
ISUZU
Overall dimensions
5500×2050×2500(mm)
Wheel base
3360(mm)
Gross weight
4495(Kg)
Cube weight
4100(Kg)
Front/Rear axles loading capacity
1855/2640
Tire
7.00R16LT 8PR/6+1PCS
Gearbox
5-speed forward and reverse gear
Steering
power steering, hydraulic steering with power assistance
