HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Dom ProduktyCiężarówka do sprężania śmieci

Sinotruk Howo 4X2 300HP Garbage Compactor Truck

Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Im Online Czat teraz

Sinotruk Howo 4X2 300HP Garbage Compactor Truck

Sinotruk Howo 4X2 300HP Garbage Compactor Truck
Sinotruk Howo 4X2 300HP Garbage Compactor Truck Sinotruk Howo 4X2 300HP Garbage Compactor Truck Sinotruk Howo 4X2 300HP Garbage Compactor Truck Sinotruk Howo 4X2 300HP Garbage Compactor Truck Sinotruk Howo 4X2 300HP Garbage Compactor Truck

Duży Obraz :  Sinotruk Howo 4X2 300HP Garbage Compactor Truck

Szczegóły Produktu:

Miejsce pochodzenia: Suizhou, Chiny
Nazwa handlowa: CLW
Orzecznictwo: CCC, ISO, BV, SGS
Numer modelu: CLW5326-1

Zapłata:

Minimalne zamówienie: 1 jednostka
Cena: USD36,000-43,000
Szczegóły pakowania: Naga paczka z woskiem
Czas dostawy: 30-35 dni
Zasady płatności: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply: 1000Units/Miesiąc
Szczegółowy opis produktu
Marka podwozia: Sinotruk Howo, Isuzu, Dongfeng, Foton, JAC itp. Współczynnik Campactingu: 0,8-0,9 tony/m3
Współczynnik kompresji: 3-4 Czas cyklu kompresji: ≤15 S
Rozładuj czas na śmieci: ≤23 s Ciśnienie hydrauliczne: 16mpa
Grubość pojemnika na śmieci: Bok 3 mm, dół 4 mm, stal węglowa-Q345A Objętość pojemnika na śmieci: 5 cbm, 8 cbm, 10 cbm, 12 cbm, 15 cbm, 18 cbm, 20 cbm itp.
Pojemność pojemnika na śmieci: 4 tony, 6 ton, 8 ton, 10 ton, 12 ton, 15 ton, 16 ton itd. Objętość zbiornika brudnej wody: 0,2 cbm
Objętość zbiornika: 0,8 CBM Sposób kontrolowania: Sterowanie ręczne i elektryczne
Logo i malowanie: Zgodnie z żądaniem klienta Gwarancja: 1 rok
Podkreślić:

300HP Garbage Compactor Truck

,

4X2 Garbage Compactor Truck

,

Sinotruk Howo Rubbish Compactor Truck

SINOTRUK HOWO 4X2 300HP Big Capacity Compressed Rubbish Vehicle Garbage Compactor Truck



1--Garbage compressor Truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity of Garbage compressor Truck : option for 3-20m3 garbage truck.
6--Steering wheel of Garbage compressor Truck : both left and right hand drive,meet the needs of different countries
7--Emission standard of Garbage compressor Truck : option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage truck
8--Truck chassis of Garbage compressor Truck: option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland...


Specifications of howo Garbage compressor Truck

Sinotruk Howo Garbage compressor Truck
Overall Dimension 8,640×2,496×3,370mm Gross Vehicle Weight 16,000kg
Curb Weight 11,700 kg Loading Weight 4,170 kg
Wheel Base 4,600 mm Front / Rear Axle 6000 kg / 10000kg
Cabin Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine Weichai WD615.97E
Engine horsepower 300HP, EURO III
Max Driving Speed 93 km/h
Gear Box 10 Forward Gear, 2 Reverse Gear,
Tire 12.00R20 16PR (6 pieces with one spare)
Garbage Bin Capacity 18-20CBM
Material 4mm Carbon Steel for Garbage Bin Body
Design Whole unit with Leakage Proof Design
Ways of Loading Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio 1/3 - 1/4
Control System One control Panel on the back, One Control system in back of Cabin
Dispensing System 1. Equipped with air-tight dustbin, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all handled by 1 person
3. Sewage water collection tank to avoid any pollution during handling.
4. Large Pressure, Good Leakage Proof, Convenient Operation
Dependable Security
5. Electrical Control Panel for compacting system.
6. Cycling time: 25~30s
Remarks 1. Color is optional
2. Customized LOGO painting as per customer request

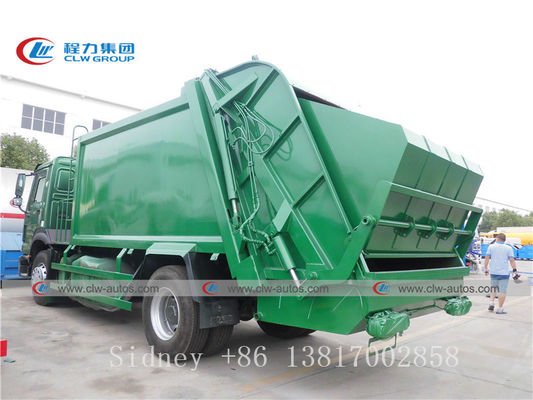

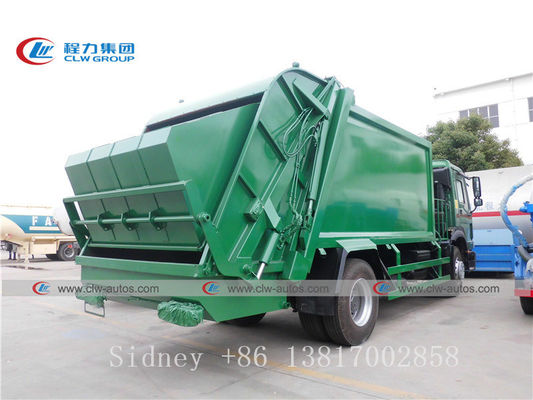

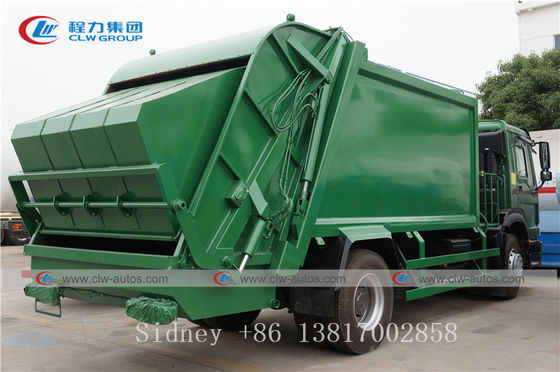

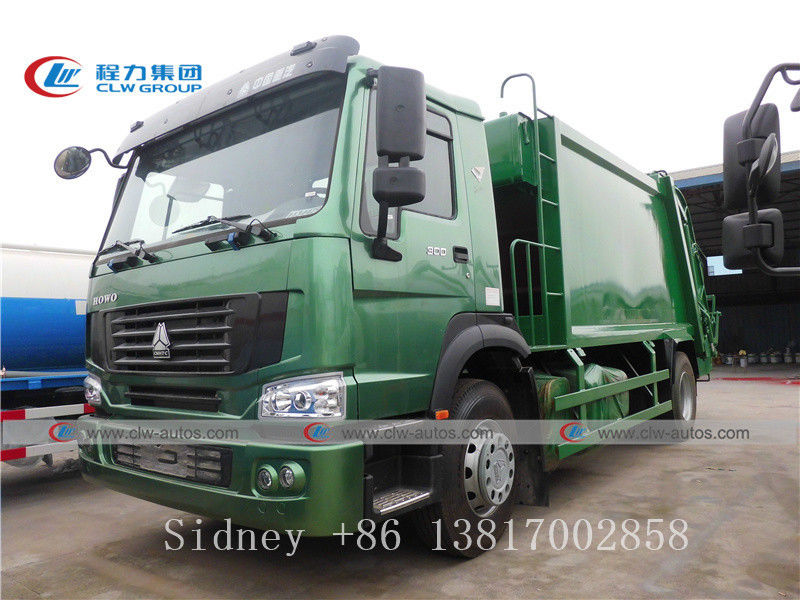

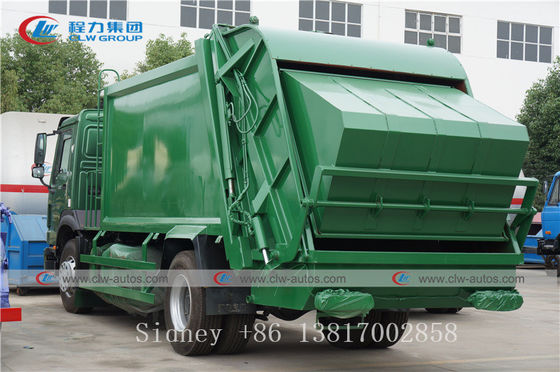

Pictures of howo Garbage compressor Truck
Sinotruk Howo 4X2 300HP Garbage Compactor Truck 0Sinotruk Howo 4X2 300HP Garbage Compactor Truck 1Sinotruk Howo 4X2 300HP Garbage Compactor Truck 2


Different designs of Garbage compressor Truck
Sinotruk Howo 4X2 300HP Garbage Compactor Truck 3
Truck Details of garbage compressor truck
Sinotruk Howo 4X2 300HP Garbage Compactor Truck 4
Import parts of garbage compressor truck
Sinotruk Howo 4X2 300HP Garbage Compactor Truck 5

Working Show of garbage compressor truck

Sinotruk Howo 4X2 300HP Garbage Compactor Truck 6

​​Structure Diagram



Sinotruk Howo 4X2 300HP Garbage Compactor Truck 7

Sinotruk Howo 4X2 300HP Garbage Compactor Truck 8

Sinotruk Howo 4X2 300HP Garbage Compactor Truck 9



Sales Service

1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ

Q1: What kinds of compactor garbage truck I can order from your company?

A: We can supply different size compactor garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.



Q2: What is your production standard of compactor garbage truck products?

A: China GB local standard.



Q3: Can we adopts International brand fuel pump for compactor garbage truck?

A: Sure, we already cooperated with many international brand supplier.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
