Sinotruk Howo 6X6 Full Wheel Drive 10000 liters 12000L Vacuum Sludge Tanker Truck for UN Description --Vacuum sludge truck(also called sludge truck,sewer cleaning truck, vacuum septic truck,septic cleaner truck,high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, septic,fecal,sewer,sewage to avoid secondary pollution. Vacuum sludge truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials. Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.
Feature - tanker material optional for carbon steel or stainless steel 304; --Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm; --Sludge Tanker Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP 13500,Jurop,Keiser Moro imported brand; --Suction speed less than 10min and and discharge speed less than 8 min; --horizontal suction distance: within 80 meters; --Vertical suction depth:within 9 meters;
---Quality chassis , perfect performance ---Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.
---Nice shape , rational structure
---Massive, durable ,perfect performance
---Prolonged service time

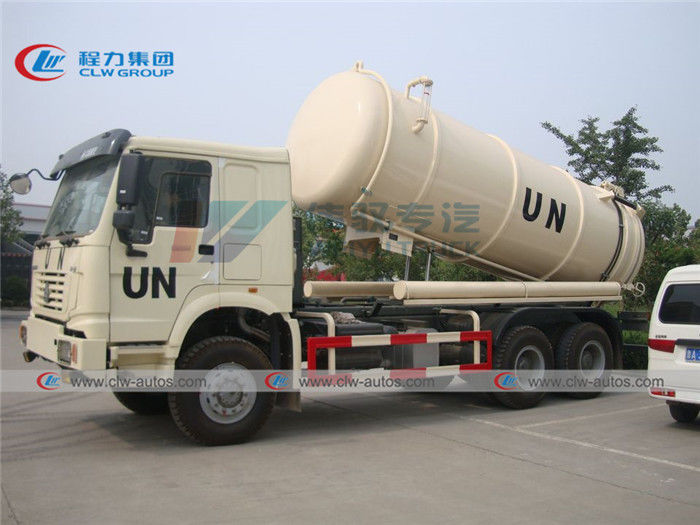

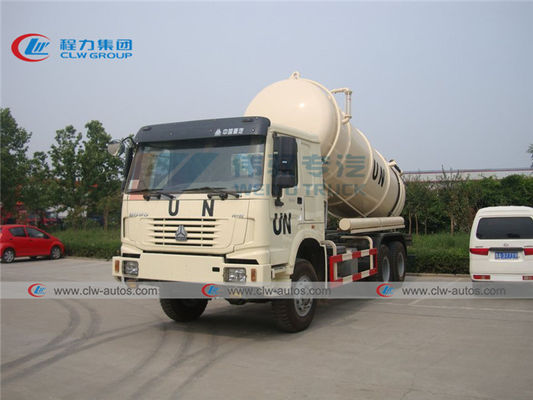

Reference picture front view of howo 6X6 vacuum sludge truck

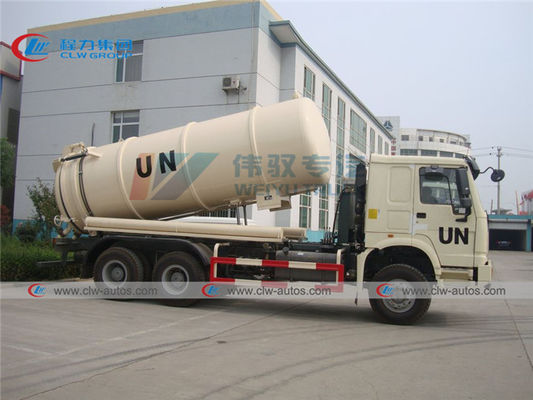

side view of howo 6X6 vacuum sewer truck
Howo 6X6 high pressure sewer jetting truck for Brunei
Italy BP/Battioni Pagani vacuum pump
Vacuum sludge tank is optional for another design with water tanker and high pressure flushing and washing device for high pressure septic cleaning service as follows,
Specification
Item No. Parameters
Overall Dimension 8600x2500x3530 mm
Gross Vehicle Weight 25000 kg
Curb Weight 12500 kg
Loading Weight 12500 Kg
Wheel Base 3800+1400mm
Front/rear Tread 1430/2200 mm
Approach/Departure Angle 19/20 degree
Front Axle HF7 Drum, 7 Tons
Rear Axle ST16, 16 tons, Ratio 5.73
Engine SINO Truck Diesel WD615.47,
Engine horsepower 371 HP Euro II
Displacement 9.726 L(Diesel)
Full loading Fuel Maximum 193 g/kW.h
Max Driving Speed 80 km/h
Gear Box HW19710 Transmission,10 Forward Gear & 2 Reverse Gear
Steering Gear ZF8118, hydraulic steering with power assistance
Power Divider #2000
Cabin HW76 Standard Cabin, RHD, 1 Sleeper, Air Conditioner, 3 Passengers,
Fuel Tank 400 Liters
Tire 12.00R20 (10 pieces with one spare)
Tank Capacity 10m3/12m3/15m3
Tank Material Material: Q235 high tension steel, 6mm Tank body and End Plate,
Vacuum Suction Pump Italian Made Jurop Pump PN84D or Chinese yifeng water ring vacuum pump, 4" diameter Rubber tube in 6 meters long, Vertical Suction Range 6 meters under ground level, Full Tank Suction time about 9 minutes, Vacuum Pressure -0.092Mpa
Structure of a vacuum sludge truck
Why do you choose us for vacuum sludge truck?
1.well experienced truck production company to offer high quality and competitive-price vacuum sewage sludge truck to our worldwide customers. 3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
5.Timely shipment
6. Overseas training and after sales service is available
