6 Ton Dongfeng Hydraulic Pull On Arm Hook Garbage Delivery Truck with Auto Tipping
Product Description
Hook lift System Structure
- Hydraulic system: Oil tank and a filter system, an oil pump, a multi-way reversing valve, a one-way throttle valve, an oil cylinder, and an oil pipe.
- Power of system: PTO take poer from the engine, then supplying to the oil pump.
- Oil Gear Pump: delivery hydraulic oil through the oil suction filter, and the multi-way valve supplies oil. When the multi-way valve of the hook arm garbage truck is working, the arm cylinder and the locking cylinder are activated.
- When the hydraulic cylinder is not working, the hydraulic oil passes through the multi-way valve and returns to the oil tank directly.
- The advantage is that one vehicle can be equipped with multiple buckets, and one vehicle can maintain the operation of several garbage collection stations, with high efficiency, and the box body is a sealed design, which will not cause secondary pollution
Hook arm upper mounting structure
1. Hydraulic system
2. High-strength alloy steel one-piece main hook arm
3. Reinforced hook
4. Reinforced sub-beam
5. Cast steel tailstock wheel
6. Explosion-proof oil pipe
7. Hydraulic cylinder
8. Locking mechanism
9. Electric control and hydraulic operating device
Others: 5000kg lifting capacity, can be equipped with 5-30 trash bins, fixed-point placement, circular transportation.
Hydraulically complete loading, unloading, locking, self-unloading and other operations.
| Dongfeng D7 Furuika Hooklift Garbage Truck |
| Type |
Hooklift |
Overall Size |
CLW5090ZXX6 |
| Overall Size |
5980x2320x2390 |
Traction |
4x2 |
| Box Volume |
8 cubic meters |
Lifting Capacity |
5000kg |
| Vehicle Total Weight |
9100kg |
Max Speed |
103 km/h |
| Tare Weight |
4000 kg |
Wheel Base |
3800 |
| Loading Weight |
5200kg |
Tire |
7.50R16 |
| Passenger Allowed |
3 person |
Tire No. |
6 |
| ABS |
Yes |
Fuel |
16.5, 17.2 |
| Leaf Spring |
8/10+7, 12/12+9 |
Fuel Type |
Diesel |
| Emission Standard |
Euro 2 ~ Euro 6 |
Engine |
Yuchai |
| Power |
140HP, 170HP |
Displacement |
2360, 2977, 2968 |

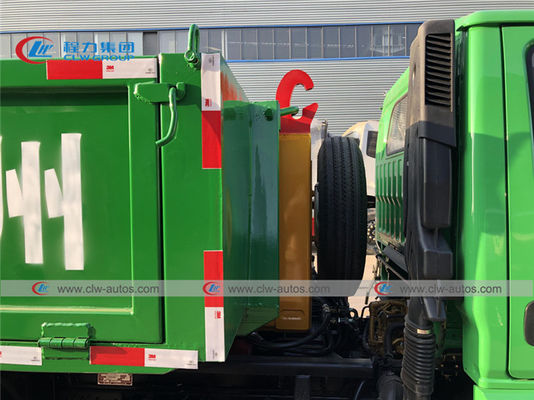

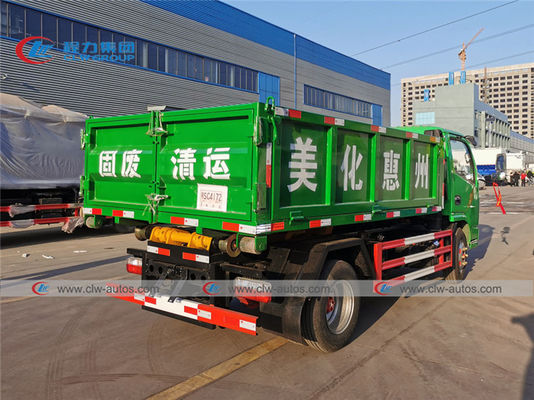

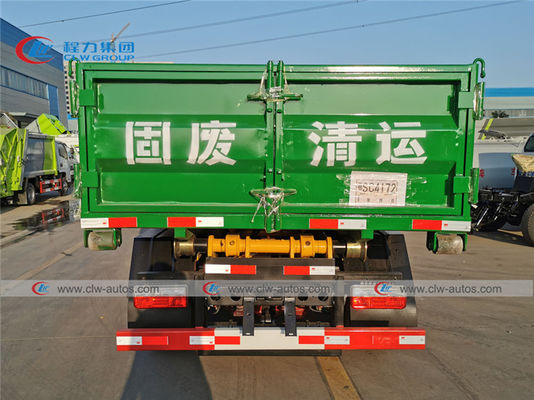

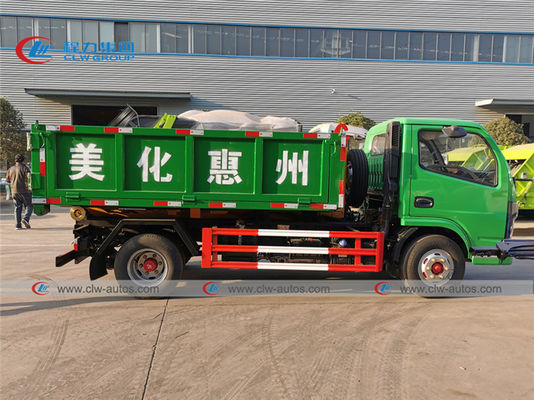

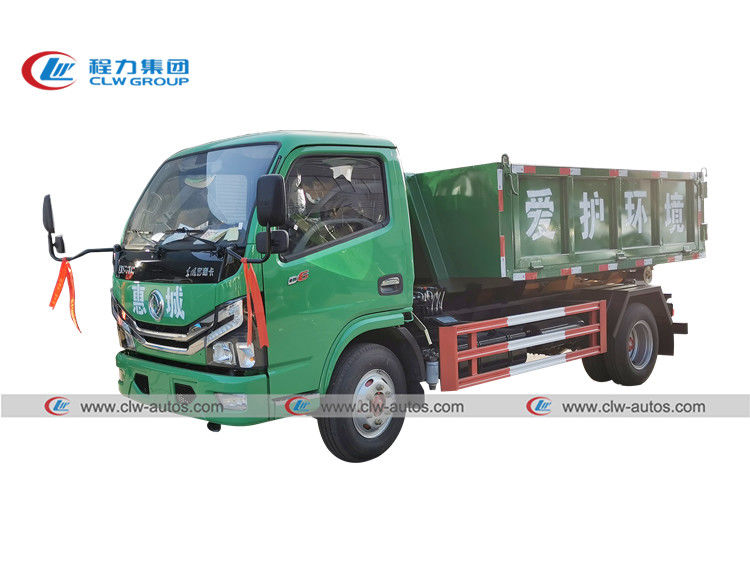

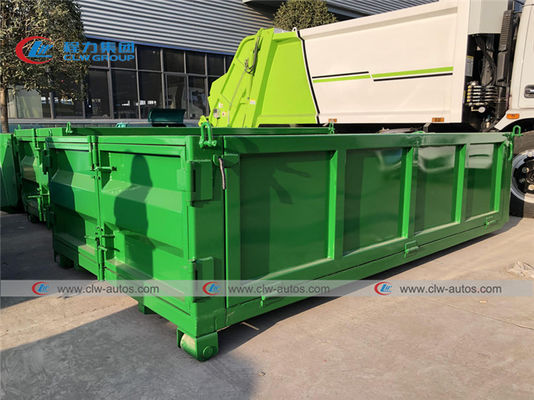

Product Photos
Structure of waste collection truck
1) Rolling polley:at two rear sides of garbage truck and adapts high tensile steel
2) Main arm hook
3) Knocking hook
4) Double oil cylinders
5) Multi-way valve system
6) One-key control in cabin and easy for operation
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipmen
FAQ
Q1: What kinds of container hook lift truck I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied container hook lift truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered container hook lift trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
