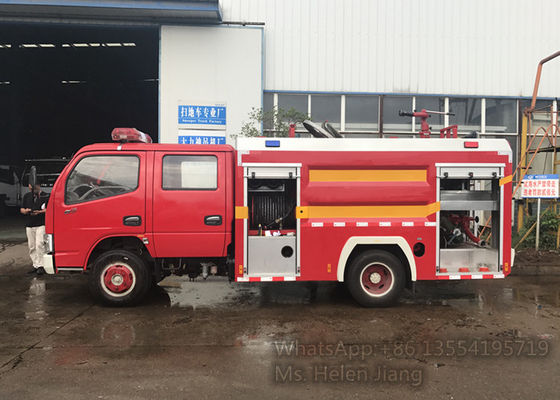

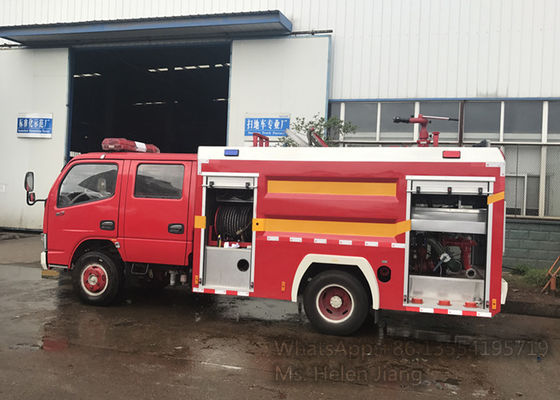

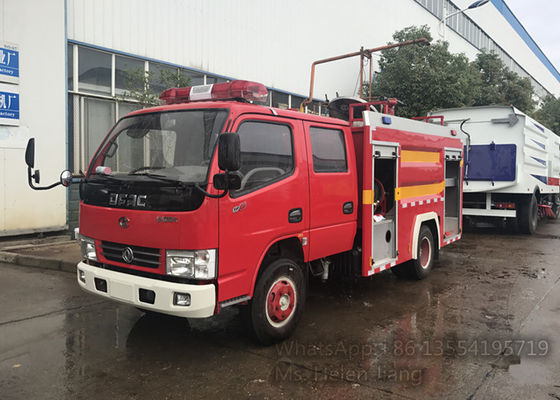

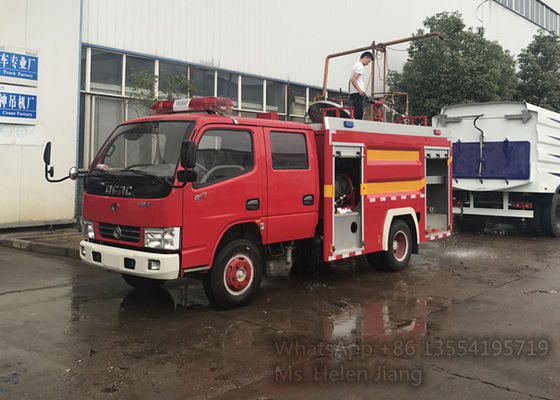

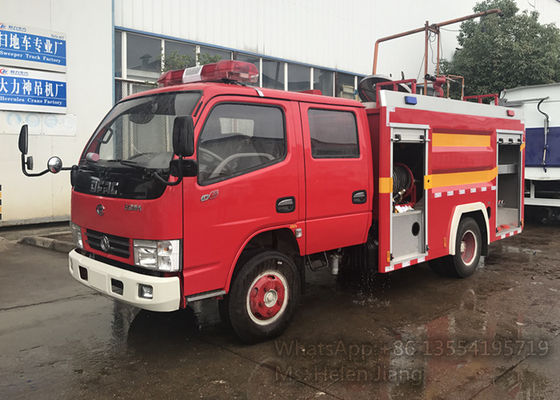

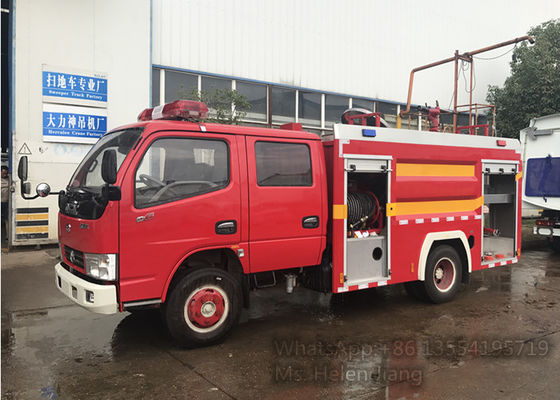

HOWO/Dongfeng 4x2 Small 5000L 5tons Fire Water Sprinkler Truck Mini Fire Fighting Truck for Forest Emergency Rescue
Product Description
Fire sprinkler is also known as fire sprinkler, forest fire truck, multi-function fire truck, multi-purpose sprinkler, airport fire sprinkler, street, town and village fire sprinkler function, is a combination of fire truck and sprinkler. The dual-purpose vehicle is between the fire truck and the sprinkler. It has the integrated purpose of fire fighting and sprinkling. Compared with the fire truck, although it lacks the equipment box, it has the same spray range as the fire truck and has the same fire fighting function.
Forest fire trucks are the main firefighting equipment used by forestry, forest farms, forestry fire prevention offices, and forestry firefighting to extinguish fires. They can be divided into forest water tank fire trucks, forest rescue fire trucks, and forest fire fighting tool vehicles.
- According to chassis drive type, there are 4X2 or 6-wheel fire fighting truck, 6X4 or 10-wheel fire fighting truck, 8X4 12-wheel fire fighting truck and off-road type 4X4, 6X6 fire fighting truck for military use.
- According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck, Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, MAN fire fighting truck,Scania fire fighting truck and so on.
Product Specification
| Cabin |
Driving type 4x2 |
| 2080 Standard cab, with one sleeper, with A/C. Left hand driven. 70° hydraulically tillable to the front as attached photo for ref. |
| Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
6998x2400x2900 |
| Wheel base (mm) |
4200 |
| Wheel track (front/rear) (mm) |
1886/1845 |
| Approach/Departure angle(°) |
27/20 |
| Weight in KGS |
Tare Weight(kgs) |
6000 |
| Loading Capacity(kgs) |
10000-12000 |
| Front axles loading capacity(kgs) |
1x3200 |
| Rear axles loading capacity(kgs) |
1x8000 |
| Max. driving speed(km/h) |
90 |
| Engine |
Brand |
YUCHAI |
| Model |
YC4E160-33 |
| Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP) |
160 HP |
| Emission standard |
Euro-III |
| Gearbox |
DC6J70TC, 6 forwards & 1 reverse |
| Clutch |
Diaphragm spring clutch |
| Steering Gear |
Power steering |
| Fuel tank (L) |
150L |
| Tire |
8.25R20 with one spare, 7 pieces |
|
Tank specification
|
8,000 liters, tank thickness is 4 mm, seal is 5 mm
◆Equipped with front(rear, side)sprinkler(sprinkling width＞14m )
◆Equipped with pump(suction lift＞6m)
◆Equipped with fire valve, water valve, and filter gauze
◆ Equipped with fire brigade system, fire gun on top.
◆ Equipped with Fire alarm lights on top of the cabin
|

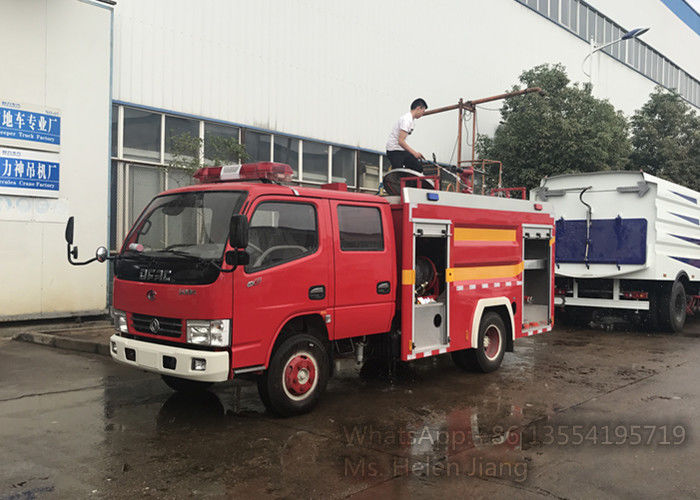

More Pictures for Reference:
Successful Cases:
Delivery for Fire fighting truck:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
