Dongfeng 4X2 120HP 6 Wheeler Side Loader Refuse Truck

Side Loader Refuse Truck Dongfeng 4x2 120HP 6 Wheel 5m3 Small Hanging Bucket Garbage Truck

Product Description

• Side Loader garbage truck is mainly used in collecting household garbage, commercial waste,municipal solid waste. It consists of a chassis, a garbage box, a hydraulic system, and an operating system.

  1. The advantage of CLW Side Loader garbage truck

  a. Dongfeng chassis, perfect performance.

  b. CHAOCHAI & Commins diesel engine, super powerful, no overhaul within 100,000 km.

  c. High compression ability, huge loading capacity. Compress the garbage of 200-400 kg/m3 into 400-600 kg/ m3

  d. One truck can cooperate with several dustbins to improve the ability of cycling

  e. Labor-saving, for most of the process is operated automatically and the system is equipped with interlock devices to prevent Error operation.

  f. Hydraulic system& Electric System control all kinds of movements of the compressor truck.

  2. Technical Parameter of Side Loader garbage truck

  Overall Dimension	5895 x 2045x 2210mm
  Curb Weight	3550kg
  Wheel Base	3300 mm
  Cabin	3 Passengers Allowed, with Air Conditioner, Radio,
  Engine	Yuchai Engine YC4F120-30
  Engine horsepower	120HP, EURO III
  Displacement	2.659L
  Max Driving Speed	90 km/h
  Gear Box	6 Forward Gear, 1 Reverse Gear,
  Tire	7.00R16(6 pieces with one spare)
  Garbage Bin	Capacity	5 CBM
  	Material	4mm Carbon Steel for Garbage Bin Body
  	Design	Whole unit with Leakage Proof Design
  Ways of Loading	side Loading with bucket Lifting System
  Control System	One control handle behind the cabin,
  Main structure	Equipped with air-tight dustbin, hydraulic system and operating system.garbage bucket lifting and overturning. Sealed and self-loading and self-discharging and hydraulic operating; Install the pusher and scraper device in the sealed garbage box

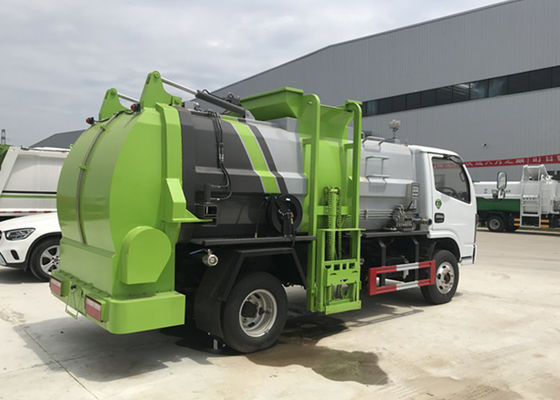

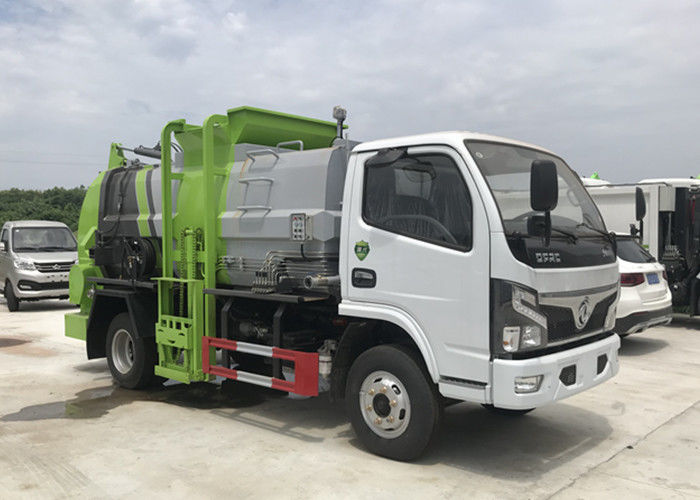

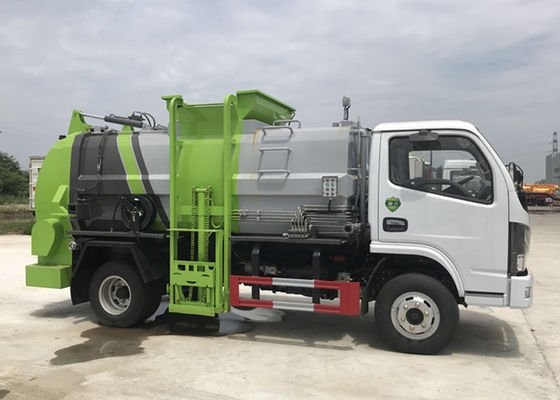

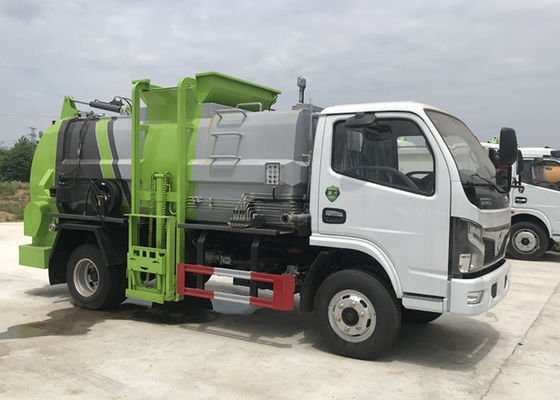

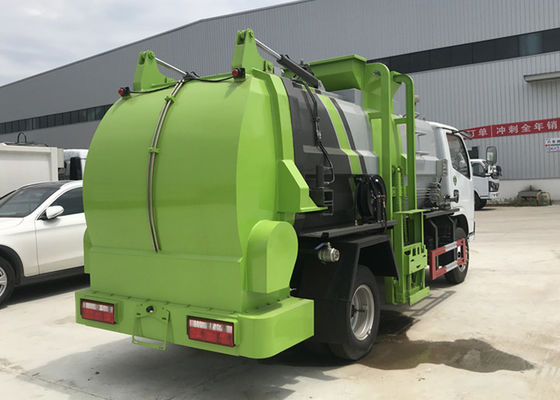

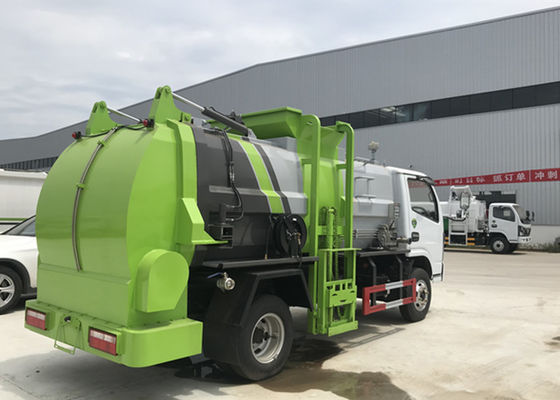

The pictures of Side Loader Refuse Truck Dongfeng 4x2 120HP 6 Wheel 5m3 Small Hanging Bucket Garbage Truck
