Sinotruk HOWO 6x4 10T Folding Boom Truck Mounted Crane

Duży Obraz : Sinotruk HOWO 6x4 10T Folding Boom Truck Mounted Crane

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC, ISO, BV, SGS
Numer modelu:	CLW584j

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi wypełniony woskiem
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Stan:	NOWY	Marka podwozia:	Sinotruk Howo, Dongfeng, Foton, FAW, JAC, JMC, ISUZU itp.
Marka silnika:	WD615.69, 336KM	Skrzynia biegów:	Szybko, 10 do przodu i 2 do tyłu
Marka dźwigu:	SANY, XCMG, CHENGLI itp.	Typ wysięgnika dźwigu:	Prosty żuraw teleskopowy, żuraw przegubowy
Max. Ładowanie podnoszenia:	8 ton	Typ boomu:	Prosty 4-ramienny wysięgnik teleskopowy
Materiał ładunku:	Stal węglowa Q235	Grubość ładunku:	Bok 2mm, dół 3mm
Funkcja:	Żuraw ciężarówki	Aplikacja:	Budownictwo, dźwig samochodowy
Kolor:	zależy	Pochodzenie:	100% Chiny
Gwarancja:	1 rok
Podkreślić:	Sinotruk HOWO Truck Mounted Crane , 6x4 Truck Mounted Crane , 10T Truck Mounted Boom Crane

Sinotruk HOWO 6x4 10ton folding boom truck mounted crane truck with crane

Description
1. Purpose: It is used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.

Specification

Truck Brand			SINOTRUK—HOWO
Chassis No			ZZ1257
Cargo body size(LxWxH)			6500x2650x600mm; floor3mm,side1.5mm
Dimension(Lx W xH) (mm)			10350×2680×3900
Folding arm crane			Max.lifting capacity:10ton Max.lifting height:9.755m Max.lifting moment:20T.M Rotation angle:360°(all rotation) Oil flow of hydraulic system:40L/min Pressure of hydraulic system:28Mpa Oil tank capacity:160L Crane weight:3477kg Installation space:1150mm
Approaching angle/Departure angle(°)			16/12
Overhang(front/rear) (mm)		1500/2875
Wheel base (mm)		4300+1350
Max speed(km/h)		102
Curb weight(kg)		14850
Gross Vehicle weight(kg)		25000
Engine		WD615.69, Inline 6 cylinders,supercharged intercooling,central supercharger,electric high pressure and common rail
		Diesel
		336HP
		Euro 2
Transmission	Model	HW19710,10 forward&2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
	Auxiliary brake	Engine exhaust brake
Steering system	Model	ZF8198,hydraulic steering with power assistance
Front axle	HF9
Rear axle	HC16
Tyre	12R22.5, 10+1 spare
Electrical system	Battery	2X12V/165Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V
Cabin	HW76 cab,one sleeper,with A/C all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.

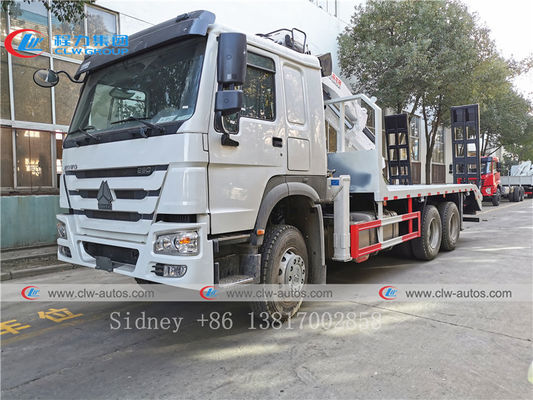

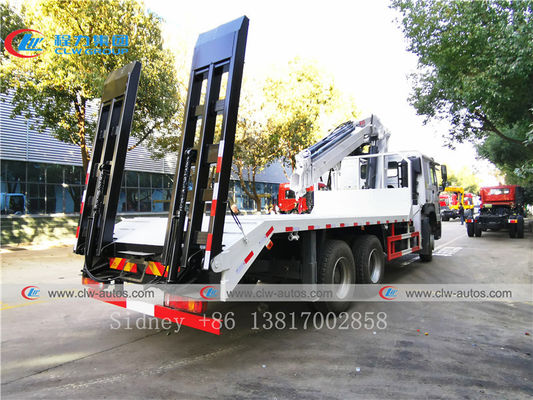

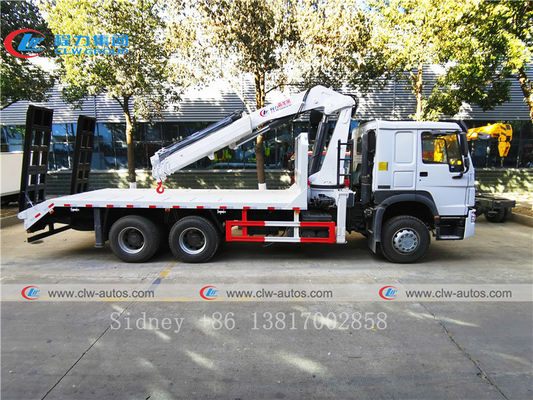

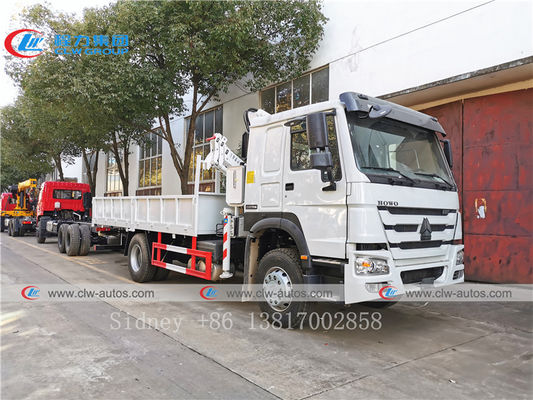

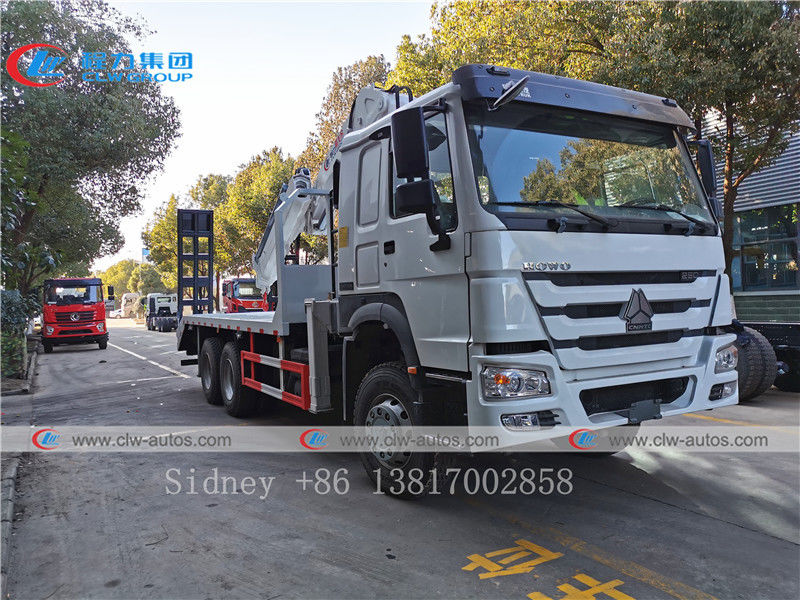

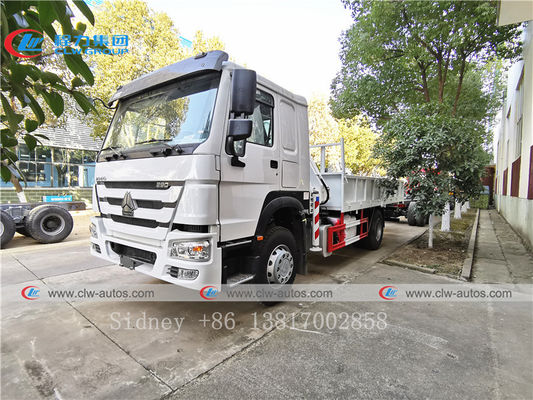

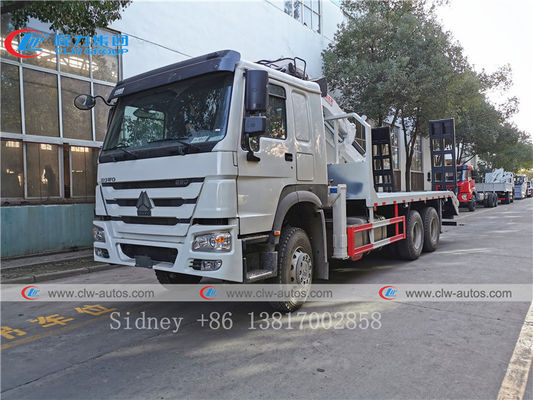

Reference Photos

Sinotruk HOWO 6x4 10T Folding Boom Truck Mounted Crane 0

Sinotruk HOWO 6x4 10T Folding Boom Truck Mounted Crane 3

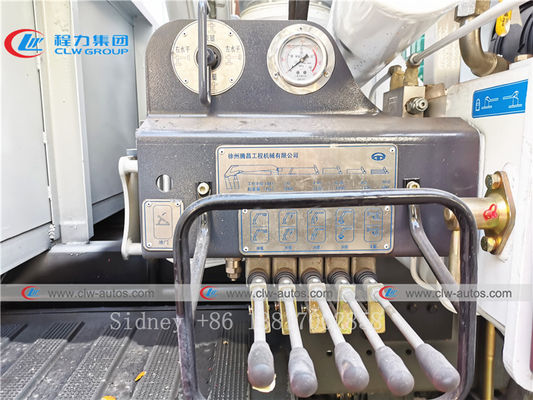

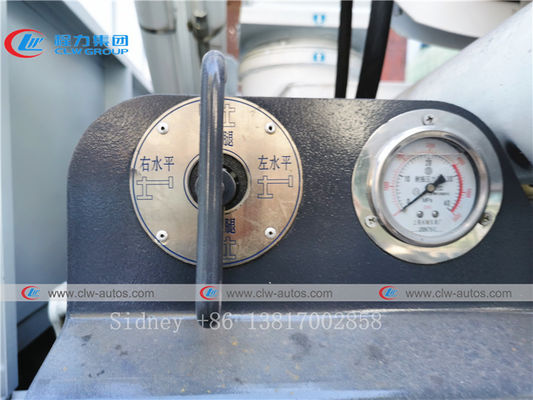

Crane Details

Working Situation

Sinotruk HOWO 6x4 10T Folding Boom Truck Mounted Crane 6

Sales Service

1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of truck mounted crane I can order from your company?

A: We can supply straight boom and folded boom truck mounted crane. The lifitng capacity of crane is from 3tons to 30tons, we will give our procurement suggestion to our client as per their requirements.

Q2: What is your production standard of your Truck mounted crane products?
A: China GB standard.

Q3: Can we adopts International brand crane for this truck mounted crane?
A: Sure, we already cooperated with many international brand supplier, such as XCMG and SANY PALFINGER etc. We CLW Group also can produce crane.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
