Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck

Name: Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
SKU: CLW5821
Price: 44,830.00 USD
Availability: InStock

Duży Obraz : Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,ISO,BV,SGS
Numer modelu:	CLW5821

Zapłata:

Minimalne zamówienie:	Jednostka
Cena:	negotiable
Szczegóły pakowania:	Statek luzem, ro-ro, kontener
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Marka podwozia:	Dongfeng, Foton, Sinotruk HOWO, Isuzu itp.	Model napędu:	Kierownica prawostronna i kierownica lewostronna
Rozstaw osi:	2456 mm	Moc silnika:	68KM
Pojemność zbiornika na wodę:	2cbm 2m3 2 metry sześcienne 2000 litrów 2t 3t	Pojemność zbiornika na kał:	2cbm 2m3 2 metry sześcienne 2000 litrów 2t 3t
Materiał zbiornika:	Stal węglowa 5 mm	Pompa próżniowa:	Znana międzynarodowa marka
Rura ssąca kału:	5m	Czas ssania:	Nie więcej niż 5 minut
Efektywny zakres ssania:	Nie mniej niż 8 m	Logo i wzór:	Jako żądanie klienta
Gwarancja:	1 rok
Podkreślić:	4x2 Fecal Suction Truck , Dongfeng Fecal Suction Truck , 4x2 RHD Vacuum Sewage Suction Truck

2000-3000 Liters Dongfeng 4x2 mini fecal suction truck sewage vacuum suction truck for sale

Description:
A Fecal Suction Truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of fecal suction trucks with capacities ranging from 3cbm to 18cbm.
Product Specification

The Parameters of 2M3 Dongfeng Mini Fecal Suction Truck
Overview
Name	Dongfeng Mini Fecal Suction Truck
Dimension(LxWxH)	4201X1475X1870(mm)
Total Mass	3865 Kg
Rated Payload	3000 Kg
Kerb Weight	865 Kg
Passenger	2
Approach/Departure Angle	33/24
The Parameters of Chassis
Manufacture/Model	Dongfeng
Driving Type	4*2 right hand drive
Wheel base	2456 mm
Gearbox	Six speed lever with five speed forward and one reverse, manual
Front/Rear Track	1260/1260(mm)
Tyre	6.00-13
The Number of Tyre	4+1(spare tyre)
Front/Rear Suspension	795/850(mm)
Leaf Spring Number	3/5
The Paremeters of Engine
Manufacturer/Model	Laidong/4801QB
Rated Power	68hp
Fuel Type	Diesel oil
Displacement/Capacity	1809ml
Emission Standard	Euro 6
Cylinder	Straight/4/intercooling
Max. torque	170N.m
Velocity	3200rpm
The Parameters of Equipment
Tank Capacity	2-3 M3 / 2000-3000Liters
Vacuum Pump Rotation Speed	800r/m-1400r/m
Max. Suction Lift	>6m
Vacuum	>500mmHg
Rotation Direction	Clockwise
Length of Pipe	5m
Time for full sucktion	<5min
Basic Equipment	Vacuum pump, ball valve, 5 meter pipe, pressure meter, window for showing liquid level, cleaning system, hoist base, water and oil separator, anti-leaking valve, etc.
Optional Equipment	Sprinkler, alarm for full suction, double pump, crane, scissor lift, etc.

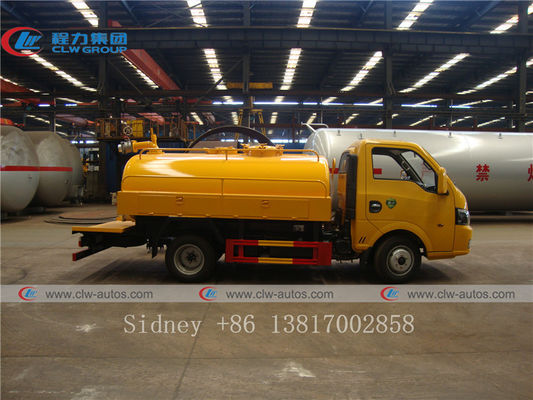

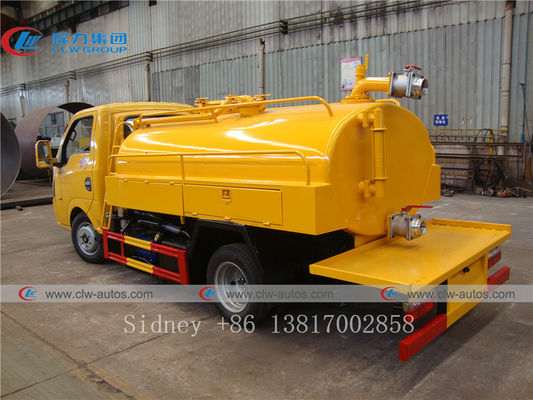

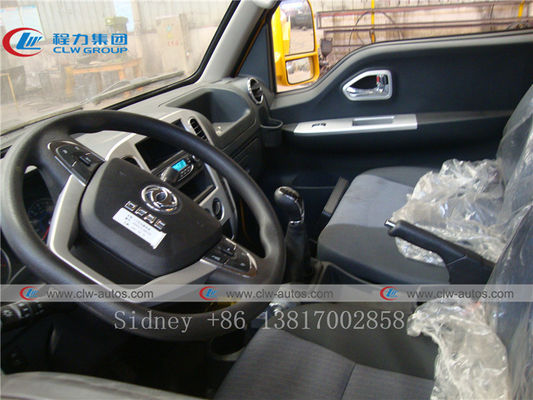

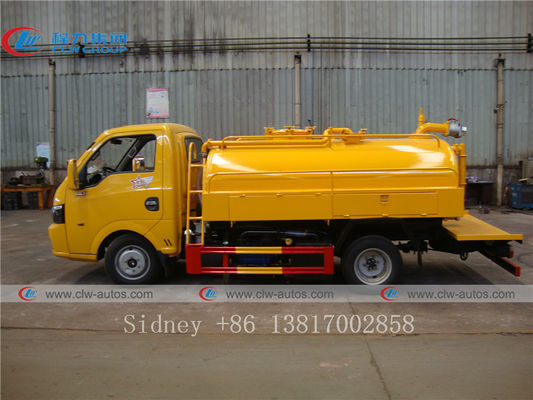

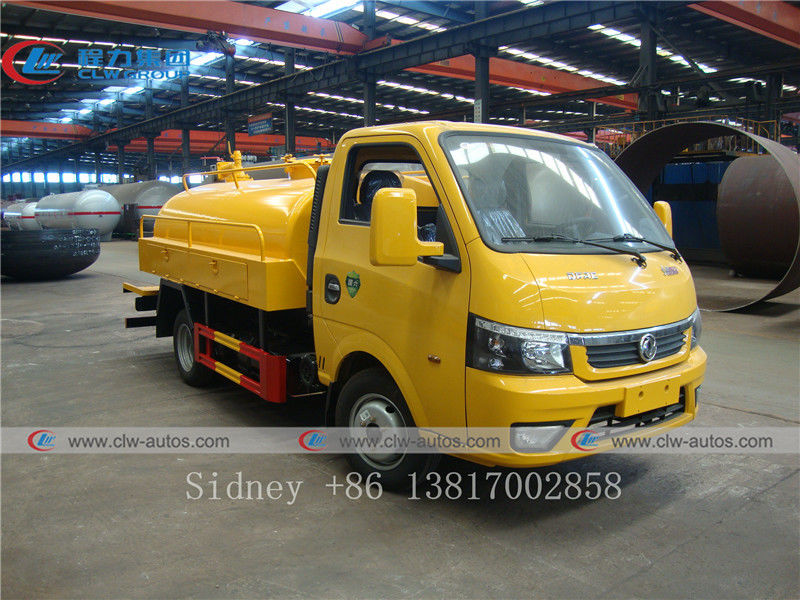

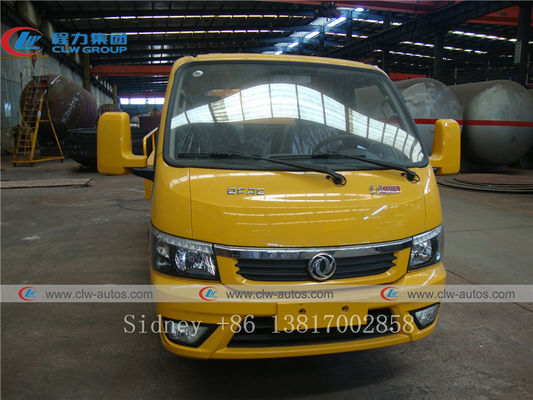

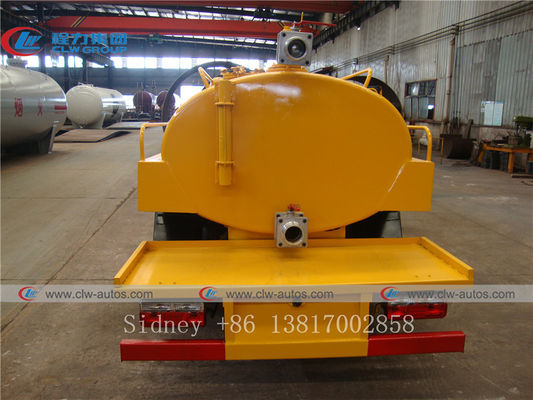

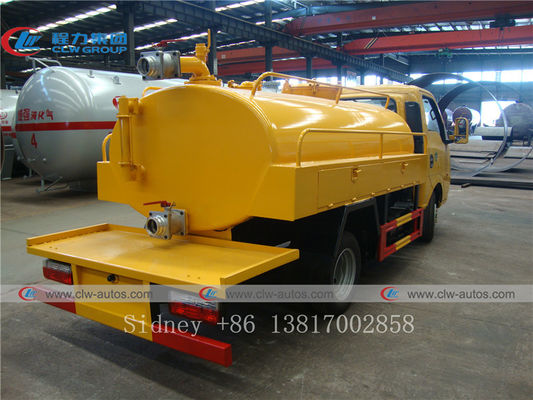

Reference Photos
Dongfeng 4x2 RHD Mini Vacuum Fecal Suction Truck 0

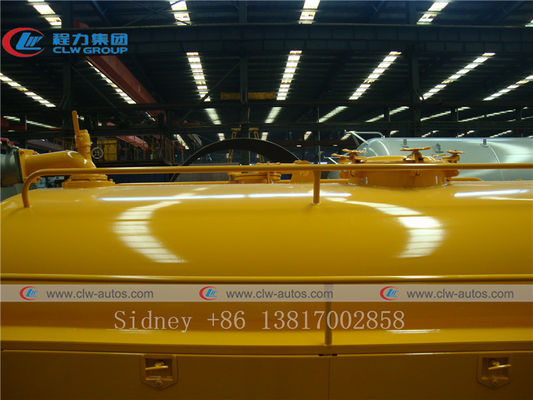

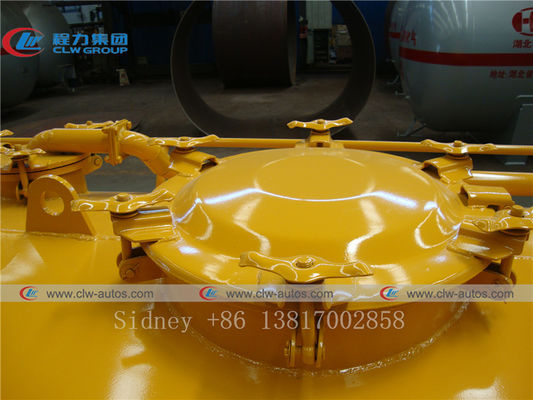

Main Structure

Working Scene

Delivery and Shipment

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What size Fecal Suction tank we can get from your company?

A: we can supply 2CBM to 18CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
