Q345R Q370R Q420R Stal węglowa na zbiorniki ciśnieniowe
Pojemność ładowania:
20 TON, 25 TON, 30 TON, 40 TON, 50 TON, 60 TON
Rozmiar zbiornika:
50 m3, 50 cbm, 50000 litrów, 50000L
Presja projektowa:
1,71 MPa 1,77 MPa 17,1 bara, 17,7 bara
Ciśnienie próby hydraulicznej:
2,21 MPa 22,1 bara
Środek wypełniający:
Propan, butan, LPG, gaz kuchenny
Wskaźnik poziomu:
Wskaźnik poziomu płyty magnetycznej, pływak, wskaźnik poziomu wirnika
Średnica:
3100 mm, 3300 mm
Mnóstwo:
50000L, 50cbm, 50000litrów, 50m3, 25ton, 25ton
Podkreślić:
50000 Liters LPG Pressure Vessel
,
25 Tons LPG Pressure Vessel
,
ASME LPG Gas Storage Tank
50000L 25 tons 25T LPG gas storage tanker ASME Propane Gas Tanker 50000 Liters Pressure Vessel 50m3 LPG Storage Tank
Product Description
1. Storage medium of LPG Stationary Storage Tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of LPG Stationary Storage Tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lLPG Stationary Storage Tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Liquefied petroleum gas storage tanks include compressed gas or liquefied gas storage tanks. Liquefied petroleum gas storage tanks can be divided into fixed volume storage tanks and active volume storage tanks according to the volume change of containers. Large fixed volume LPG storage tanks It is made into a spherical shape, and the small one is made into a cylindrical shape. The active volume storage tank is also called the low-pressure gas storage tank. It is commonly called the gas cabinet. Its geometric volume can be changed, tightly sealed, no gas leakage, and the balance of air pressure and the adjustment of gas supply. The pressure generally does not exceed 60MPa.
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
Technique Parameter for 100000 Liters 50tons lpg storage tank
Item No.
Parameters
Volume of Tank (cbm)
100
Tare Weight (kg)
20410 kg
Filling Capacity (kg)
50000 kg
Thickness of Shell (mm)
16
Thickness of Endplate (mm)
18
tank cylinder diameter (mm)
3100
External Dimensions (mm)
(length×width×height)
13866*3132*3722
Material of Tank and Main Pressure Parts
Carbon Steel Q345R
Filling Medium
Liquefied Petroleum Gas
Design Pressure
1.77MPa ( 256.65 Psi)
Corrosion Allowance
1 mm
Medium Density
420 kg/ cbm
Accessory list for 100,000l lpg storage tank
Accessories List
Parts No
Size
Parts Name
Model No.
Quantity
Unit
a
DN50
Cut-off Valve for Drain Outlet
J41N-2.5-50
1
set
b
DN80
Cut-off Valve for Liquid Phase Outlet
J41N-2.5-80
1
set
c1
DN50
Cut-off Valve for Gas Phase Balance Outlet
J41N-2.5-50
1
set
c2
DN50
Cut-off Valve for Gas Phase Balance Outlet
J41N-2.5-50
1
set
d
DN80
Cut-off Valve for Liquid Inlet
J41N-2.5-80
1
set
i
DN50
Cut-off Valve for Air Drain Outlet
J41N-2.5-50
1
set
h
DN80
Cut-off Valve for Safety Valve
J41N-2.5-80
1
set
f1
DN25
Cut-off Valve for Magnetic Level Gauge
J41N-2.5-25
1
set
f2
DN25
Cut-off Valve for Magnetic Level Gauge
J41N-2.5-25
1
set
e
M33*2
Thermometer
WTQ-280
1
set
g
M20*1.5
Pressure Gauge
Y-100T
1
set
/
/
Magnetic Level Gauge
HG21584-95
1
set
/
DN80
Safety Valve
A42F-25
1
set
M20×1.5
Needle Valve
J24W-320-DN6
1
set
Total Quantity
14

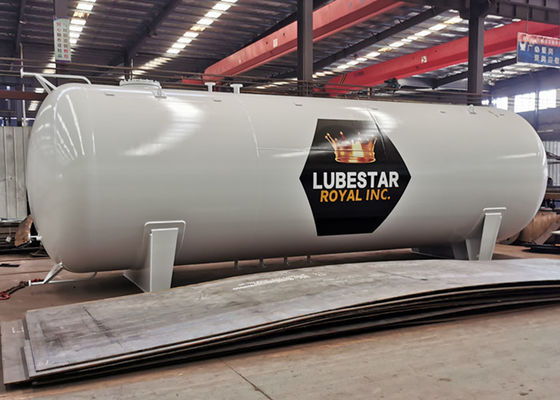

Product 50000Liters LPG storage tank's pictures:
Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;
-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;
-- Design pressure of Underground LPG tank: 1.77Mpa;
-- hydraulic testing pressure:2.21 Mpa;
-- Corrosion allowance: 1mm;
-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.
Our Service
1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
