Dongfeng Tianjin DFAC 10-14CBM Garbage Compactor Truck Compressed Garbage Collecation Trucks
Description
1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;
2. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck;
3. Easy Full Automatic Operation: electrical control system for loading and unloading operations.
4. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.
5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
Specification
|
Technical parameters
|
Name
|
Dongfeng Compression garbage truck
|
Outline size(mm)
|
8600×2495×3100
|
|
Chassis model
|
DFL1160
|
Gross weight(kg)
|
16000
|
|
Engine model
|
B190 33
|
Loading weight(kg)
|
5900
|
|
Power/Exhaust(Kw/ml)
|
140/5900
|
Curb weight(kg)
|
9905
|
|
Fuel type
|
Diesel
|
Wheelbase(mm)
|
4500/4700/5100
|
|
Axle load
|
6000/10000
|
Sping plate no.
|
7/9+6,8/10+8
|
|
Max speed(km/h)
|
90
|
Tire model / number
|
9.00-20,10.00-20
|
|
Approaching angle(°)
|
20
|
Front / rear track(mm)
|
1880/1800
|
|
Departure angle(°)
|
14
|
Front/rear hang(mm)
|
1430/2670
|
|
Upp structure configuration
|
Garbage capacity(m3):
|
10-14
|
Filled mouth along the ground clearance (mm):
|
860
|
|
Filling cycle time(s:)
|
30
|
Once unloading garbage working time (s):
|
40
|
|
Filled once loaded garbage time (s):
|
12
|
Max crushing compression force (T):
|
16
|
|
Max unloading force (T):
|
18
|
Filled Lifting time (S):
|
15
|

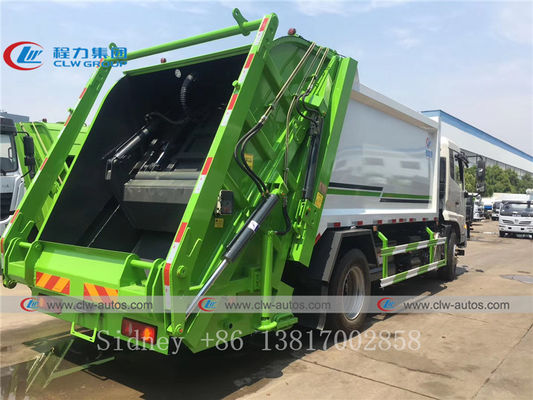

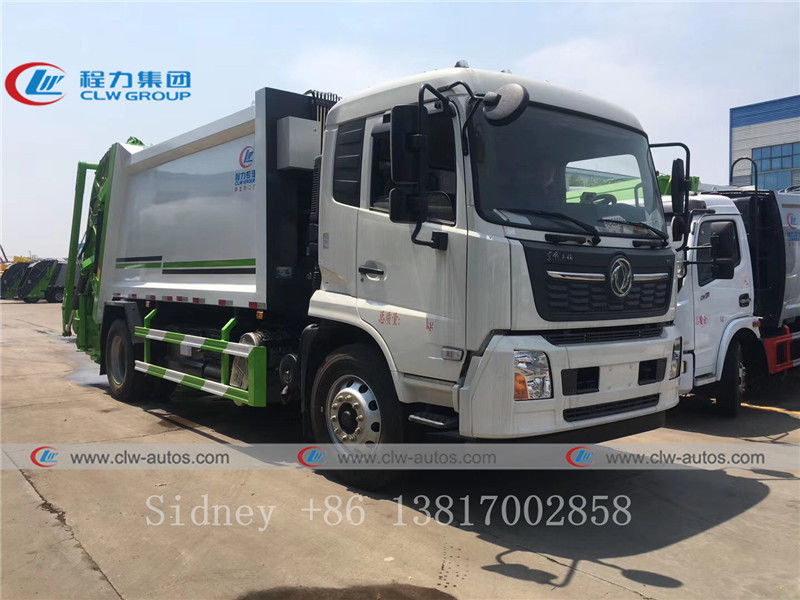

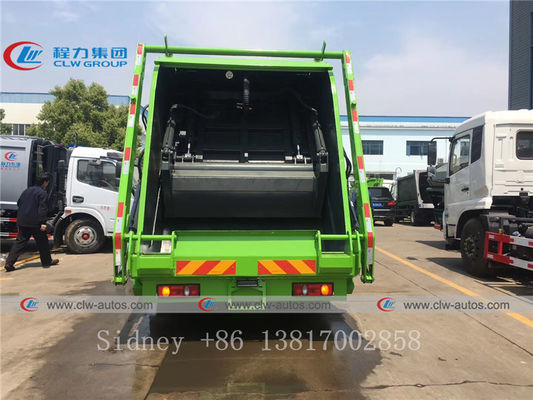

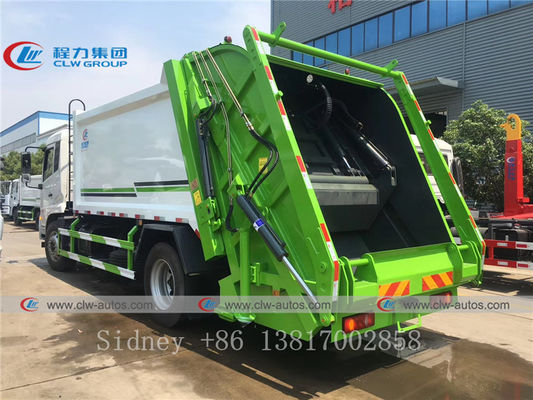

Reference photos
Truck diagram

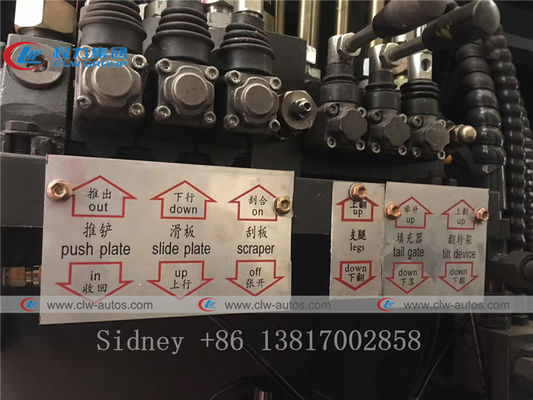

Main parts
Garbage Loading and Unloading Process
Factory overview
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
