P6 P5 P4 LED FOTON 4x2 Mobile Digital Billboard Truck

Duży Obraz : P6 P5 P4 LED FOTON 4x2 Mobile Digital Billboard Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Hubei, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC, ISO9001. BV, SGS
Numer modelu:	CLW20120720

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	Negotiatable
Szczegóły pakowania:	Nago lub woskowany przed dostawą
Czas dostawy:	25 dni roboczych
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Pixel Pitch (MM):	4,0 mm; 5,0 mm; 6,0 mm	Model napędu:	Koła 4X2/6/4*2 6-kołowe
Rozstaw osi (mm):	2300mm; 2306mm; 2360mm; 2400 mm	Rozmiar ekranu:	6m2; 6,5m2; 7m2; zgodnie z rozmiarem podwozia
Kolor chipów rur:	Pełny kolor i monochromatyczny	Generator:	8 kW; 10kw; 12kw; 15kw; 18kw; 20kw
Rodzaj paliwa generatora:	Olej napędowy/benzyna	Ekran LED:	SMD P4 P5 P6 P8 opcjonalnie
Głośnik:	40W; 60W; 80W; 100 W	System podnoszenia:	Fakultatywny
Jednostka hydrauliczna:	Lokalna marka z Chin	Noga do lądowania:	Fakultatywny; 2 sztuki lub 4 zdjęcia
Wentylator:	Lokalna marka w Chinach; 2 szt	Scena Mobilna:	Fakultatywny; 4,4m2 lub według klienta
Wzmacniacz:	120W; 240W; 360W; 420 W
Podkreślić:	FOTON 4x2 Mobile Digital Billboard Truck , P4 LED Mobile Digital Billboard Truck , P5 LED Mobile Advertising Truck

FOTON Pickup Stage Truck P6 P4 P5 LED Screen 4X2 Mobile LED Advertisement Truck LED Advertising Truck

Product Description
1. Purpose: For mobile advertising, products promotion, branding, concerts and so on. It can on-site display, exchange, interaction, wide publicity and gain great effective of advertising.
2. Main parts: LED screen, Generator set, Computer, Control system etc.
3. Optional items: Mobile stage, Scrolling light box.
4. LED screen: SMD P4 P5 P6 P8 for optional.
5. Generator brand: China famous brand and Internation brand for optional

Specification

Name	Euro4 Foton Special Billboard Vehicle with Good Quality
Item	Specifications	Item	Specifications
Truck
Model	YZR5036XXC-AB	Gross Weight (kg)	2545
Overall dimensions (mm)	5100,5180×1710×2640	Axle Load(kg)	700/1845
Wheelbase (mm)	3,070	Curb Weight (kg)	2220
Front Track (mm)	1338	Rear Track (mm)	1375, 1405, 1455
Approach/ Departure Angle(°)	39/23	Front/RearOverhang (mm)	605/1425, 605/1505
Number of axles	2	Number of Tyres	4
Max speed (km/h)	115	Tyre Specification	175R14LT 8PR
Leaf Spring	-/5	Allowable Cab Passengers	2
Chassis
Model	BJ1036V5JV5-D1	Brand	Foton
Emission Level	Euro 5
Engine (petrol)
Brands	Model	Displacement	Rated Power
Foton	4W12M1	1249	64kw/87hp
Superstructure
Screen	1. P8 or P6 full color LED screen for left and right side 2304*1536
Structure	1. Luxury decoration for inside, good quality wooden floor
	2. 8/15 kw ohmad super silent generator
	3. 220v ourput power cable,player
	4. LED PC controller , power amplifier,
	5. water-proof loudspeaker box,
warranty	within one year for the complete equipment, within three years for the LED screen,provide lifelong good after service

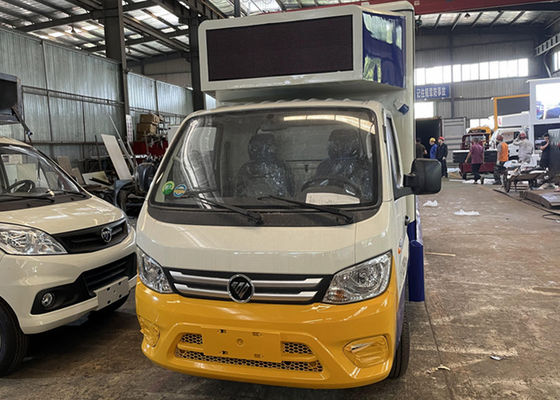

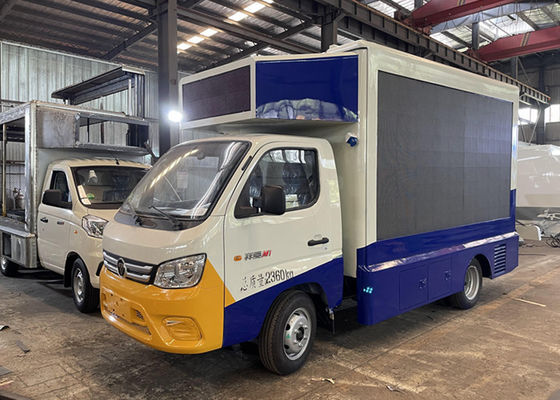

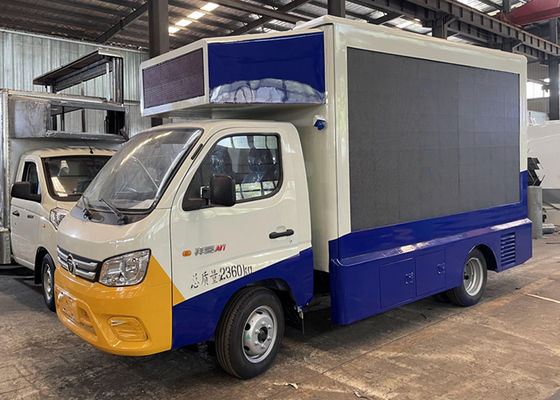

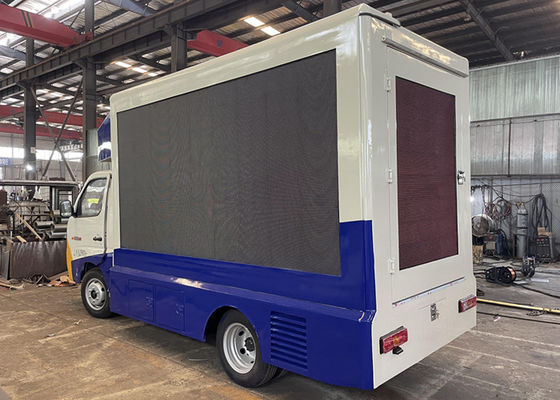

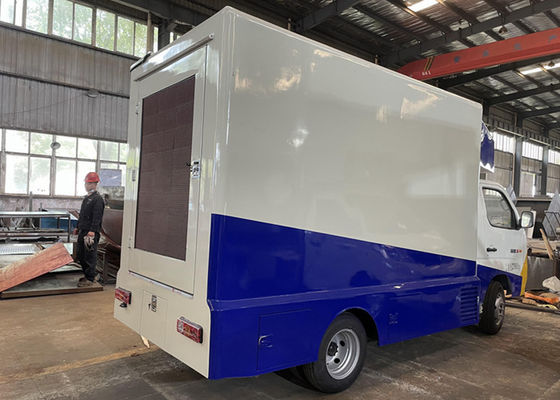

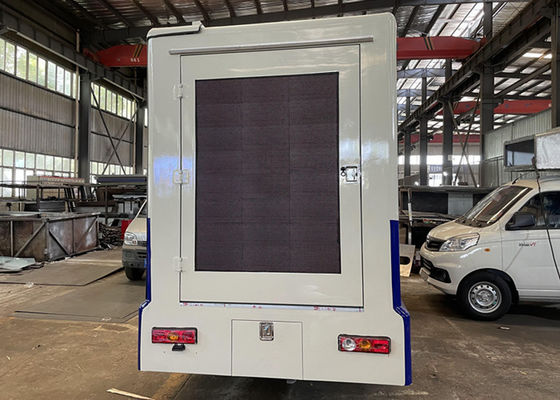

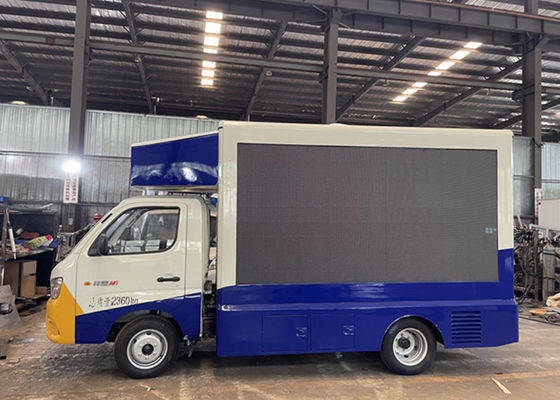

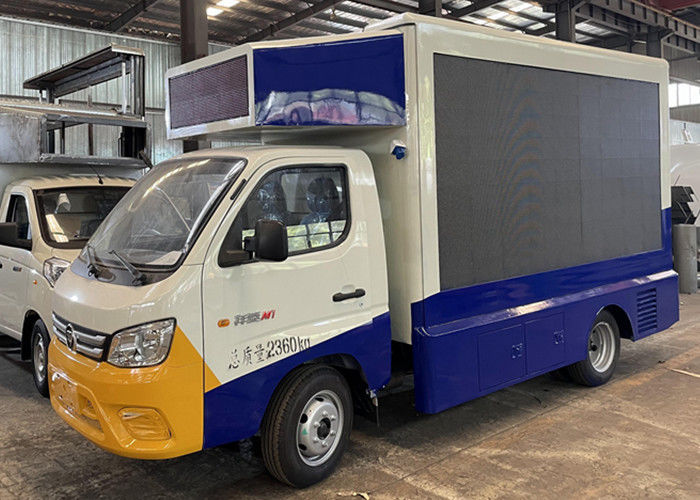

More Pictures for FOTON LED Advertising Truck:

P6 P5 P4 LED FOTON 4x2 Mobile Digital Billboard Truck 0

The standard configuration is led outdoor high-definition LED color screen on the driver's side and toughened glass light box on the right side of the container; The rear of the container is a monochrome subtitle screen, with the size of 1280 mm * 1440 mm; Configuration in the container: engine (optional gasoline engine, diesel engine, battery power supply), console, industrial computer, LCD, power amplifier, audio, exhaust skylight, powerful exhaust fan, aluminum decorative plate interior, wooden floor, screen waterproof box, roller, etc.

Users can choose different configurations according to their needs:

1. 3sides roller glass light box
2. One side color screen, other side glass light box.
3. One side color screen, and the other side truck is unfolded.
4. Double sided color screen.
5. Hydraulic lifting of left LED screen.
6. Stage.

FAQ:

Q: How many type of screens LED advertising truck have?
A: The LED advertising car can use single-sided full-color screen, double-sided full-color screen, three sided full-color screen, left single-sided full-color screen, right tempered glass roller plus spray painting, and back monochrome subtitle screen.

Q: What are the configuration parameters of the waterproof advertising truck?
A: The advertising truck uses a silent generator, or you can choose a battery. It is recommended to use a generator, because the battery has been used for a long time, there is a lack of electricity and insufficient charging, which greatly reduces the efficiency of advertising, delays the time, and the generator voltage is stable and durable, which can ensure the normal operation and improve the work efficiency.

Q: What are the color screen specifications of advertising vehicles?
A: Our company adopts P6, P5, P4 screen (the smaller the value, the higher the definition and the more expensive the price) and other common specifications, imported wick, two-yearS warranty.

Q: What are the components of the LED screen waterproof advertising truck?
A: The chassis, color screen and carriage are 5cm composite steel frame box, wooden floor, internal and external power distribution box, circulating energy wind cooling system, silent generator, 1 industrial control computer with system, 4 waterproof speakers, 1 power amplifier, 1 set, optional screen lifting, stage, complete vehicle By the Ministry of industry and information technology approval advertising vehicle announcement and advertising vehicle manufacturers issued vehicle certificate! Make sure the quality of the truck.

Q: Which models are the advertising vehicles divided into?
A: first of all, small advertising vehicles are Foton Xiangling's and Chang'an's (screen size: 2304L* 1536H(mm), 3.6 square meters of side screen and 1.22 square meters of tail screen), small and medium-sized advertising vehicles are Dongfeng tuyi's, (screen size: 2884x long, 1660mm high, 4.6 square meters of side screen and 1.64 square meters of tail screen), medium-sized advertising vehicles are Foton Kangrui, FAW Jiefang, Dongfeng frica Isuzu, etc. (screen size: side screen length 3840mm x height 1760mm, tail screen 1.8m2)

Q: How to deal with the operation of advertising car?
A: Our factory has professional and technical personnel for free VIDEO guidance and training.
