ASME 60000L 30MT Q345R Carbon Steel LPG Gas Storage Tank

60000L 30 tons 30MT LPG gas storage tanker ASME Propane Pressure Vessel 60m3 Liquid Gas Storage Tank

Volume of Tank60 CBMFilling Weight30000 kgTank Weight12750 kgThickness of Shell (mm)14 mmThickness of End plate (mm)16 mmTank Diameter (mm)2700 mmExternal Dimensions (mm) (length x width x height)10962 x 2728 x 3318 mmMaterial of Tank and Main Pressure PartsCarbon Steel Q345RFilling MediumLiquefied Petroleum Gas ( Propane)Design Pressure1.77 MPaTest Pressure2.22 MpaCorrosion Allowance1 mmMedium Density420-590 kg/ cbmMain parts of LPG TankItemSpecification/ mmQuantityDischarge PipeDN50-2"1Inflow PipeDN50-2"1OutletDN50-2"1Gas phase balance pipesDN50-2"1ManholeDN4501Drain HoleDN50-2"1

Product Description

1. Storage medium of LPG Stationary Storage Tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.

2. Available tank capacity of LPG Stationary Storage Tank : 5m³~200m³,2ton~100tons

3. Manufacturing standards of lLPG Stationary Storage Tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

CLW 60m3 LPG Storage Tank

1. LPG tank is also called LPG storage tank,LPG tanker, LPG storage tanker propane tank and propane tanker which belongs to special equipment.

2. It is mainly used for liquefied petroleum gas storage and distribution stations, car filling stations, etc.

3. There are many production processes for CLW LPG storage tanks. Several important processes are as follows:
A, The first is the selection of raw materials for large-scale iron and steel enterprises;
B, The second is the overall heat treatment required for the welding of tanks.

4. This process is to eliminate the stress of steel plates and make the entire tank become a whole, so that the weld seam will not be cracked. Once again, the sand blasting process used by our company uses one or two millimetersof steel grit to spray the surface of the tank to remove rust.

5. This way of rust removal can effectively remove rust and spray paint and can also be used for longer.Finally, our company chooses products of large-scale paint companies, sprays the anti-rust primer twice, then sprays the topcoat twice.

6. The paint can ensure that thestorage tank will not lose paint for a long time, and the maintenance is better.This is how we keep good quality and competitive prices for global valued customers.

Technique Parameter for 600000 Liters 30tons lpg storage tank

Accessory list for 60,000l lpg storage tank

Product Advantage

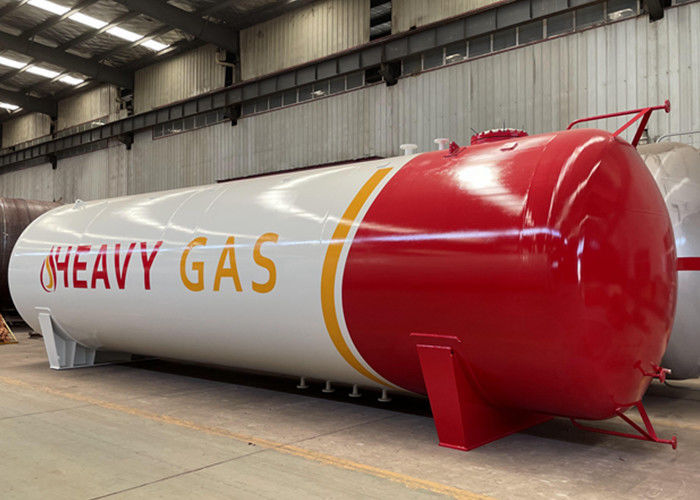

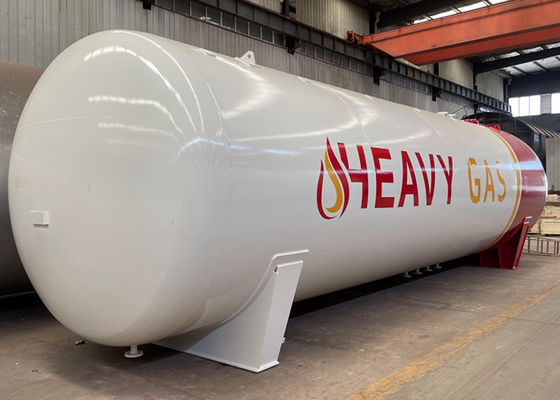

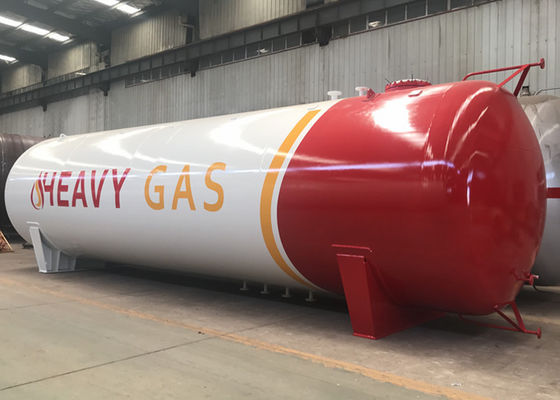

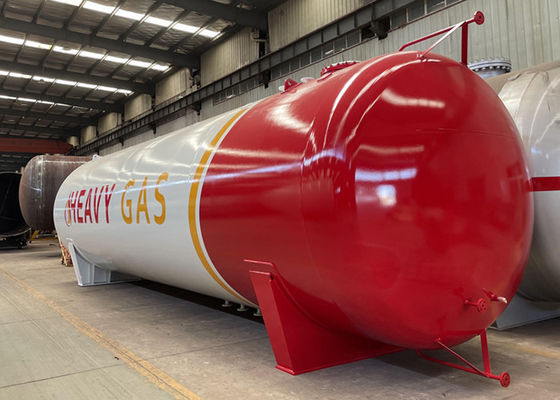

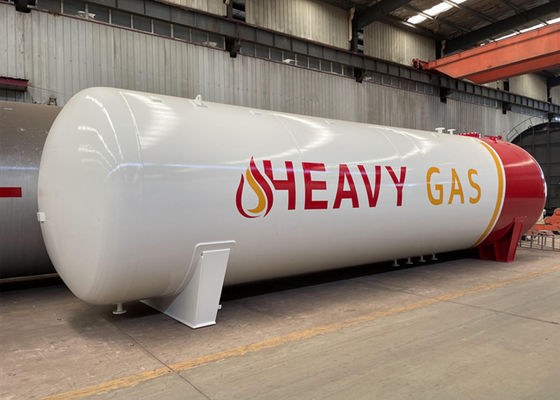

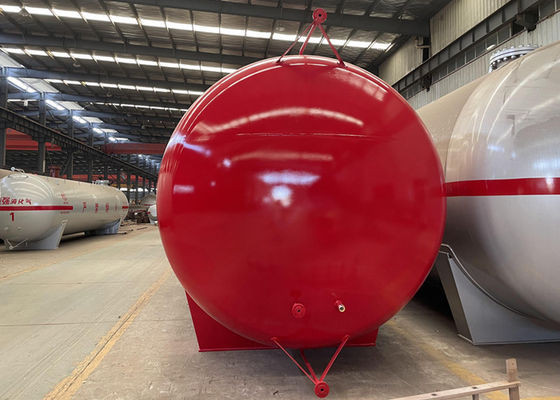

Product 60000Liters LPG storage tank's pictures:

Pictures of LPG gas plant with the accessories:

Production Process for LPG storage tank:

-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;

-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;

-- Design pressure of Underground LPG tank: 1.77Mpa;

-- hydraulic testing pressure:2.21 Mpa;

-- Corrosion allowance: 1mm;

-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.
