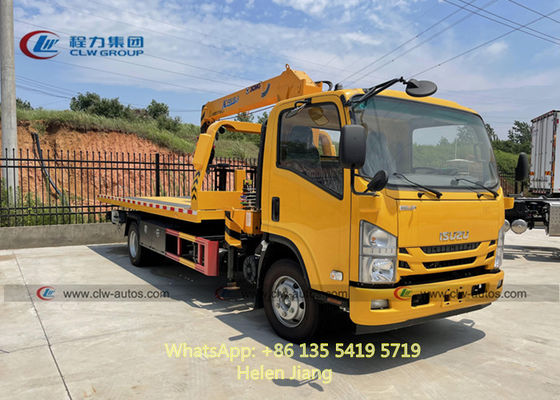

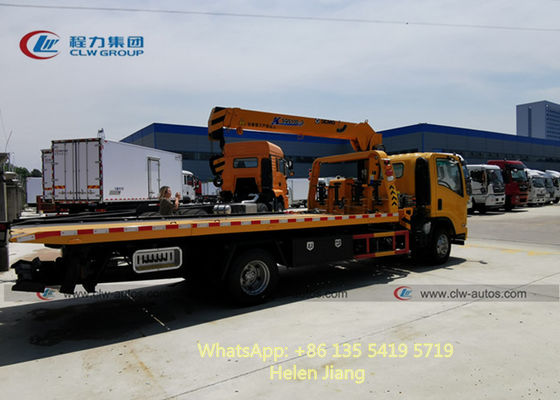

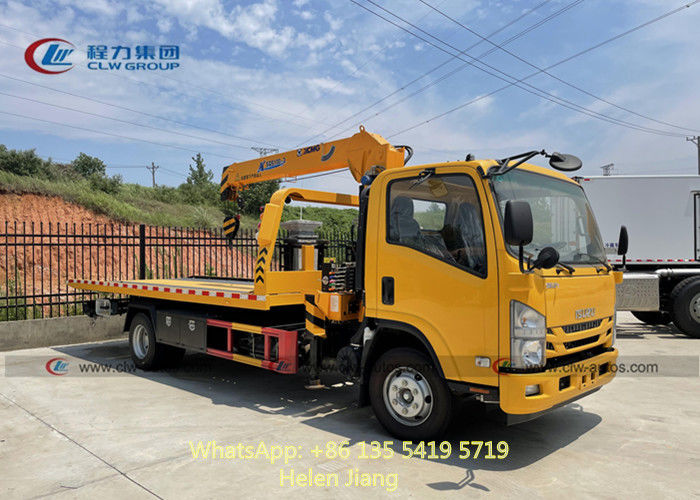

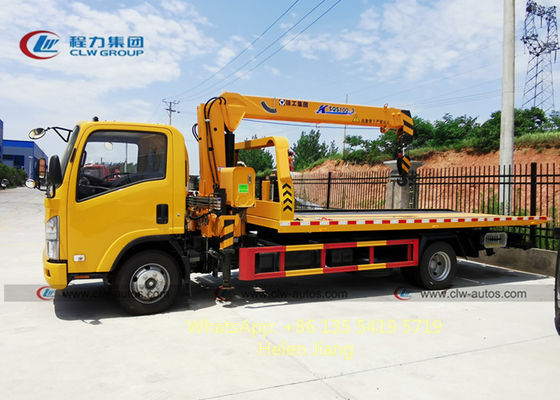

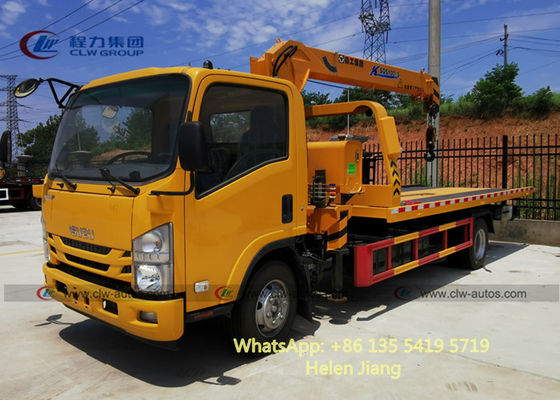

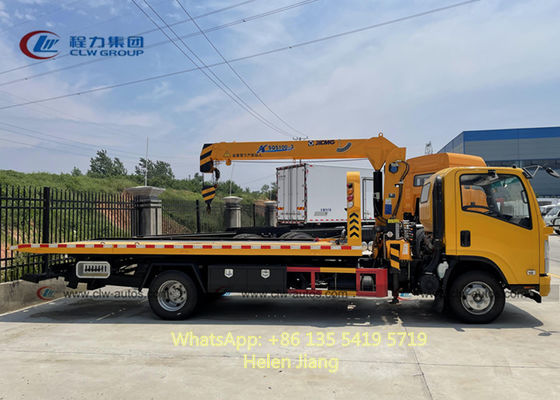

LHD ISUZU 4x2 5T Flatbed Towing Truck With XCMG Crane

Duży Obraz : LHD ISUZU 4x2 5T Flatbed Towing Truck With XCMG Crane

Szczegóły Produktu:

Miejsce pochodzenia:	SUIZHOU. HUBEI, CHINY.
Nazwa handlowa:	CLW
Orzecznictwo:	CCC, ISO9001, SGS, BV
Numer modelu:	CLW2020721

Zapłata:

Minimalne zamówienie:	1 zestawy
Cena:	Negotiated
Szczegóły pakowania:	Nago lub woskowany przed dostawą
Czas dostawy:	40 dni roboczych
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	50 jednostek miesięcznie.

Kontakt

Szczegółowy opis produktu

Nazwa produktu:	Ciężarówka do holowania pojazdów ratowniczych ISUZU	Marka ciężarówek:	Sinotruk HOWO, SHACMAN, FAW, FOTON, JAC itp
Model napędu:	4X2, 6 kół, 6 kółek	Typ napędu:	Kierownica po prawej stronie lub kierownica po lewej stronie.
Max. Maks. Loading weight Ładowanie wagi:	4000 KG, 5000 KG, 4 TONY, 5 TON,	Sprzęt:	Pompa hydrauliczna, cylinder olejowy
Główne części:	Wysięgnik, podnoszenie, wciągarki, noga do lądowania	Lina druciana:	25 metrów
Inny:	Z dźwigiem z prostym ramieniem marki XCMG
Podkreślić:	5T Flatbed Towing Truck , ISUZU Flatbed Towing Truck , LHD Recovery Tow Truck

Japanese ISUZU 4x2 5T Road Recovery Wrecker Flatbed Towing Truck With XCMG Crane

Product Description:

1. Purpose of 4ton flatbed tow truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman.
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.

Specification:

Description	ISUZU 4X2 Flatbed Towing Truck LHD
Drive Model	4X2
Chassis	QL1070
Vehicle Main Dimensions	Dimensions(L x W x H)mm	7645X2180X2610
	Wheel base (mm)	3815
	Overhang (front/rear) (mm)	1015/1815
	Wheel track (front/rear) (mm)	1504/1425
	Approach/Departure angle(°)	24/14
Weight in KGS	GVW.	6990
Weight in KGS	Curb Weight	2220
Max. driving speed(km/h)		95
Allowable passengers in cab		2
Engine	Model	4KH1-TCG40
	Type	4-stroke direct injection , 4cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	120
	Emission standard	Euro IV
Gearbox	5 forwards & 1 reverse
Fuel tank (L)	120L
Tire	6.50-16-14PR, 6 pieces+1 spare tire
Operation control system	Electrically hydraulic control

UPPER

Platform Organ	Length(mm)×Width(mm)	5600*2300
	Operating stroke(mm)	2680
	Min. angle of slope(°)	8
	Rated loading weight(kg)	4000
	Rated winch traction weight(kg)	4000
	Length of steel wire rope(m)	21
	Ground clearance of cage floor(mm)	470
Hoisting Organ	Max. length of extended boom(mm)	1680
	Rated lifting weight(kg)	3635
	Max. extended lifting weight(kg)	2500
	Rated traction weight(kg)	5000
	Elevation of boom (upper/ lower)(°)	9~-10
Other Equipment	One tool box, one alarm lamp, two auxiliary wheels and 4 bandages
	With 1-2tons XCMG brand Straight Arm Crane

CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in
different kinds of special vehicles, trailers and construction machinery.

Certificate: ASME, ISO, BV, SGS, CCC etc.
More than 30 independents workshops.
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians. About 8000 workers.
800kinds of LPG, trucks and semi-trailers.
20 years wholesale experience
Turnover 250 million and Export 20million annually
Turnover 2 billion trucks and semi-trailers annually.
Trucks and trailers Sold to 90 countries
Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
