Dongfeng 4x2 High Pressure Washing Vacuum Sewer Cleaner Flushing Vehicle Sewage Suction Tank Fecal Suction Truck
Product Description
Sewage suction truck is mainly used to clean septic tank, sewage ditch and sewer,and etc.
The sewage suction vehicle is a new type of sanitation vehicle which collects and transfers sludge and sewage to avoid secondary pollution. The sewage suction vehicle has 16cbm loading capacity, self-suction & self-discharge function,fast working speed,convenient transportation. It is suitable for collecting and transporting feces,mud,crude oil and other liquid substances. The suction vehicle adopts the domestic technology leading suction vehicle vacuum pump, which has and far suction range, especially suitable for sucking and transporting silt in the sewer, stons, brick and other large objects in water channel.
Application: Our sewage suction truck is ideal for sewer and toilet cleaning. With optional high pressure water jetting, it can easily unclog tunnels and pipes. The powerful vacuum pump can deal with all types of heavy slurries and muds.
Chassis Brand: Dongfeng/DFAC, Foton, HOWO, other chassis available.
Features:
1. strong vacuum pump for faster sewage suction speed
2. high pressure water jetting helps clearing obstacles (optional)
3. self-dumping tank with openable rear door to discharge sewage efficiently
4. ultra-long suction pipe available to further extend working area
Tank Size: 2000-3000L.
Tank Material: Q235 stainless steel
Inspection: All tanks are tested by air, water, X-ray and with fire firing before shipment.
Main Market: our sewage suction truck are widely sold in Africa, N. & S. America, Middle East and Asian countries.
Product Specification
| Vehicle Main Dimensions |
Cab type |
Single |
| Overall dimension(L*W*H)(mm) |
5990*2065*2350 |
| Wheelbase (mm) |
3300 |
| Axle number |
2 |
| Drive type |
4*4 |
| Steering type |
LHD/RHD |
| Max. Drive Speed (km/h) |
120 |
| Curb weight (kg) |
3780 |
| Chassis parameter |
Chassis brand |
Sinotruk HOMAN |
| Transmission |
Manual, 6 forward and 1 reverse |
| Brakes |
air brake |
| Tire |
7.00-16 |
| Engine parameter |
Engine Brand |
Chaochai |
| Fuel type |
Diesel |
| Horse Power(hp) |
160hp |
| Emission Standard |
Euro III/IV/V |
| Superstructure Parameter and main performance |
Cleaning Tank volume(m3) |
2 |
| Cleaning Tank material |
4 mm good quality carbon steel; round shape |
| Sewage tank volume(m3) |
3.5 |
| Sewage tank material |
5 mm good quality carbon steel |
| Pump |
Imported Italy high quality vacuum pump or chinese vacuum pump |
| Standard configuration |
60m long high pressure pipe, 8 high pressure sprayers,inspect window, one gravity mouth, cleaning apparatus,5m long suction pipe, etc |
| Main performance |
Suction time ≤ 5min,
effective suction range ≥ 8m |
| Main function |
Cleaning city sewer, pipeline dredge, suction sewage,etc |
| Optional |
watering |
The sewage suction truck is refited with cylindrical shape tank, made of 6mm thick high quality steel plate. At the front, it is equipped with suction view window, hand washing device, 5 meters of suction pipe. With the high power vocuum suction pump and high quality hydraulic system, the tank rear cover can be opened and discharging easily. The dirt in the tank can be dumped directly through the back cover, which has the characteristics of high vacuum degree, large tonnage, high efficiency and wider use. (vertical suction range: ≥ 8m, working pressure: 8500Pa, theoretical pumping speed: 120L/S, shaft power: ≤13kw, inlet and exhaust caliber: 50mm, pumping time: < 5min, discharging time: < 4min.

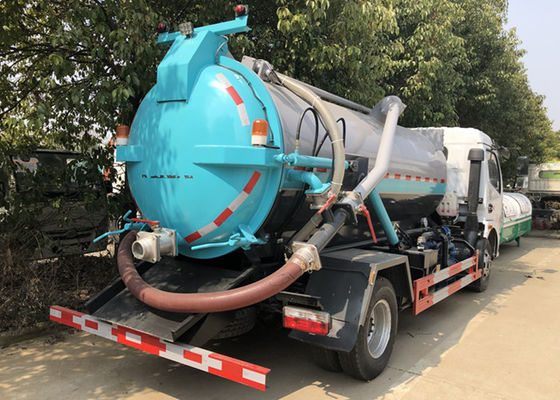

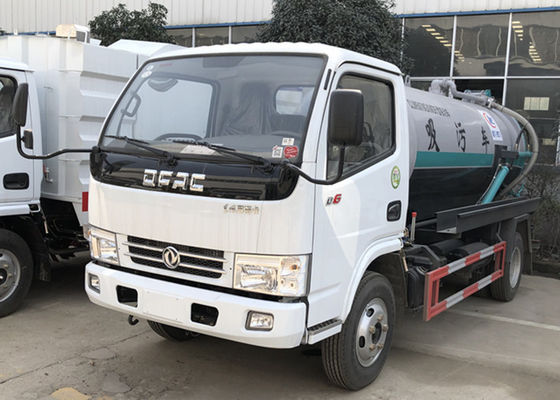

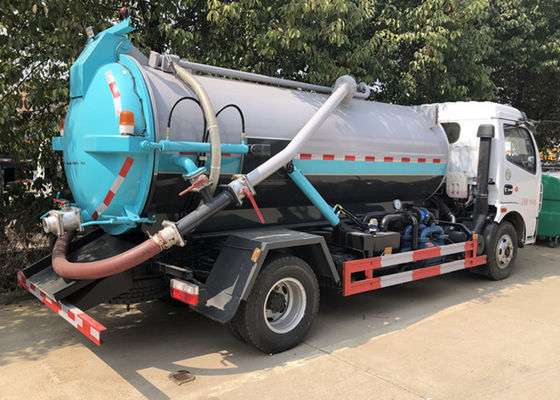

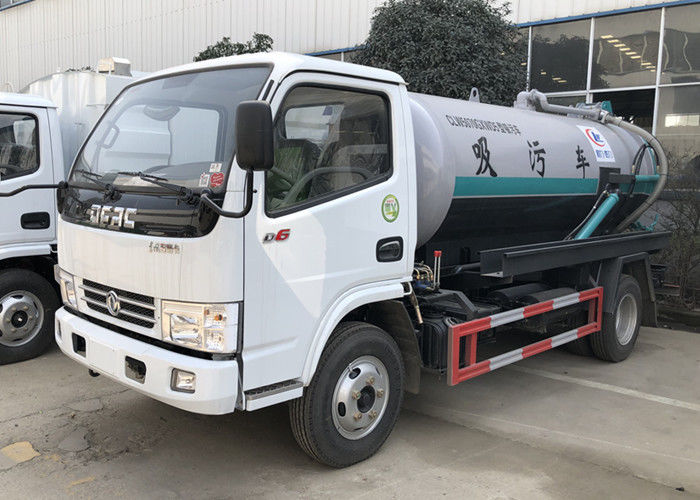

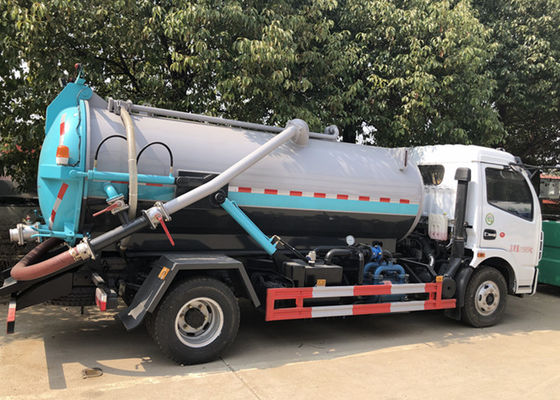

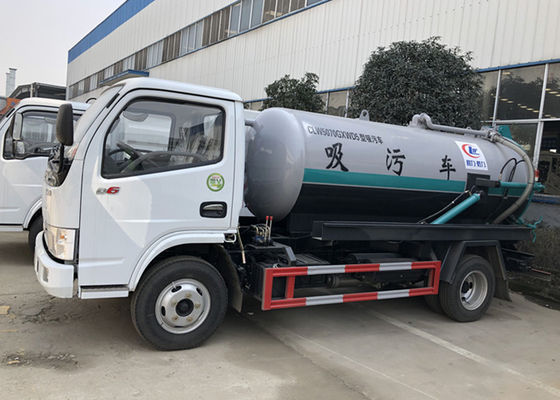

More Pictures for Reference
Spare parts for our Sewer cleaning truck / vacuum sewage suction truck:
Working pictures of our Vacuum sewage suction truck:
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
