48m3/H 120m3/H Explosion Proof LPG CNG Gas Compressor

Duży Obraz : 48m3/H 120m3/H Explosion Proof LPG CNG Gas Compressor

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Hubei, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO9001, CCC, BV, SGS
Numer modelu:	CLW20210809

Zapłata:

Minimalne zamówienie:	1 zestaw
Cena:	Negotiated
Szczegóły pakowania:	Drewnianą skrzynką przed dostawą
Czas dostawy:	7 dni roboczych od otrzymania wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Nr modelu:	ZW-2.0/10-16	Konfiguracja:	Stacjonarny
Natężenie przepływu:	0,8 m3-2,0 m3/min	Zasysanie pary:	1.0MPA
Dostarczaj ciśnienie:	1,6MPA	Napięcie silnika:	380 V
Moc silnika:	11 kW, 15 KM	Prędkość obrotowa:	1460r/min
Stopień odporności na wybuchy:	ExdIIBt4	Moc silnika:	11 kW, 30 kW itp
Specyfikacja:	120m3/godz., Silnik przeciwwybuchowy
Podkreślić:	48m3/H CNG Gas Compressor , 120m3/H CNG Gas Compressor , Explosion Proof LPG Gas Compressor

48m3/Hour, 120m3/Hour Explosion-Proof LPG/CNG Gas Compressor for LPG/CNG Gas Tank Plant

Product Discription:

ZW series of LPG recycle compressor is vertical, single acting, air-cooled, oil-free lubrication, reciprocating piston unit. This series compressor cylinder & packing components are oil-free to ensure the purity of its working medium. Crankshaft, connecting rod, crosshead components are pressure lubrication (splash lubrication) to ensure the reliability of lubrication.

The LPG compressor is mainly used for liquefied petroleum gas or properties with similar gas delivery, pressurization, thus this kind of compressor is the key equipment of liquefied gas station, LPG station, station equipment is mixed, the ideal chemical enterprise booster gas recovery.

ZW series Oil-Free LPG Gas Compressor, it has many functions, small volume, lightweight, small power, stable and reliable operation, and has good safety performance. It can transport highly volatile liquid such as liquefied petroleum gas and recover the gas left in the tank, Liquid Natural Gas. Due to the unique oil-free lubrication design, there is no need for oil lubrication in the cylinder, so it will not pollute the medium (ensure the purity of gas) and keep the transported substances pure.

Excellent complement, satisfied performance, light weight, small occupying area, more compressing ratio, smooth running, long service life of spare parts, simple operation, reliability and easy maintenance. ZW series compressors have both fixed or movable types; both normal atmosphere (0.1~1.5MPa) and high pressure (1.6~2.4MPa) to meet different requirements of customers.

Media	LPG Gas
Cooling Type	Wind Cool
Compressing Stage	1
Capacity	1.0m3/Min
Inlet Pressure	1.0MPa
Outlet Pressure	1.6MPa
Speed	650rpm
Ex Motor	11kw, 380V, 50Hz
Weight	450kgs

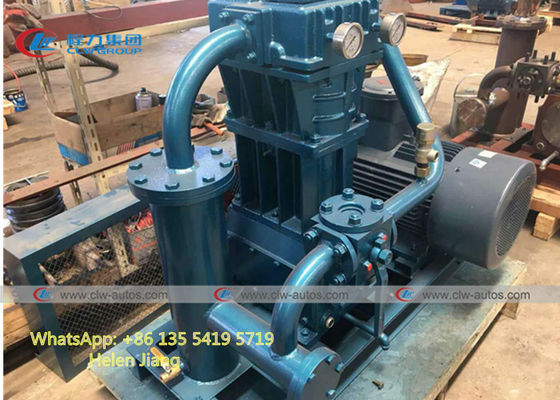

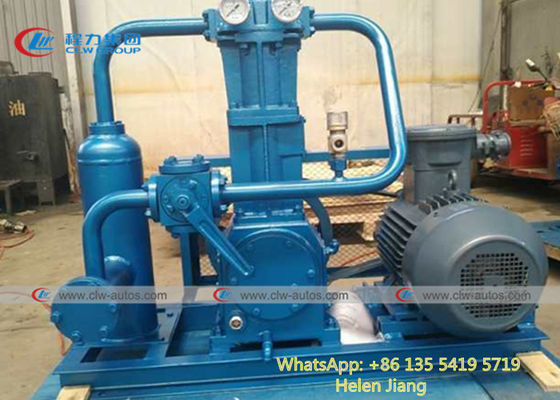

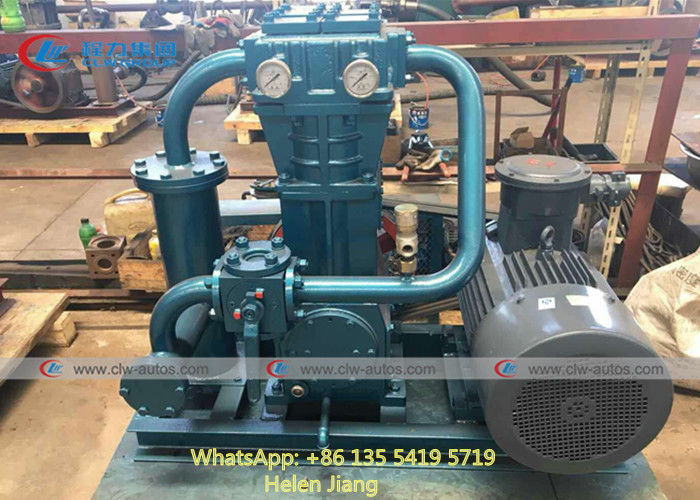

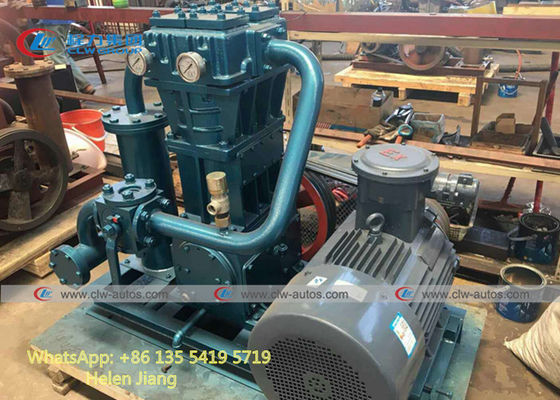

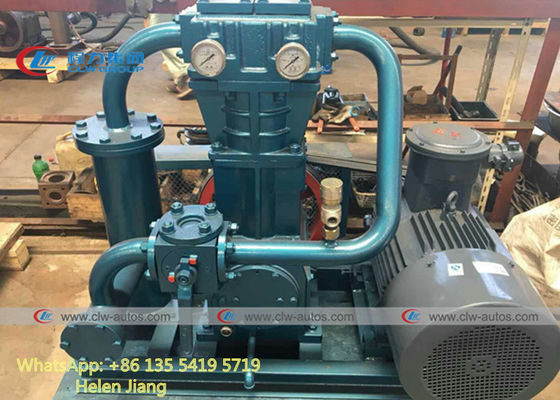

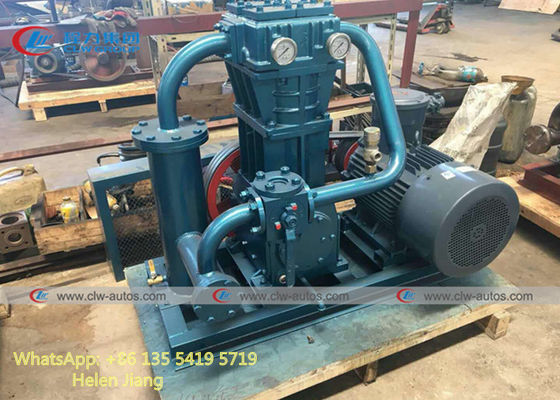

More detailed picures for LPG compressor:

48m3/H 120m3/H Explosion Proof LPG CNG Gas Compressor 0

48m3/H 120m3/H Explosion Proof LPG CNG Gas Compressor 1

Description:

ZW series of liquefied petroleum gas recycle compressor is vertical, single acting, air-cooled, oil-free lubrication, reciprocating piston unit. This series compressor cylinder & packing components are oil-free to ensure the purity of its working medium. Crankshaft, connecting rod, crosshead components are pressure lubrication (splash lubrication) to ensure the reliability of lubrication.

Applications:

It is suitable for working in large, middle and small LPG storages, conveying and distribution stations, bottle filling stations, gasification stations, gas mixing stations and tank vehicle loading and has the functions of vehicle loading, unloading, bottle filling, bottle emptying, conveying, residue removal and residual gas recycling and it can be also used in the processes of other petrol-industries.

Our Service

1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.
