Q345R Q370R Q420R Stal węglowa na zbiorniki ciśnieniowe
Pojemność ładowania:
30 TON, 40 TON, 50 TON, 60 TON
Rozmiar zbiornika:
80 m3, 80cbm, 80000litrów, 80000L
Presja projektowa:
1,71 MPa 1,77 MPa 17,1 bara, 17,7 bara
Ciśnienie próby hydraulicznej:
2,21 MPa 22,1 bara
Środek wypełniający:
Propan, butan, LPG, gaz kuchenny
Wskaźnik poziomu:
Wskaźnik poziomu płyty magnetycznej, pływak, wskaźnik poziomu wirnika
Średnica:
3100 mm, 3300 mm
Mnóstwo:
80000L, 80cbm, 80000litrów, 80m3, 40ton, 40MT
Podkreślić:
80M3 LPG Gas Storage Tank
,
Rochester Level Gauge LPG Storage Tank
,
40MT Filling LPG Tank
40ton 80000liters LPG storage tank 40MT 80M3 LPG Gas Tanker LPG Cylinder Fillling Tank With Rochestor Level Gauge
Product Description
1. Storage medium of LPG Stationary Storage Tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of LPG Stationary Storage Tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lLPG Stationary Storage Tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Liquefied petroleum gas storage tanks include compressed gas or liquefied gas storage tanks. Liquefied petroleum gas storage tanks can be divided into fixed volume storage tanks and active volume storage tanks according to the volume change of containers. Large fixed volume LPG storage tanks It is made into a spherical shape, and the small one is made into a cylindrical shape. The active volume storage tank is also called the low-pressure gas storage tank. It is commonly called the gas cabinet. Its geometric volume can be changed, tightly sealed, no gas leakage, and the balance of air pressure and the adjustment of gas supply. The pressure generally does not exceed 60MPa.
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
Technical specification for 80CBM 80000Liters LPG Gas Storage Tanker:
Parameter of 80cbm LPG Storage Tank
ITEM
PARAMETER
ITEM
PARAMETER
Volume
80cbm
Thickness of Shell
16mm
Tank Material
Q345R
Thickness of End plate
18mm
Overall Size
11166*3132*3722mm
Tank Net Weight
17000kg
Tank Diameter
3100mm
Loading Capacity
40000kg
Design Pressure
1.77Mpa
Gas Density
510~590kg/M3
Hydraulic Test Pressure
2.22Mpa
Corrosion Allowance
1mm
Design Temperature
-20℃~50℃
Heat Treatment
Bulk
Vapor Outlet
DN50
Gas Outlet
DN50
Life time
15 years
Safety Accessories like follows
Model
Item
Qty
Junction surface
J41N-2.5-50
Stop Valve DN50
6
RF
J41N-2.5-25
Stop Valve DN25
2
RF
J41N-2.5-80
Stop Valve DN80
1
RF
J24W-320-DN6
J24W Needle Valve M20*1.5
1
HG21584-95
Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5
1
RF
A42F-25-100
Safety Valve DN80
1
RF
Y-100T
Pressure Gauge M20*1.5 1.5degree 0~4Mpa
1
WTQ-280
Thermometer M33*2 2.5 degree
1
-40℃~60℃

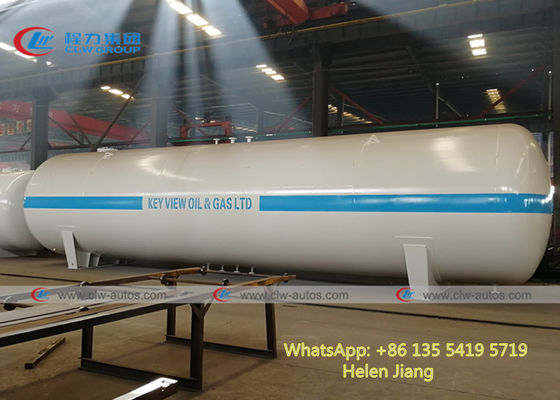

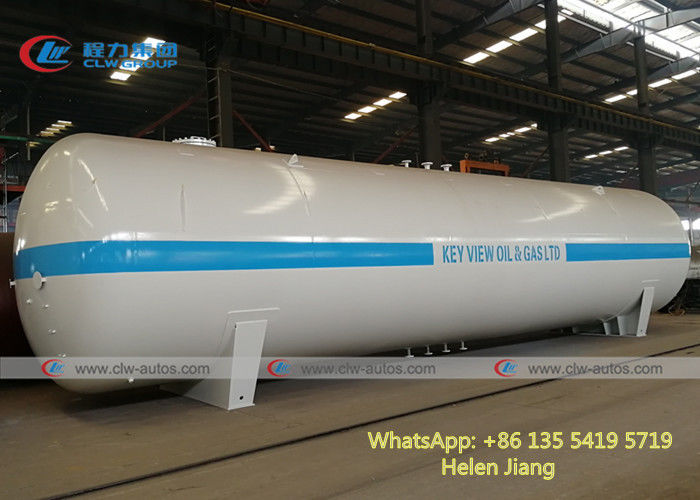

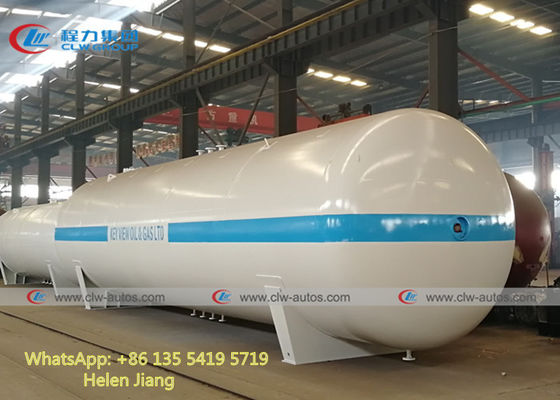

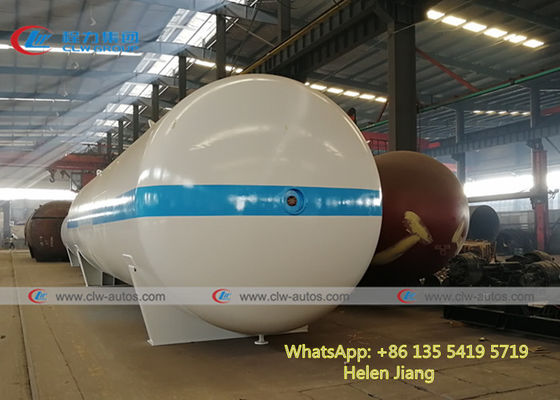

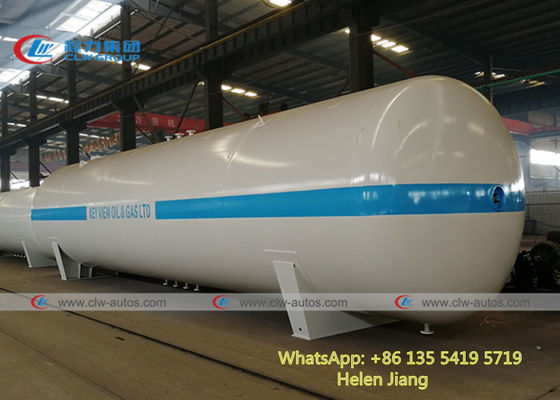

Product 80000Liters LPG storage tank's pictures:
Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
More Pictures for LPG Gas Storage Tanker
-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;
-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;
-- Design pressure of Underground LPG tank: 1.77Mpa;
-- hydraulic testing pressure:2.21 Mpa;
-- Corrosion allowance: 1mm;
-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.
Our Service
1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
