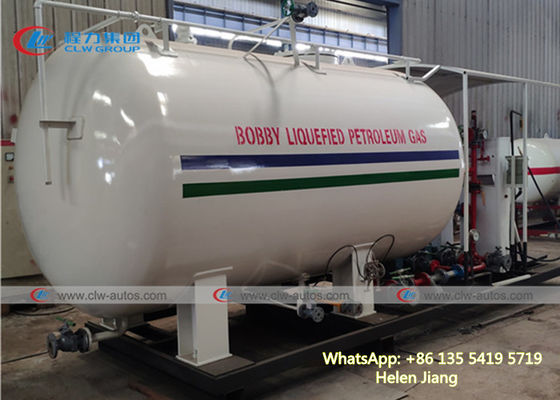

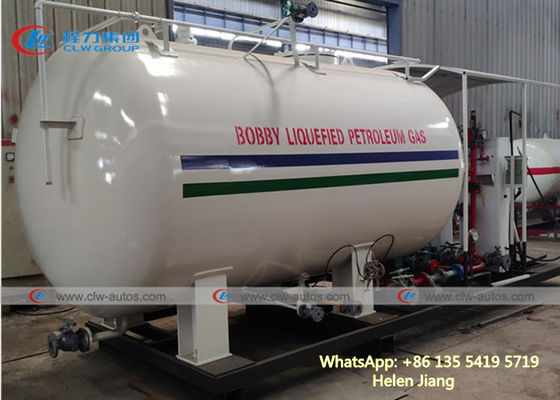

10000L 5T LPG Skid Station Diameter 1600mm For Cylinder Filling

10000L 5Tons LPG Skid Station LPG Cylinder Filling Tank Plant 5MT 5 Tons LPG Gas Refillng Plant

Product Description

LPG refilling plant (also called gas refilling plant,cylinder refilling plant,lpg refilling plant,cylinder refilling station,lpg skid station,skid lpg station,propane skid station,propane bottling plant) is a completed mini lpg station composed with lpg tank,lpg pump and motor,cylinder weighting and filling machine,valves and pipeline.Propane refilling station is used to refill cylinders,suitable for limited land space.Usually 5tons and 10tons propane refilling station will be located next to a fuel refilling station and offer cylinder bottling service.

Feature

1. lpg refilling plant for cooking gas refilling in home use cylinder in different size.
2. One Propane refilling plant with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3. Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4. Pump of Propane refilling plant is optional: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand.
5. Motor of Propane refilling plant: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole station system
8. Other Equipment: Sunshade for filling area, Leakage Detector,ex-plosive lamp

Product Specification for 10000Liters 5 tons LPG skid station;

5Tons LPG Skid Tank 10CBM LP Gas Filling Station with two filling points

is mainly used for cooking gas storage and LPG Cylinders refilling. our tank is designed for 30 years life. the skid plant is using China top quality pump, compressor, valves, meters and filling scales. The filling scales is digital. The filling speed is 1minite for 25kg cylinder. one scales can fill 100-200pcs cylinders. So one plant can use to refill 200-400cylinders every day. We sold hundreds of LPG Skid Plants to Nigeria, Kenya, Zimbabwe, Bangladesh, Cambodia etc every year.

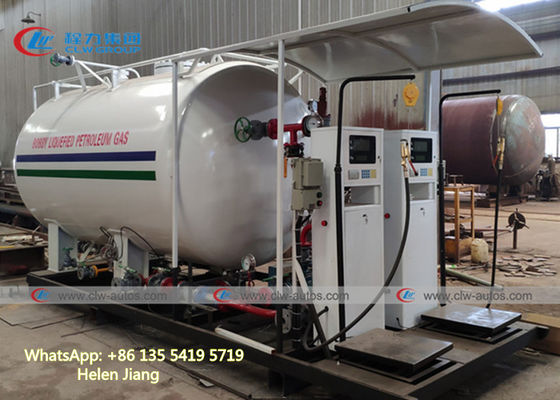

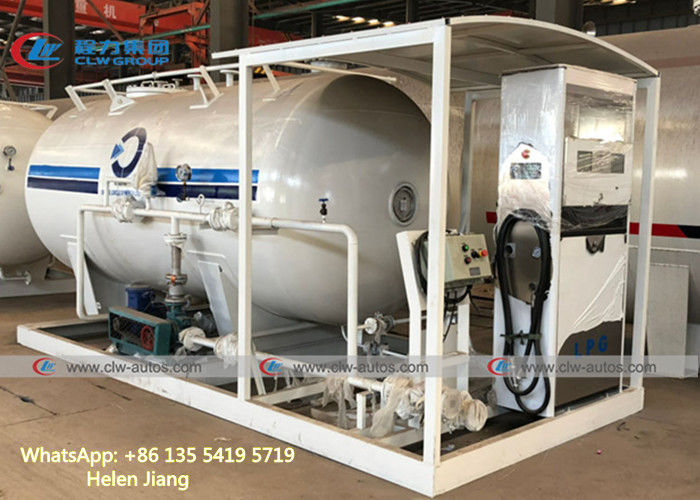

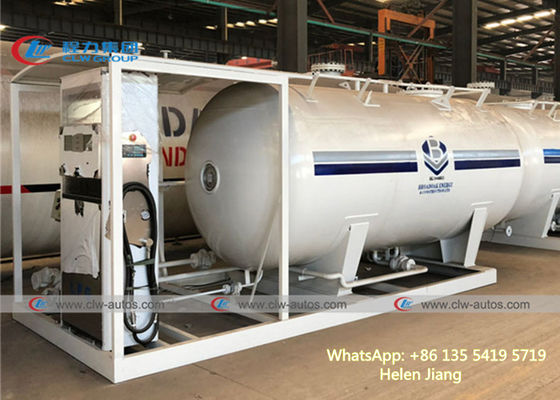

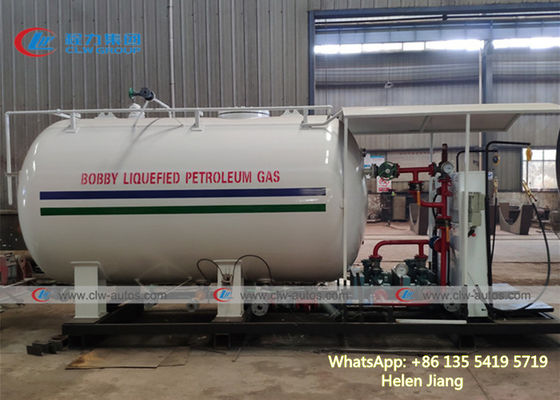

Product 5 tons 10MT 10000Liters LPG skid station's pictures:

Pictures of LPG gas plant with the accessories:

Production Process for LPG storage tank:

-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;

-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;

-- Design pressure of Underground LPG tank: 1.77Mpa;

-- hydraulic testing pressure:2.21 Mpa;

-- Corrosion allowance: 1mm;

-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.
