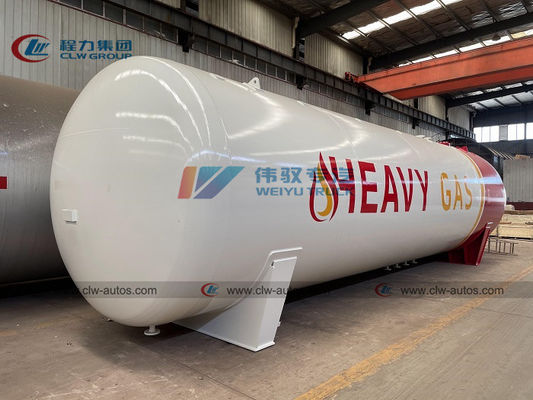

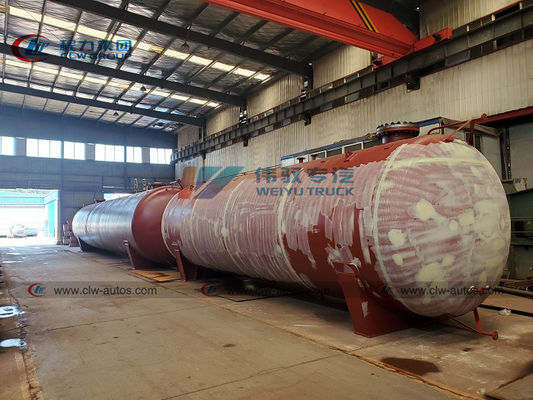

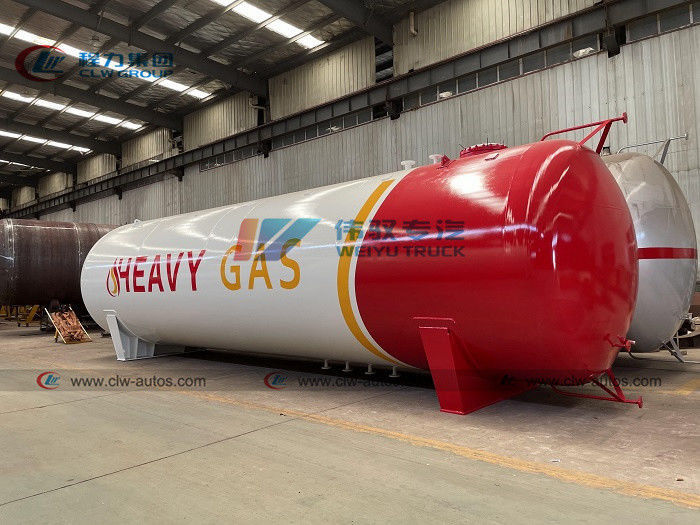

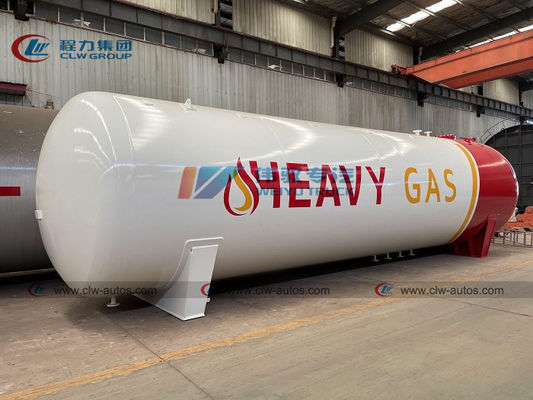

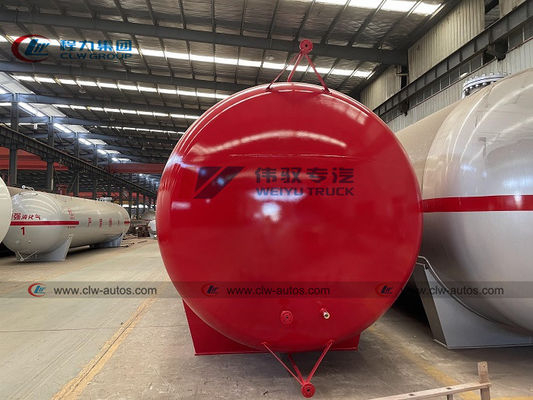

60cbm LPG Plant 60000 Liters 30 tons liquid petroleum gas storage tank

Duży Obraz : 60cbm LPG Plant 60000 Liters 30 tons liquid petroleum gas storage tank

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ASME,CCC,SGS,BV
Numer modelu:	CLW9521BPH

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagie opakowanie, statek masowy, rolka
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Środek wypełniający:	Gaz kuchenny, propan, LPG, gaz, butan	Gęstość gazu:	420 kg/m3
Materiał cysterny:	Q345R, 16MnDR, Q370R, SA516Gr70, SA517 itp.	Pojemność ładowania:	30 ton, 30 ton, 30 ton, 30 m itp.
Rozmiar zbiornika:	60m3, 60cbm, 60000litrów, 600000L	Rozmiar całkowity (długość x szerokość x wysokość):	1096227283318 (mm)
Średnica zbiornika:	DN2700mm itp.	Grubość zbiornika:	Skorupa 14mm, główka 16mm.
Presja projektowa:	1,71Mpa/17,1bara, 1,77Mpa/17,7bara, 1,61Mpa/16,1bara	Ciśnienie próby hydraulicznej:	2,21 MPa 22,1 bara
Temperatura projektu:	-20 ℃ ~ 50 ℃	Dodatek korozji:	1 mm
Czas na całe życie:	20 lat	Logo i kolor:	Zgodnie z życzeniami klienta
Podkreślić:	GB150 Liquid Propane Gas Tank , 30 Ton Liquid Propane Gas Tank , 60000 Liter LPG Gas Storage Tank

60,000Liter 30tons Liquid Petrolum Gas 60cbm 30mt LPG Storage Tanker

Product Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc.
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

Product Specification

60CBM LPG Tank Specifications
Volume of Tank		60 CBM
Filling Weight		33060 kg
Tank Weight		12750 kg
Thickness of Shell (mm)		14 mm
Thickness of Head (mm)		16 mm
Tank Diameter		2700 mm
Overall Size (length x width x height)		1096227283318(mm)
Material of Tank		Carbon Steel Q345R
Design Pressure		1.77 MPa
Hydraulic Test Pressure		2.22 Mpa
Design Temperature		-20℃~50℃
Heat Treatment		Bulk
Corrosion Allowance		1 mm
Medium Density		580 kg/m³
Vapor Outlet		DN50
Gas Outlet		DN50
Life Time		15 years
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Standard Accessories of LPG Tank
Model	Item		Qty	Junction Surface
A42F-25-100	Safety Valve DN100		1	RF
J41N-2.5-50	Stop Valve DN50		6	RF
J41N-2.5-25	Stop Valve DN25		2	RF
J41N-2.5-100	Stop Valve DN100		1	RF
J24W-320-DN6	J24W Needle Valve M20*1.5		1	/
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5		1	RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa		1	/
WTQ-280	Thermometer M33*2 2.5 degree		1	-40℃~60℃

We supply customized drawing for every storage tank
60cbm LPG Plant 60000 Liters 30 tons liquid petroleum gas storage tank 0

Nozzle data
Characters	Size	Pressure(MPa)	Connect	Junction surface	Purpose
a	DN50	25	HG20592-WN	RF	Drain outlet
b	DN50	25	HG20592-WN	RF	Liquid phase outlet
c1-2	DN50	25	HG20592-WN	RF	Gaseous phase balanced outlet
d	DN50	25	HG20592-WN	RF	Liquid inlet
e	M33*2			Screw-thread	Thermometer connection
f1-2	DN25	25	HG20592-WN	RF	Lever gauge connection
g	M20*1.5			Screw-thread	Pressure Gage
h	DN100	25	HG20592-WN	RF	Safety valve connection
i	DN50	25	HG20592-WN	RF	Emptying mouth
j	DN450	25	HG20592-WN	FM	Manhole

Structure Diagram of LPG Storage Tank
60cbm LPG Plant 60000 Liters 30 tons liquid petroleum gas storage tank 1

After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea For More Details: +86 155 2791 1810.

FAQ

Q1: What kinds of LPG storage tank I can order from your company?

A: We can supply different sizes LPG storage tank as client's request. Basically speaking, we can supply 5CBM to 200CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of LPG storage tank?
A: Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011

Q3: Can we adopts International brand parts or accessories for LPG storage tank?
A: Sure, we already cooperated with many international brand suppliers.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
