Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck

Duży Obraz : Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC, ISO, BV, SGS
Numer modelu:	CLW5107GBL

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Naga paczka z woskiem
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek / miesiąc

Kontakt

Szczegółowy opis produktu

Marka podwozia:	Dongfeng, Foton, Isuzu, Sinotruk howo itp.	Typ:	Typ podnośnika hakowego
Rozmiar pojemnika na śmieci:	12 cbm, 12 000 litrów, 13 cbm, 13 000 litrów itp.	Pojemność ładowania:	7t, 8t, 9t, 10ton itp.
Grubość pudełka:	Bok 4 mm, dół 5 mm, stal węglowa Q235B	Materiał ochronny:	Stal węglowa Q235A
Załadunek i rozładunek:	Układ hydrauliczny	System sterowania:	Wielozaworowy
System operacji:	Sterowanie automatyczne i ręczne	Kontener zwiń na czas:	50-60 lat
Czas zjazdu kontenera:	40-50 lat.	Logo i kolor:	Zgodnie z żądaniem klienta
Gwarancja:	1 rok
Podkreślić:	13cbm Hook Lift Garbage Truck , Hydraulic Arm Hook Lift Garbage Truck , Dongfeng Hook Lift Truck

Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck

Product Description
1. Garbage Bin with different size options of waste collection truck: 2cbm to 20cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.

Product Specification

Unit	Parameters
Overall Dimension(LWH)	mm	750024703150
Tank Cubage	m3	13
Entrance Width	mm	2000
Loading Capacity	mt	3-4
Max Loading Mass	kg	7945
Gross Vehicle Weight	kg	15800
Compressing Ratio	°	>=1:4
Max Hydraulic Pressure	Mpa	19.6
Loading Cycle Time	s	<=30
Discharging Time	s	<=45
Max Torsion/Rev	N*m/r/m	900/1400;925/1400;970/1400
Engine Model		Cummins 190HP
Emission		Euro 2, or 3, or 4
Fuel Type		Diesel
Max Driving Speed	Km/h	95
Chassis Model		Option:Dongfeng,Isuzu,Hino,Sinotruk,JAC,FAW,Foton...
Wheel Base	mm	4700
Front/Rear Axle	mm	4500/9000
Curb Weight	kg	7725

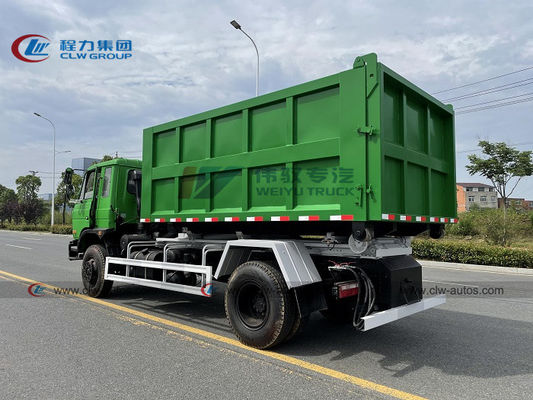

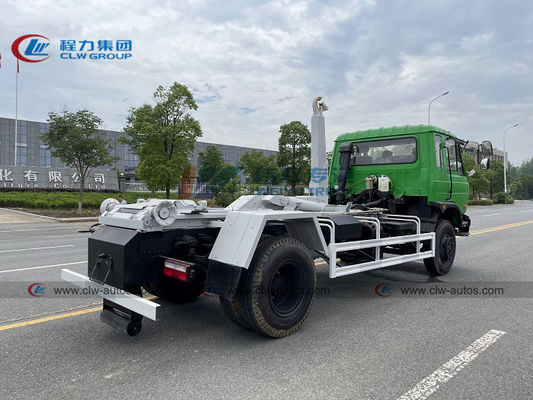

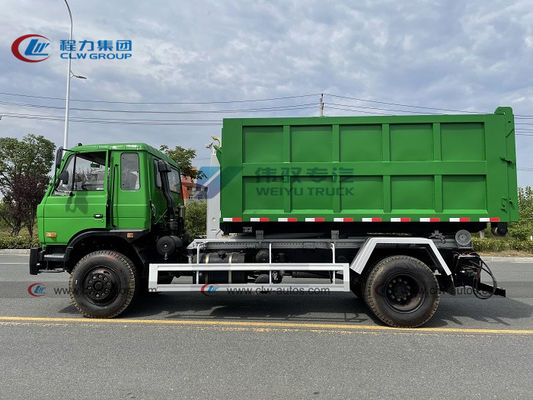

Reference Photos

Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck 0

Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck 1

Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck 2

Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck 3

Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck 4

Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck 5

Hydraulic Hook Arm System Structure

Main Parts

Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck 7

Different Types of Garbage Truck

Factory Price 13,000L China Dongfeng Hydraulic Arm System 13cbm Hook Lift Garbage Truck 9

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.

FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different sizes and types garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of garbage truck products?

A: China GB local standard.

Q3: Can we adopts International brand fuel pump for garbage truck?

A: Sure, we already cooperated with many international brand supplier.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
