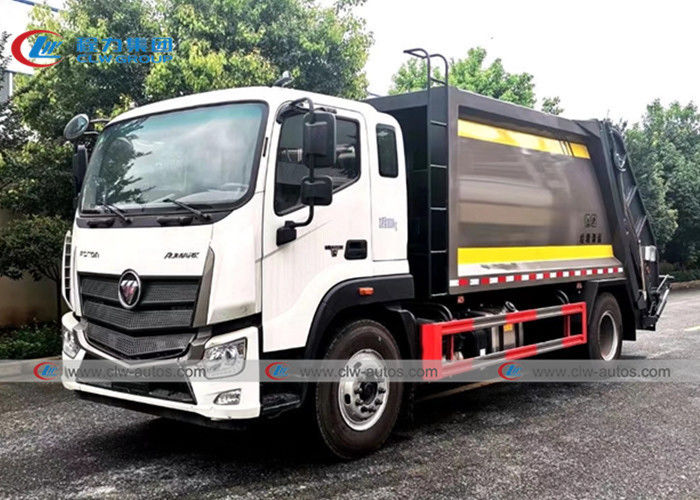

FOTON AUMAN 6 Wheeler 12M3 Garbage Compactor Truck

Duży Obraz : FOTON AUMAN 6 Wheeler 12M3 Garbage Compactor Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Hubei, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO9001, CCC, BV, SGS
Numer modelu:	CLW20210909

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	Negotiated
Szczegóły pakowania:	Nagi lub woskowany przed wysyłką
Czas dostawy:	30-35 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Nazwa produktu:	Ciężarówka do zgniatania śmieci, Ciężarówka do zgniatania odpadów sprężonych	Typ napędu:	4X2 6 KOŁÓW 6 KOŁOWYCH Śmieciarka ładowana od tyłu
Model napędu:	Kierownica po lewej stronie, kierownica po prawej stronie, RHD	Pojemność ładowania:	6 ton, 8 ton, 10 ton, 6T, 7T. 8T, 10T
Marka ciężarówek:	Sinotruk/Sinotruck HOMAN, shacman, FAW, FOTON, jac	Typ zakładki:	Samochód do zbierania śmieci.
Inne wyposażenie:	z układem hydraulicznym	Stan:	Marka China HOMAN, fabrycznie nowa ciężarówka
Typ paliwa:	Diesel	Zapewniona obsługa posprzedażna:	Dostępna pomoc innych firm za granicą, pomoc online, pomoc techniczna wideo, bezpłatne części zamien
Typ transmisji:	Podręcznik	Standard emisji:	Euro 3, Euro 4, Euro 2
Typ ciężarówki:	Kompresor śmieci, zgniatarka śmieci	Moc silnika:	150-250 KM
Nazwa:	nowe samochody do zgniatania śmieci, ciężarówka do recyklingu zgniatarek śmieci
Podkreślić:	12M3 Garbage Compactor Truck , FOTON AUMAN Garbage Compactor Truck , FOTON AUMAN Compressed Garbage Truck

FOTON AUMAN 6 Wheels Cummins Engine 12M3 12CBM Compressed Garbage Compactor Truck

Product Description:

1. foton Auman chassis with weichai engine

2. compactor garbage truck capacity 8-12 cubic meters

3. ISO 3C certification

4. one year warranty

Detailed Specification for FOTON AUMAN truck chassis with Cummins Engine:

Cabin		Left rudder/half row
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	8325×2462×2750
Whole vehicle main dimensions	Wheel base(mm)	4800
Weight data	Curb weight(kg)	4770
	Gross vehicle weight(kg)	22000
	Persons in cab (persons)	2
Engine	Model	ISB220 40
	Emissions standards	EURO-IV
	Displacement(L)	5.9
	Rated Power	162
	Max torque	800
Gearbox	Model	8JS105TA
Clutch	Type	Single dry diaphragm spring
Front axle	Type	5.5.T
Rear axle	Type/Mainreducetion ratio	10T/4.875
Suspension	Front suspension/Leaf spring number	Non-independent suspension longitudinal plate spring /10
Suspension	Rear suspension/Leaf spring number	Non-independent suspension longitudinal plate spring /10+8
Brake system	Service brake	Drum-type pneumatic brake
Brake system	Parking brake	Barely able to brake
Basic equipment		Hydraulic turn-over/cruising manual air conditioning/radial tire with inner tube 10.00R20/ manual door and window and rearview mirror/front + rear stabilizer bar /MP3 / power steering/knit shock absorber seat (air bag)

Upper equipment for FOTON AUMAN Garbage Compactor truck:

Technical Parameters	Effective volume of trash bin	10-15m³
	Filler volume	1.5m³
	Rated pressure of hydraulic system	19(Mpa)
	Loader working time	≤25(mm)
	Trash dumping time	≤40(s)
	Filler lifting time	≤12(s)
	Wastewater tank volume	≥300(L)
	Manipulator flip quality	≥600(Kg)
	Back flip form	Hanging bucket
Top material (Curved box)	Front box	5mm bottom plate, 4mm side plate, 3mm top plate, Q345 steel plate
	Dozer	Q345B steel plate
	Stuffer	Q345B steel plate
	Scraper skateboard assembly	Q345B steel plate
	Rear flip device	Q345B steel plate and profile
	Subframe material	Made of Q345 manganese plate
Hydraulic system	Cylinder	Foshan naval power
	Oil pump	Hefei Changyuan
	Multi-way valve	Hefei Changyuan
Process requirements	Corrosion inside the tank	Industrial grade anti-corrosion
	Welding and spraying requirements	Execute in accordance with "Fukuda Overseas Compression Garbage Truck Top Installation Specification"
	Glue requirements	The tank body, mudguard, sub-frame welded joints and side lights need to be treated with sealant

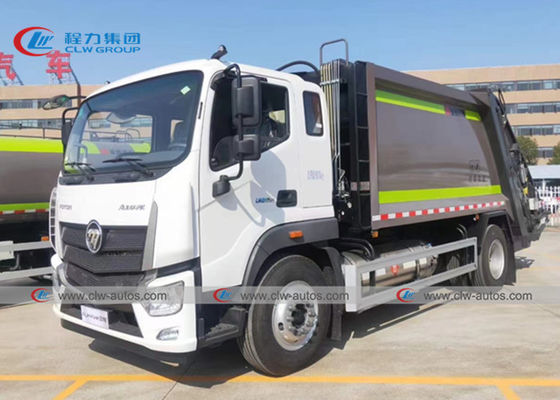

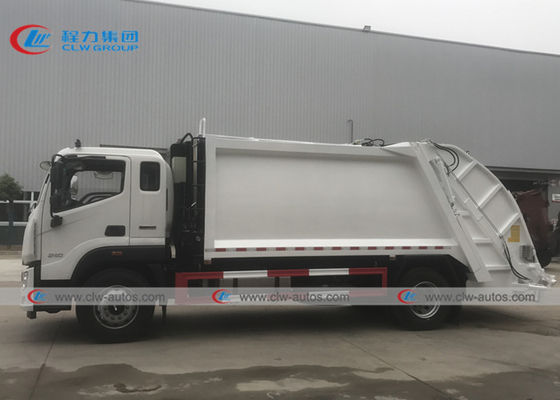

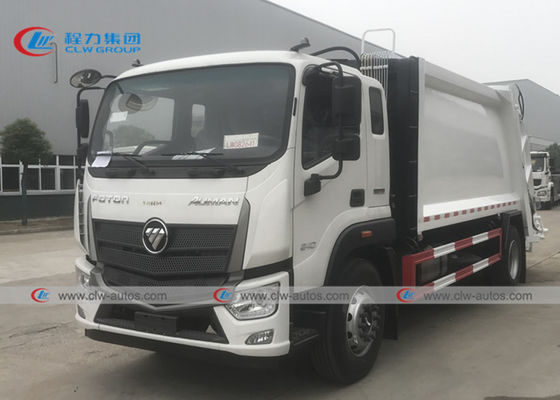

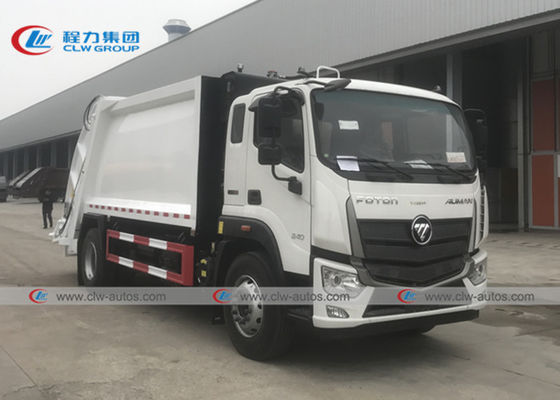

More pictures for FOTON AUMAN 6 Wheels Cummins Engine 12M3 12CBM Compressed Garbage Compactor Truck:

FOTON AUMAN 6 Wheeler 12M3 Garbage Compactor Truck 0

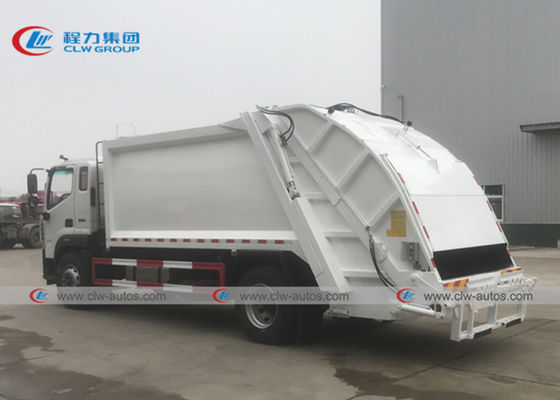

Porducts details and drawings:

FOTON AUMAN 6 Wheeler 12M3 Garbage Compactor Truck 5

Other Types of Garbage trucks:

FOTON AUMAN 6 Wheeler 12M3 Garbage Compactor Truck 6

Warranty:

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
