HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Dom ProduktyBetoniarki do betonu towarowego

LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck

Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Im Online Czat teraz

LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck

LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck
LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck

Duży Obraz :  LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck

Szczegóły Produktu:

Miejsce pochodzenia: Suizhou, Hubei, Chiny
Nazwa handlowa: CLW
Orzecznictwo: ISO9001, CCC, BV, SGS
Numer modelu: CLW20210911

Zapłata:

Minimalne zamówienie: 1 jednostka
Cena: Negotiated
Szczegóły pakowania: Nagi lub woskowany przed wysyłką
Czas dostawy: 30-35 dni po otrzymaniu wpłaty
Zasady płatności: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply: 500 jednostek miesięcznie
Szczegółowy opis produktu
Materiał cysterny: Stal węglowa Q345B Nazwa produktu: Ciężarówka do natryskiwania pasty cementowej do nawierzchni betonowej
Typ napędu: 4X2 6 KOŁÓW 6 KOŁÓW Model napędu: Kierownica po lewej stronie lub kierownica po prawej stronie
Pojemność ładowania: 3M3, 4M3 5m3 6m3 Mały typ Marka ciężarówek: Sinotruk/Sinotruck HOWO, shacman, FAW, FOTON, jac
Inne wyposażenie: Silnik pompy hydraulicznej, dysze natryskowe SILNIK: Silnik Diesla Yuchai
Typ ciężarówki: Do sprzętu budowlanego. Marka hydrauliczna: Marka chińska lub włoska
Podkreślić:

5M3 Cement Paste Spray Truck

,

LHD Cement Paste Spray Truck

,

Dongfeng 4x2 Concrete Paving Vehicle

 Dongfeng 4x2 5M3 Concrete Paving Vehicle Cement Paste Spray Truck







Product Specification



Item
Concrete/Cement Paste Spray Truck
Chassis Brand
Dongfeng


Vehicle parameters
GVW(kg)
7360
Overall Dimension (mm)
6580×2100×2520
Curb weight (kg)
5380
Steering Wheel
LHD
Wheelbase (mm)
3360
Driving Type
4*2


Engine parameters
Engine Brand
Dongfeng
Model
CY4100Q
Emission Standard
Diesel, Euro 3
Horse Power(hp)
82
Displacement
3700ml
4 stroke,4-cylinders in line, water cooling
Gear Box
6 speed, Manual




Performance Parameter
Max Speed (km/h)
90
Front Axle
1503
Cab Seat
3,2
Rear Axle
1494
Leaf Spring
6/6+5
Front Suspension
1040
Tire No.
6+1
Rear Suspension
2010
Tire Specification
7.00-16
Approach Angle
19
Axle No.
2
Departure Angle
11




Upper Structure
Tank Volume
5CBM
Tank Material
Carbon steel
Equipment
Hydraulic Pump & Motor, Spay Nozzles etc

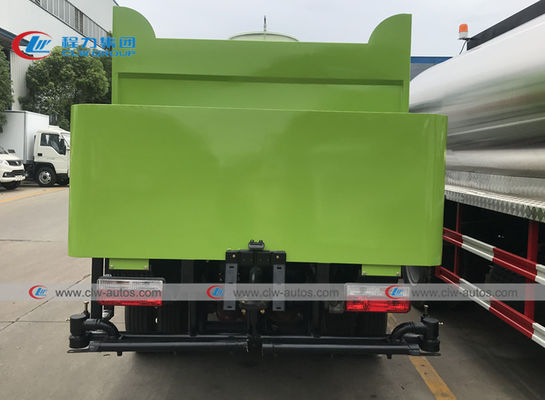

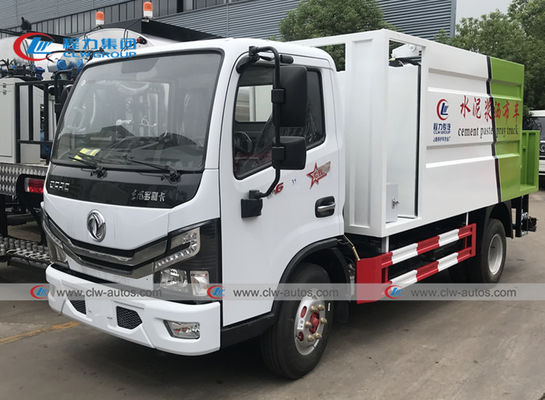

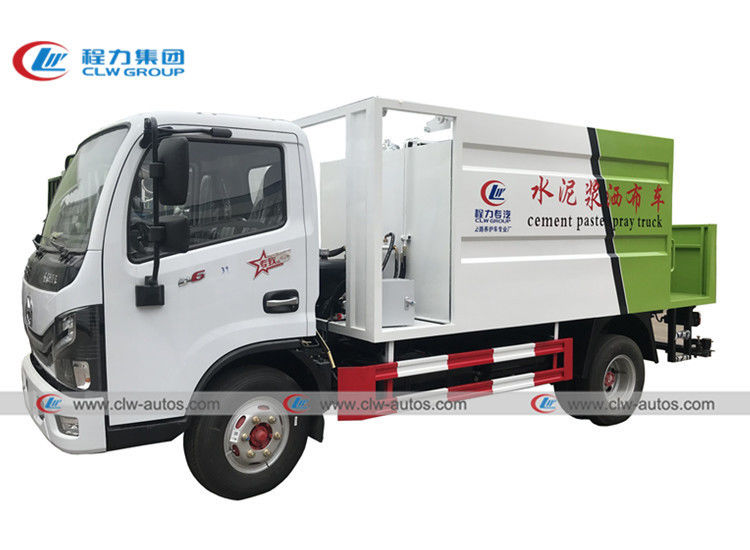

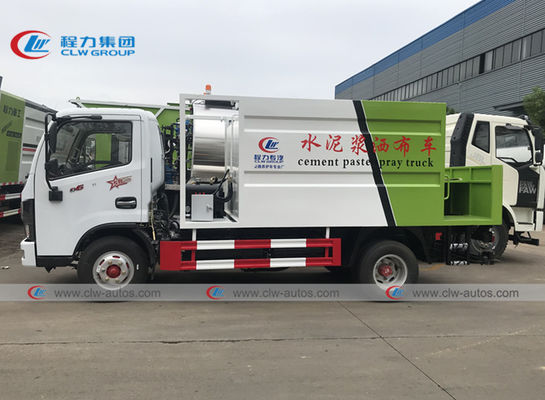

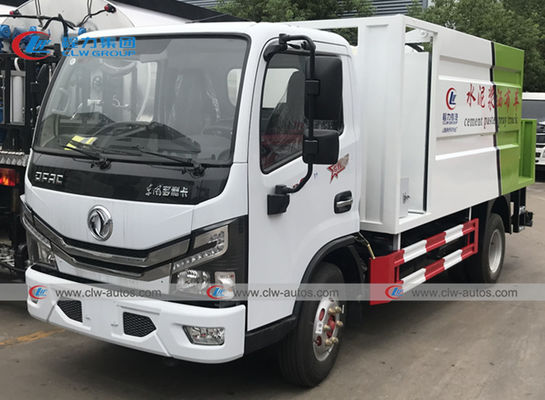

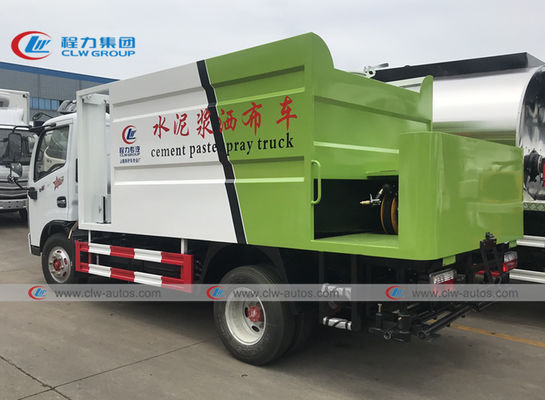

More Detailed pictures of Dongfeng 4x2 5M3 Concrete Paving Vehicle Cement Paste Spray Truck:

LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck 0LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck 1LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck 2LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck 3LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck 4LHD Dongfeng 4x2 5M3 Cement Paste Spray Truck 5



Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



FAQ



Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
