ISUZU 4x2 6 Wheeler 10T Refrigerator Van Truck

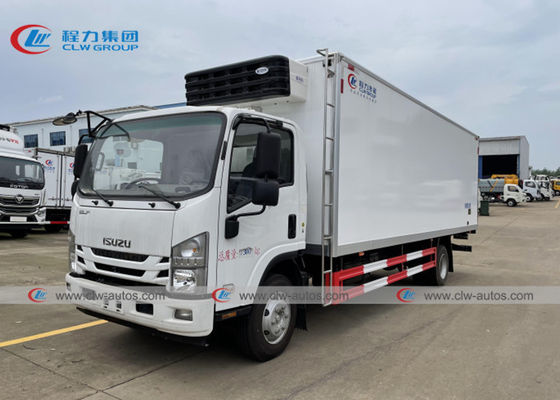

Duży Obraz : ISUZU 4x2 6 Wheeler 10T Refrigerator Van Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Hubei, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO9001. BV, SGS
Numer modelu:	CLW20210913

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	Negotiatable
Szczegóły pakowania:	Nago lub woskowany przed dostawą
Czas dostawy:	25 dni roboczych
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Materiał pudełkowy:	włókno szklane lub stal nierdzewna	Część opcjonalna:	Hak do mięsa, kanał powietrzny, drzwi boczne, platforma tylna
Tworzywo:	panel z włókna szklanego	Warstwa izolująca:	Pianka poliuretanowa o grubości 8 cm
Jednostka chłodnicza do samochodów ciężarowych:	Thermoking, przewoźnik lub chińska alternatywa	Obowiązująca temperatura:	-18~0
Typ pudełka:	3-warstwowa kanapka	Warstwa zewnętrzna:	włókno szklane
Środkowa warstwa:	Izolacja z pianki PE o grubości 8 mm	Warstwa wewnętrzna:	włókno szklane lub stal nierdzewna
Marka ciężarówek:	Sinotruk HOWO, FAW, ISUZU, FOTON, SHACMAN itp	Typ napędu:	Lewą rękę
Model napędu:	4X2, 6 kół, 6 kółek
Podkreślić:	10T Refrigerator Van Truck , ISUZU 4x2 Refrigerator Van Truck , ISUZU 4x2 Refrigerator Box Truck

ISUZU 4x2 6 Wheeler 10Tons Refrigerator Truck with Cooling Van

Japan refrigerator Truck For Sale NEW Cargo Truck For Transport Fresh Meat And Ice Cream Cooling Van

Description:

1. Purpose: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts: Refrigerating unit and control system.
3. Features: International chassis brand and International refrigerating unit brand for optional.

Advantages of Insulated Freezer Van body:

1. Thermo King refrigerated trucks for sale ,kingtec mini refrigerated trucks ,hanya refrigerated trucks for sale,Lamberte refrigerated trucks for sale ,Chereau refrigerated trucks for sale
2. Dongfeng refrigerated trucks for sale,howo refrigerated trucks for sale, Foton refrigerated trucks for sale, Jmc refrigerated trucks for sale
3. -20 degree to -18 degree refrigerated trucks for sale
4. refrigerated trucks for sale ,Brand new refrigerated trucks for sale
5. 3ton Foton, JAC, JMC small freezer truck thermo king meat transportation cooling van truck mini refrigerated trucks for sale

Speicfiation:

General Technical Parameters
Overall Dimension	6000×2500×3300(mm)		Gross Vehicle Weight	9000(Kg)
Curb Weight	3900(Kg)		Loading Weight	5000(Kg)
Chassis Specification
Chassis parameters	Chassis Brand		ISUZU
	Cabin		Single, Left Hand Driving, with A/C
	Engine	Model	4KH1-TCG4O, 4 Cylinders
		Power	88KW/120HP
		Emission standard	EURO IV
		Displacement	2.999L
		Fuel type	Diesel
	Gearbox		MSB, 5 Forward & 1 Reverse Gear
	Front and Rear Axle load		2.5T/4.8T
	Wheel base		3360(mm)
	Overhang( Front/Rear)		1130/1505(mm)
	Angle(Approach/departure)		20/16(°)
	Brake System		Oil brake
	Steering Gear		Power Assistant
	Tire		650-16, 6 Pieces with 1 Spare Tire
	Maximum speed		105(km/h)
Superstructure
Van	Box size		4100×2300×2100(mm)
	Material		Fiberglass
	Insulating Layer		8cm Polyurethane Foam
	Brand		THERMOKING
Truck refrigeration unit	Model		KV300
	Applicable temperature (ºC)		-18~0
Remarks	Part Optional: Ventilation slot Hook External power supply Side door

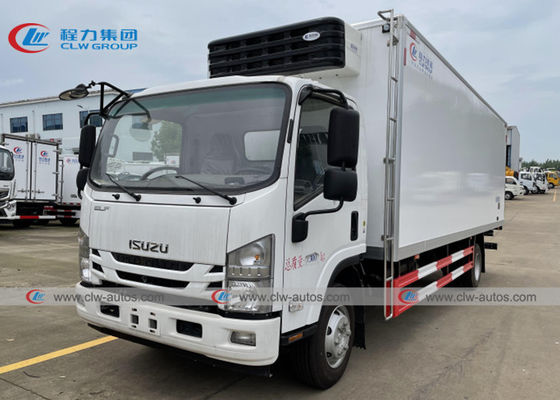

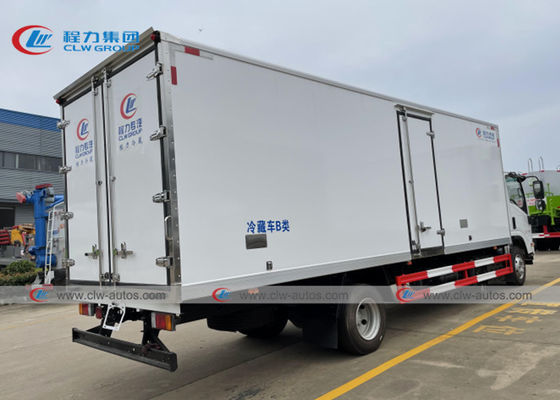

More Pictures:

ISUZU 4x2 6 Wheeler 10T Refrigerator Van Truck 0

Refrigerator Units:

ISUZU 4x2 6 Wheeler 10T Refrigerator Van Truck 5

Technical Data for Refrigerator Freezer :

Model	T110F	T230F
Temperature rating in container	-18°C~+25°C
Cooling capacity(W)	800(-18°C)	1200(-18°C)
Volume of container(m³)	2~5(-18°C)	5~9(-18°C)
Voltage	DC12/24V
Compressor	SD5H11	SD5H14
Refrigerant	R404a 1.0~1.1kg	R404a 1.3~1.4kg
Dimension of Evaporator	510600138mm	550695165mm
Dimension of Condenser	865700185mm	1020865210mm

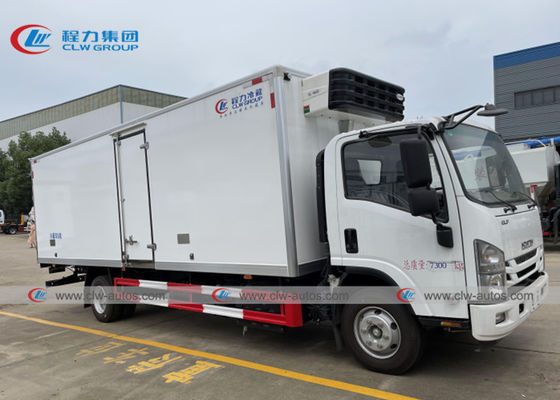

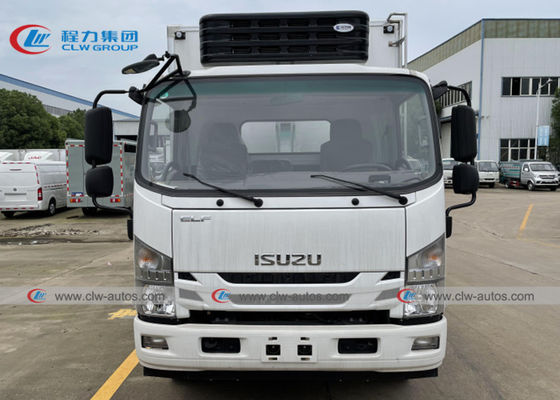

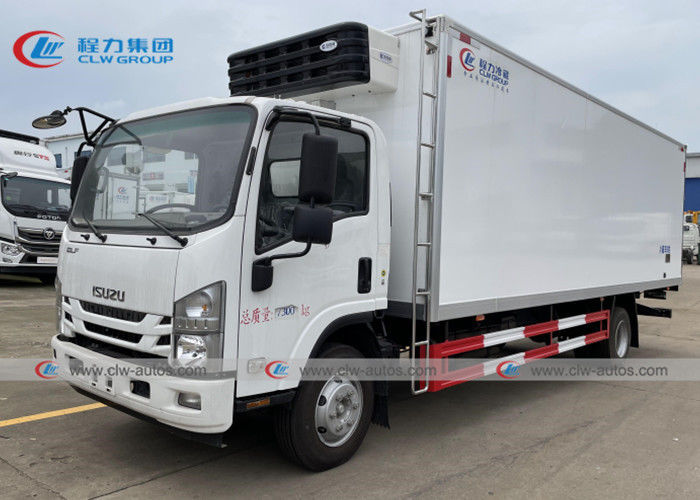

More pictures of refrigerator truck:

ISUZU 4x2 6 Wheeler 10T Refrigerator Van Truck 6

ISUZU 4x2 6 Wheeler 10T Refrigerator Van Truck 7

FAQ:

1. How can I select correct unit?

It is important to select the proper transport refrigeration unit depend on the size of the truck and your purpose of usage. Please refer the selection guide from the technical information or please contact us by e-mail. We will help you to choose correct unit for your use.

2. Can I have a price of King Thermo units?

Every King Thermo dealer is empowered to establish his or her own pricing policies. This includes parts as well as transport refrigeration units. Please find your nearest local dealers and they will kindly provide you the best service. If you can’t find any dealers in your country, please send us inquiry by e-mail, phone or fax. Also our inquiry form on the quick menu is provided for your convenience.

3. What payments way that you accepted?

T/T, WEST UNION, L/C, Credit Card and so on...

4. How about spare parts supply and warranty term?

We will offer free wearing parts per to order quantity and provide 12 Months Warranty for your transport refrigeration unit spare parts change.

5. How to be a King Thermo distributor?

If we have a transport refrigeration unit dealer or distributor in your area, sorry it is impossible to deal with us directly. If we don't have a representative in your country, it is possible to deal with us as long as your company meet our requirement. Please contact us by inquiry on the quick menu or e-mail to us.
