25cbm Q345R SA516 tank LPG Cylinder Filling Station

Duży Obraz : 25cbm Q345R SA516 tank LPG Cylinder Filling Station

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC ISO ASME
Numer modelu:	CLW7321

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	18,890-26,850usd
Szczegóły pakowania:	Nagi pakiet
Czas dostawy:	W ciągu 30 dni po otrzymaniu zaliczek
Zasady płatności:	Akredytywa, T/T
Możliwość Supply:	200 jednostek / miesiąc

Kontakt

Szczegółowy opis produktu

Zapewniona obsługa posprzedażna:	Dostawa części zamiennych i wsparcie inżynieryjne	Objętość tankowca:	25 CBM/25000 litrów/10 ton/10 ton
Materiał zbiornika:	Q345R/SA516	Materiał ładujący:	Propan/skroplony gaz ropy naftowej/LPG
Presja projektowa:	1,77MPA	Średnia gęstość:	20Kg/m3 450Kg/m3 460Kg/m3 480Kg/m3 500Kg/m3 520Kg/m3 540Kg/m3
Badanie właściwości mechanicznych:	Próba rozciągania, wytrzymałości, uderzenia	Grubość skorupy i płyty końcowej:	12 mm
Stan:	Nowe drukowane	Kolor:	Klienci'
Używać:	LPG,LPG/PROPAN	Gwarancja:	1 rok
Podkreślić:	Q345R Tank LPG Cylinder Filling Station , SA516 Tank LPG Cylinder Filling Station , 25cbm LPG Bottle Filling Stations

25000 Liters 25cbm LPG Skid Station Mobile LPG gas plant LPG skid cylinder filling station for cooking gas

Product Description

LPG skid station volume: 25m3, 25cbm, 25000L, 25000 liters;
LPG skid plant tank diameter: 1800mm, 2100mm, 2000 mm, 2200 mm, ;
LPG Filling skid Station tank material: Q345R, Q370R;
Accessories: LPG dispenser , LPG pump, Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, other pipe etc.
Designing pressure:1.77 Mpa Designing temperature: -20 °C to 54 °C.
The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity, light weight and high efficiency.
We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
There are high safety domestic or imported safety accessories for customers option.
The anti-corrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on

Competitive Advantage:

Factory direct sales, fast delivery
Lowest price comparing the same quality
High Quality, good performance,
18 months warranty, main beam whole life time grantee!
ISO, CCC, SGS, ASME certificates

Product Specifications

Volume of Tank	25CBM(25,000liters) 10.5ton
Filling Weight	9975 kg
Tank Weight	6120 kg
Thickness of Shell (mm)	12 mm
Thickness of Endplate (mm)	12 mm
Tank Diameter (mm)	2000 mm
External Dimensions (mm) (length x width x height)	830420242614mm
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas ( Propane)
Design Pressure	1.77 MPa
Corrosion Allowance	1 mm
Medium Density	420kg/cbm

Accessory list for lpg tank Filling Station

Item	Model	Unit	Quantity
Pump	YQB15	Unit	1 or 2
Electric Motor	YB3-200L	Unit	1 or 2
Float-operation hydraulic level gauge		Piece	1
Safety valve	DN50	Piece	1
Safety reverse valve	DN50	Piece	1
Check valve	DN50	Piece	2
Stop Valve	DN50	Piece	1
	DN32	Piece	1
	DN25	Piece	4
	DN20	Piece	2
	DN15	Piece	2
Flexible Hose	L=4M DN50/25	Set	1
Shock-proof pipe	L=500mm DN50	Piece	1
Filling Gun hose	L=2M	Set	3
Elbow Cap	DN65	Piece	2
Elbow Cap	DN50	Piece	10
Flange	2.5MPaDN65	Piece	1
	2.5MPaDN50	Piece	10
	2.5MPaDN32	Piece	1
	2.5MPaDN25	Piece	8
	2.5MPaDN15	Piece	10
Metal gasket	DN65	Piece	5
	DN50	Piece	10
	DN32	Piece	2
	DN25	Piece	10
	DN20	Piece	2
	DN15	Piece	30
8.8 degree bolt	16*70	Set	100
8.8 degree bolt	12*55	Set	100
Dispenser or filling scale	Single nozzle/double nozzle	Unit	1 or 2
Base Plate		Set	1
Gas Leak Detector		Unit	1
Water Sprinkler System	Manual Operation	Set	1

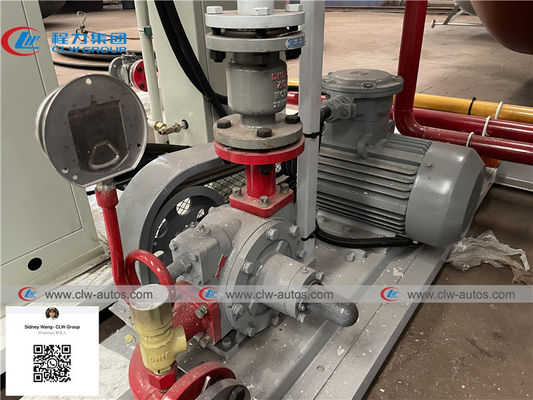

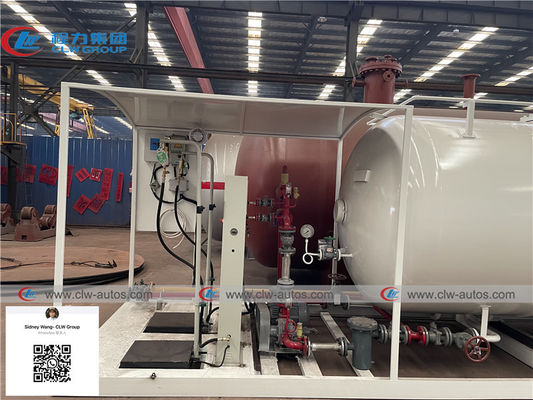

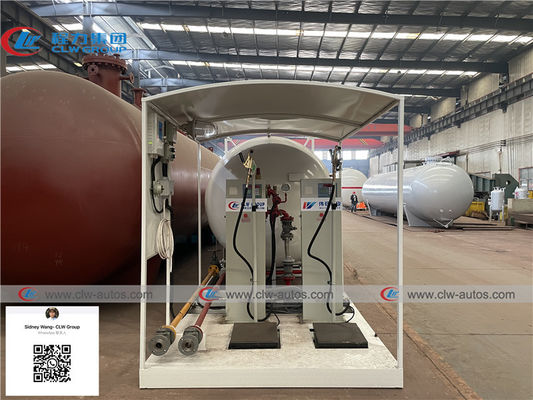

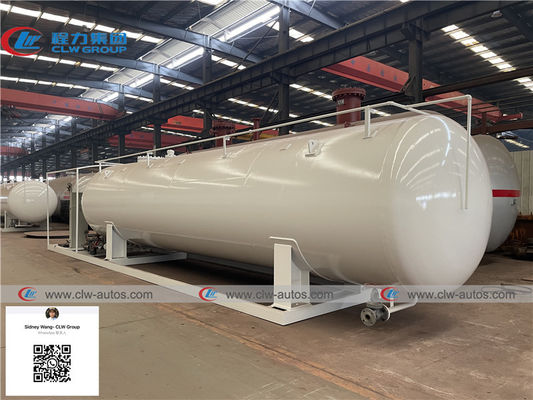

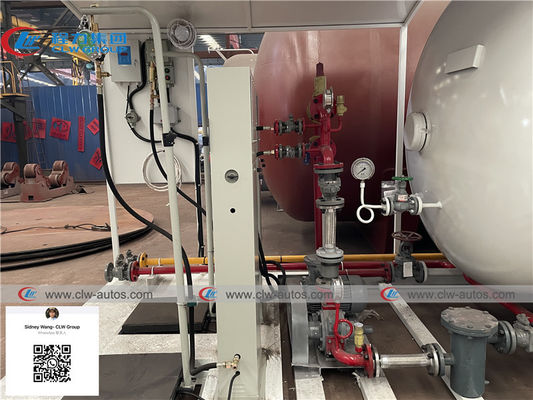

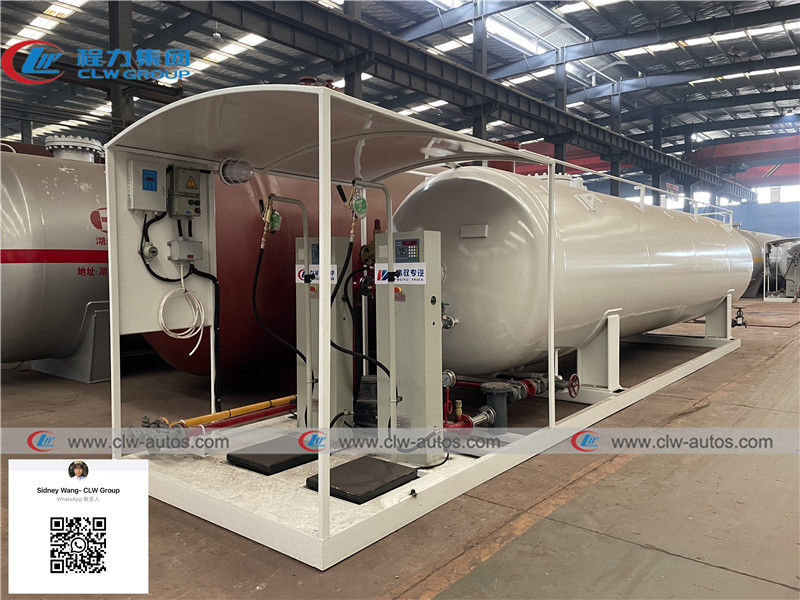

Product Pictures

25cbm Q345R SA516 tank LPG Cylinder Filling Station 2

25cbm Q345R SA516 tank LPG Cylinder Filling Station 6

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

LPG Products Warranty:

1. One year free warranty for LPG pump, compressor and filling scales.
2. Transportation warranty: our company offer Transportation insurance for customer. To ensure customer's products arrived at destination safely.
