Shacman 4x2 15000L Water Spraying Truck With Q235 Tank

Duży Obraz : Shacman 4x2 15000L Water Spraying Truck With Q235 Tank

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,ISO,GCC,BPS
Numer modelu:	CLW5836

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	USD21925-29852
Szczegóły pakowania:	Nagie opakowanie, Ro-ro, statek masowy
Czas dostawy:	20-30 dni
Zasady płatności:	L/C, T/T, D/A, D/P, Western Union, Moneygram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Tworzywo:	Stal węglowa Q235	Grubość:	5 mm
Paliwo:	Diesel	Typ jazdy:	4*2, jazda lewo/prawo
Pompa:	Znana marka w Chinach / marka międzynarodowa	Wysokość ssania:	7 metrów
Oferta Canona Wodnego:	30 metrów	Szerokość zraszania:	14 metrów
Film instruktażowy:	Tak	Użyj instrukcji:	Tak
Spray z przodu i spray z tyłu:	Tak	Gwarancja:	Jeden rok
Logo:	Zgodnie z żądaniem klienta
Podkreślić:	Shacman 4x2 Water Bowser Truck , 15000L Water Spraying Truck , Q235 Tank Water Spraying Truck

Shacman 15000Liters 15tons water bowser truck water sprinkler tank truck water spraying truck

Description:

1) Dust suppression spray device:
The closed hydraulic system is driven by the chassis full power take-off device. Thanks to the hydraulic system that directly drives the spray fan, the energy efficiency is high and the spray range is very long. The fan adopts alloy blades, and the fan has three levels silencers that make the working noise is low.

2) Low pressure flushing device

Standard devices include front duckbill flushing, cone hedging, rear sprinkler nozzle, remote water cannon, greening irrigation, pressure outlet interface, etc.

Automatic washing device is optional installed, which can move up and down, rotate around and change the shape of water column.

Advantage:

1. Water, disinfectant, dust suppressant and other liquid materials can be added in the tank, and the spray arm can rotate 360 degrees;

2. Contact induction spray system, uniform spraying, suitable for different size cars and vehicles, no spillage, spray arm with vehicle number recognition and recording function.

3. Simple operation: In the cab, all the operation functions of the vehicle can be completed.

Specifications:

Items			Parameter
Water Tank Parameter	Tank Capacity		15,000Liters
	Tank Material		Carbon Steel Q235 (Q345 for optional)
	Overall dimension (mm)	Length	8900
		Width	2500
		Height	3020
	Sprinkler Width		≥14m
	Sprinkler Speed		0-20km/h
	Gun range		≥28-30m
	Flow		40m³/h
	Rotation		360°
	Gun position		Front; Rear; two sides
Chassis	Chassis Brand		Shacman
	Drive Mode		4x2
	Tire type		9.00-20 tire
	Tire No.		6+1 units
	Max speed		90 km/h
	Cab		1. Flat roof, All-steel-welded construction 2. Spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player
Engine	Power		176kw / 240hp
	Fuel type		diesel
	Emission Standard		Euro 3 & Euro 4
Gearbox	Control type		Manual
	Gear		8 forward & 1 reverse

Reference photos

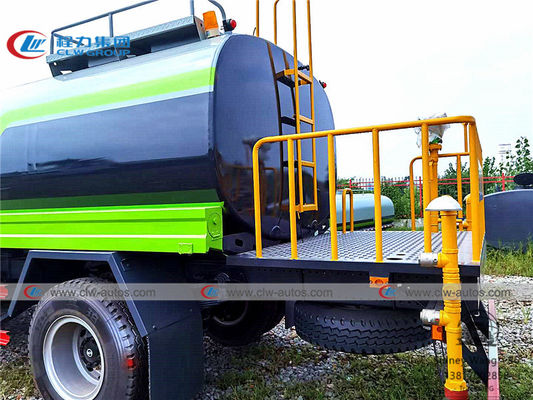

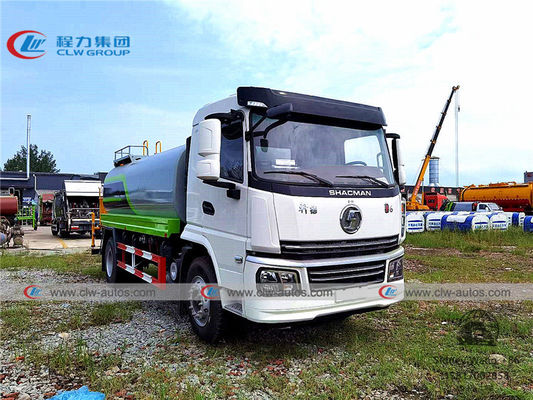

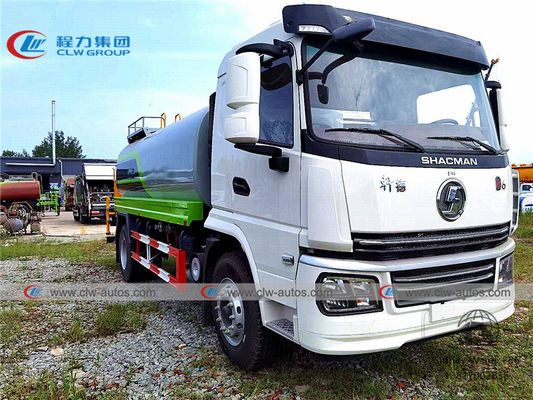

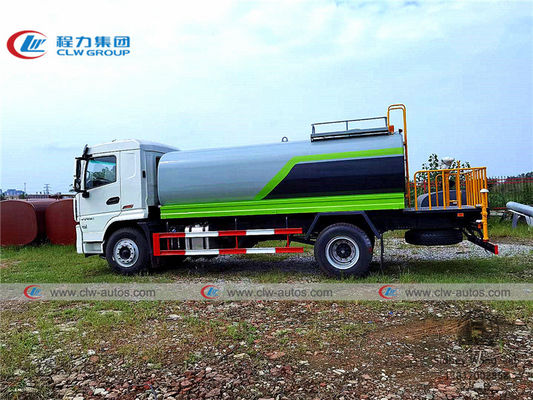

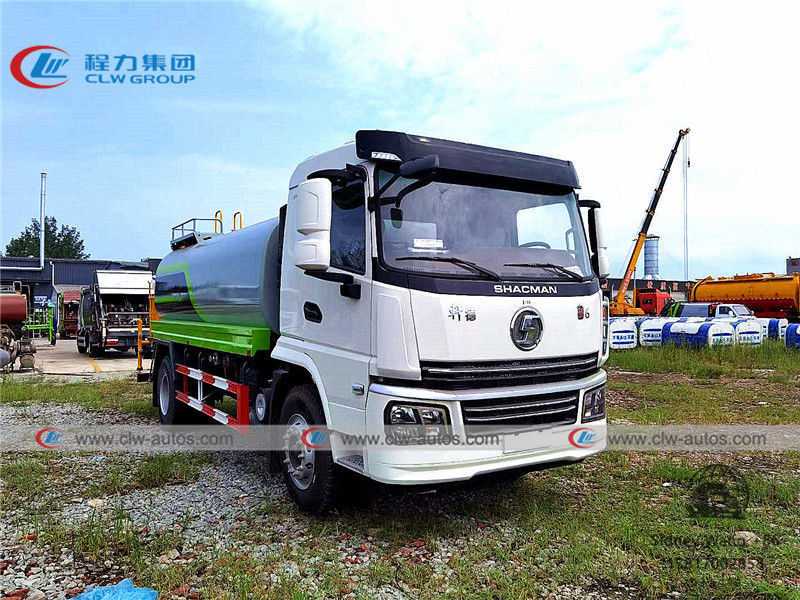

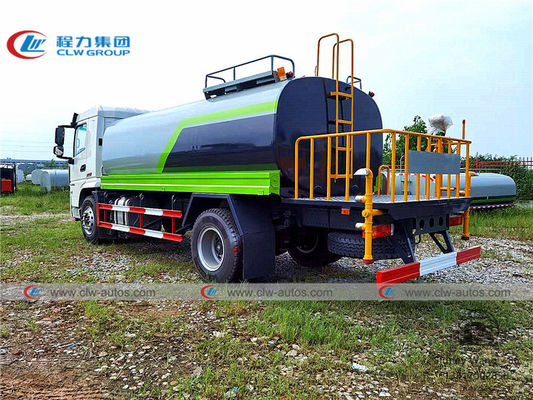

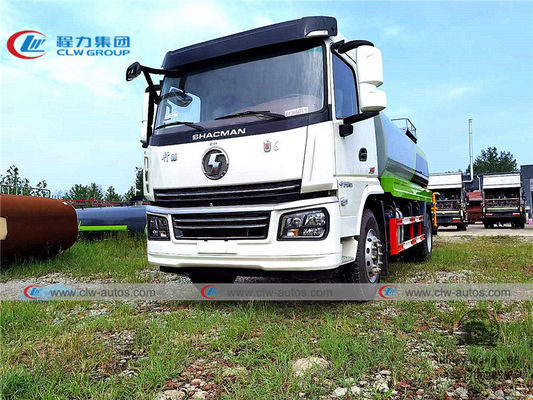

Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 0

Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 1

Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 2
Water Truck Diagram

Working Show
Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 4
Truck Details

Water bowser truck production line

Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 7

Factory overview

Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 8

Shacman 4x2 15000L Water Spraying Truck With Q235 Tank 9

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
