Howo 371HP 20 Tons Water Tanker Truck For Construction Site
Product Description
water tank truck,water tanker truck,water truck for construction site, street sprinkler, water bowser, water tanker truck or water tanker is a vehicle designed to carry water on road. Custom-built water tanks are used to deliver potable drinking water and non potable water for dust control or any other specific use that non drinking water can be used for.
The water tanker transport water that is dispensed through a pumping system either through a hose reel for delivery or through a series of spray heads and nozzles to spray the water in different directions.
Our water tankers are available in steel, stainless steel, or aluminum, and can be constructed to haul drinking water and non drinking water each with their own specific and different types of pumping systems.
Features and Specifications
• 3000–30,000 liters capacity
• Available in steel, stainless steel and aluminum
• Offset baffle opening to prevent sloshing
• Tanks designed to carry potable and non-potable water
• Chassis frame mounted rear platform area
• Rear mounted hydrant fill with an air space
• High quality, little maintenance, competitive price
• Numerous spray head, spray bar(front, rear and side) and water cannon(monitor, 360° rotatable) options available
• Numerous chassis available
product Specification
|
Truck Brand
|
SINOTRUK—HOWO
|
|
Chassis No
|
ZZ1257N4641W
|
|
Driving Type
|
Left Hand Driving
|
|
Dimension(Lx W xH)(unloaded)(mm)
|
9970×2485×3300
|
|
Tank Volume (mm)(Liter)
|
22000
|
|
Tanker body material
|
Q235B
|
|
Thickness of tanker end/body
|
6mm
|
|
Front Spray water
|
Duckbill type
|
|
Rear sprinkling
|
Cylinder type
|
|
Water cannon
|
with
|
|
Water absorption pipe(Inner steel )
|
3” 3 meters
|
|
Approaching angle/Departure angle(°)
|
20/10
|
|
Overhang(front/rear) (mm)
|
1375/2520
|
|
Wheel base (mm)
|
4575+1400
|
|
Max speed(km/h)
|
75
|
|
Curb weight(kg)
|
11605
|
|
Engine
|
Model
|
WD615.69
|
|
Fuel type
|
Diesel
|
|
Power, max(kw/rpm)
|
336HP
|
|
Emission
|
EURO II
|
|
Transmission
|
Model
|
HW19710
10 forward&2 reverse
|
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|
Steering system
|
Model
|
8198
hydraulic steering with power assistance
|
|
Front axle
|
HF7
|
|
Rear axle
|
ST16
|
|
Tyre
|
295/80R22.5
10+1 spare
|
|
Electrical system
|
Battery
|
2X12V/165Ah
|
|
Alternator
|
28V-1500w
|
|
Starter
|
7.5Kw/24V
|
|
Cab
|
HOWO76 one sleeper, air conditioner, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper
system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and
rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo
radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and
shock absorbers
|

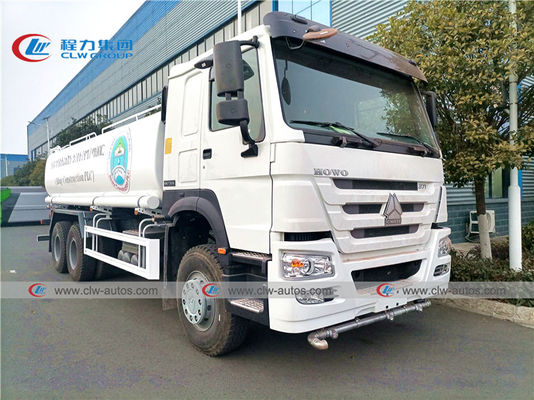

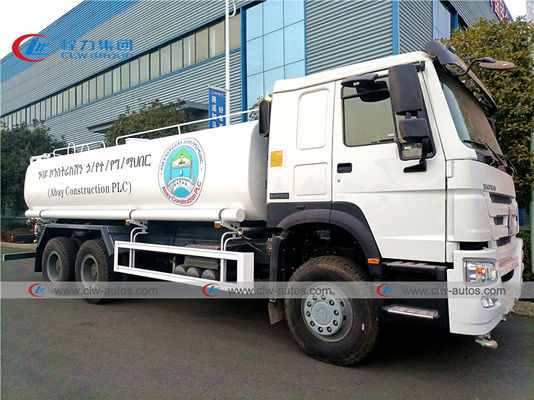

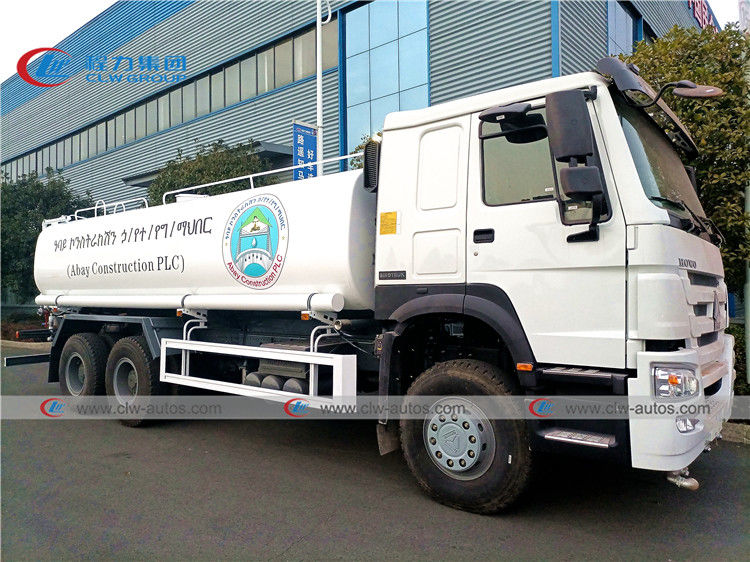

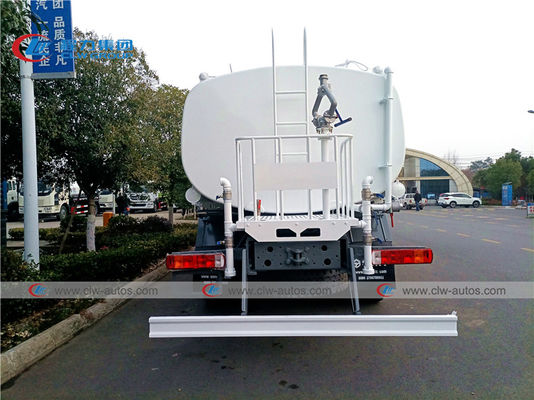

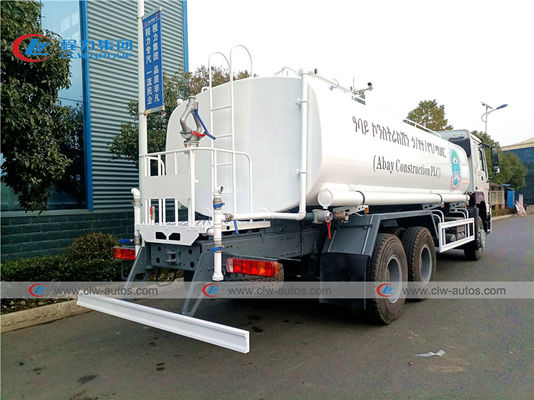

More Pcitures for Sinotruk HOWO 6x4 10 Wheels 20Tons Water Spraying Tank Truck
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
