Foton Auman 6x4 type 20000liters 20cbm 20tons Water sprinkler Truck
Description:
water tank truck, which is also called watering truck, water tanker truck, water spraying truck,
water truck, water sprinkler truck, etc.
The water tanker truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tank truck is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of chengli water tank truck is more than 15m and the cannon range is more than 30m.
1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacman, etc.
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump
Product specifications
| Chassis Specification |
| Item No. |
Parameters |
| Chassis Brand |
FOTON Auman |
| Overall Dimension |
9900×2500×3400mm |
| Gross Vehicle Weight |
25000kg |
| Curb Weight |
10605 kg |
| Wheel Base |
4600+1350 mm |
| Cabin |
Row and half, Left Hand Driving |
| Engine |
Weichai, 270HP, EURO III |
| Overhang( Front/Rear) |
1525/2460(mm) |
| Fuel type |
Diesel |
| Axle load |
6000/12000(kg) |
| Angle(Approach/departure) |
16/22(°) |
| Transmission/Gearbox |
9 Forward & 1 Reverse Gear |
| Brake System |
Pneumatic |
| Steering Gear |
Power Assistant |
| Tire |
12.00R20, 10 Pieces with 1 spare tire |
| Maximum speed |
90(km/h) |
| Superstructure |
| Water Tanker |
Tank Volume |
20000 Liters / 20m3 |
| Tank Material |
5mm Q235B Carbon Steel |
| Sprinkling System: |
Suction height of Truck Pump |
>7m |
| Full Tank Suction Time |
<15 minutes |
| Sprinkling width of front/rear/side Sprinkler |
≥14m |
| Range of Water Cannon |
≥28m |
| Remarks |
Other Parts: Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs |
Reference photos
Water Truck Diagram
Working Show

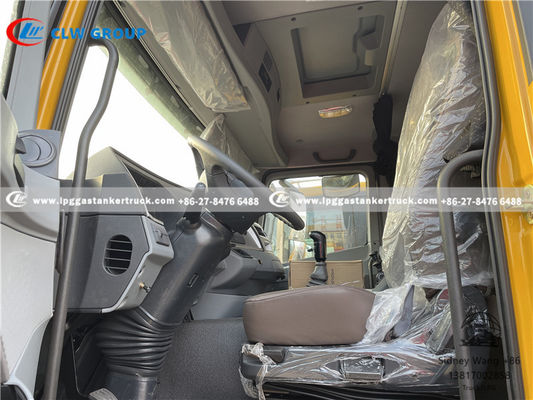

Truck Details
Water bowser truck production line
Factory overview
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
