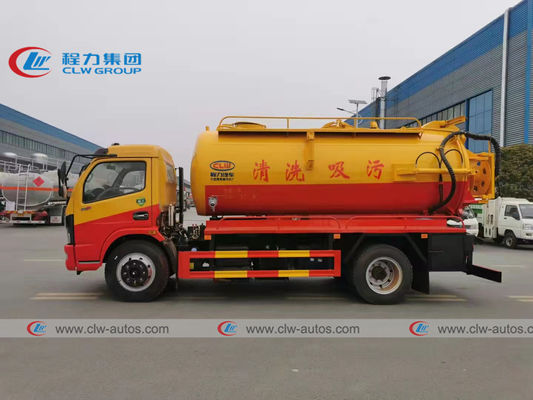

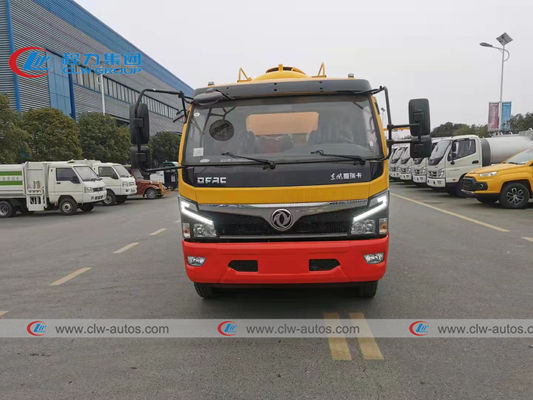

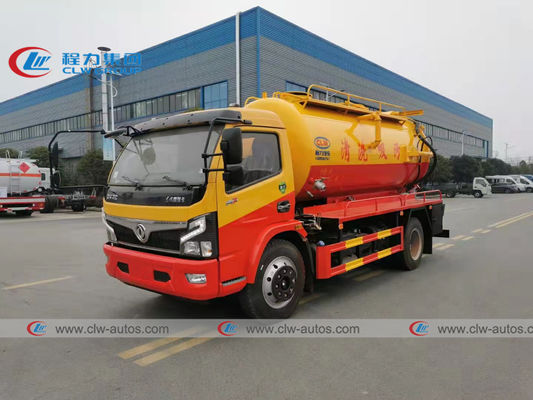

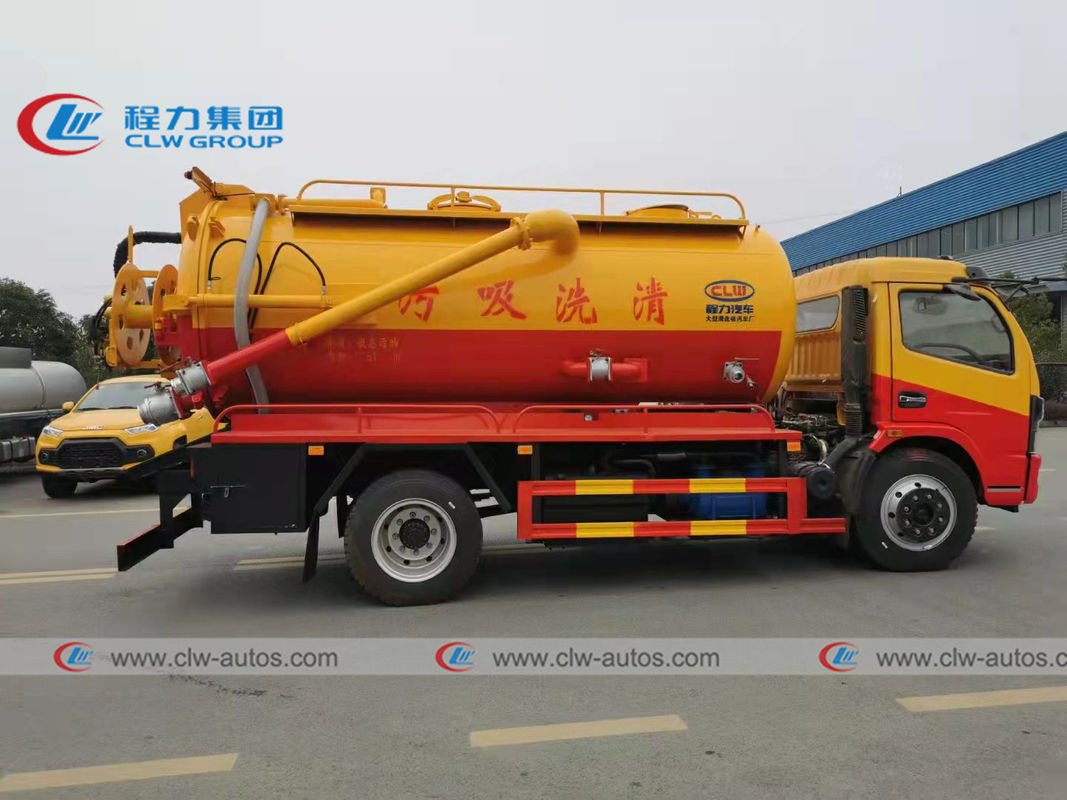

10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck

Duży Obraz : 10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO, CCC
Numer modelu:	CLW5167SQXWC

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	12520 usd/unit~22660 usd/unit
Szczegóły pakowania:	Naga paczka wysłana statkiem masowym
Czas dostawy:	W ciągu 30 dni od otrzymania zaliczek
Zasady płatności:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Możliwość Supply:	300 jednostek / miesiąc

Kontakt

Szczegółowy opis produktu

Marka ciężarówek:	Dongfeng, Shacman, Sinotruk howo, CAMC, FAW, ISUZU Ciężarówka do odprowadzania ścieków	model jazdy:	Ciężarówka do usuwania ścieków LHD, RHD
SILNIK:	Ciężarówka do usuwania ścieków z silnikiem Diesla	Tworzywo:	Wózek do czyszczenia ścieków Q235 ze stali węglowej
Rozmiar cysterny:	10000 litrów 10 ton 10 m3 3000 galonów Ciężarówka do odprowadzania ścieków	Pojemność ładowania:	5 ton 6 ton 8 ton 10 ton Ciężarówka do usuwania ścieków
Grubość cysterny:	Wózek do zrzucania ścieków o średnicy 5 mm lub 6 mm	Pompa próżniowa:	Chińska pompa, BP, Jurop, Moro Kaiser Ciężarówka do usuwania ścieków
Głębokość ssania:	Ciężarówka do przerzucania ścieków o długości 8 metrów	Odległość ssania:	Wózek do czyszczenia ścieków DN50 lub DN100 2" lub 4".
Średni:	Ciężarówka do odsysania ścieków/szlamu/septycznego odsysania ścieków
Podkreślić:	10000 Cbm Sewer Cleaning Truck , Dongfeng Sewer Cleaning Truck , 170HP Vacuum High Pressure Suction Truck

Factory price Dongfeng 190hp Vacuum high pressure Sewage Suction Truck

10,000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck

Description

1.Truck Chassis Advantage:

-Chassis Series-FOTON,DONGFENG,JAC,JMC,Shacman,etc
-Yuchai or Cummins Engine in 170HP ~220HP;
-FAST Gearbox Suppling large powe Output in Big Speed Ratio;

2. Sewage System Advantage:

-Large volume sewage tank 7000L with High Pressure Design;
-3000L Wate with Side Installed Design Low Gravity Center;
-Famous Italian Jurop &BP, American Moro Vacuum Pump in 2400L/Min;
-High Pressure Chinese Brand Water Pump 300L/min, 18Bar Pressure;
-Hydraulic Arm for easier sewage hose handling;
-Remote control system.

3. Tanker material:

-Optional for carbon steel or stainless steel 304;-Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm

Vacuum Sewage Suction truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows,

10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck 0

10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck 1

Specification

cabin	Driving type 4x2,left hand drive
	Dongfeng old type flat cab for 2~3 persons
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		6725X2100X2280
	Wheel base (mm)		3800
	Wheel track (front/rear) (mm)		1900/1860
	Approach/Departure angle(°)		21/19
Weight in KGS	Tare Weight		7495
	payload		5400
	Front axles loading capacity		3600
	Rear axles loading capacity		8000
Max. driving speed(km/h)			90
Engine		Brand	Cummins
		Model	B170 33
		Horse Power(HP)	170
		Emission standard	Euro III
Gearbox		6 forwards & 1 reverse
Tire		9.0020 tires with one spare
Sewage Tank		Tank volume: 10cbm
		Tank material:carbon steel Q235, thickness 6mm
Vacuum Pump		Chinese Yifeng vacuum pump XD-420; Max pressure -0.09Mpa; Suction Rate 116L/S; Speed 950 r/min;
Other device		Four-way valve; Overflow valve; Strainer device; Liquid level indication； Pressure gauge DN100 Sewage Inlet and DN100 Sewage Outlet; 8 meters Sewage Suction Pipe;

Structure of a dongfeng vacuum sewage suction truck

10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck 3

Why do you choose us for vacuum sewage suction truck?

1.well experienced truck production company to offer high quality and competitive-price vacuum sewage suction truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available

Related product

Right hand drive howo 290hp 10,000liters septic cleaning truck

10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck 4

Right hand drive FAW J5 10,000liters septic cleaning truck

10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck 5

10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck 6

Left hand drive dongfeng cabin 10,000liters septic cleaning truck for Uzbekistan,Kazakhstan,Kyrgyzstan

10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck 7

ISUZU FTR 10,000liters septic cleaning truck to Phillippines

10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck 8

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,dongfeng sewage truck,ISUZU sewage truck,howo sewage truck
