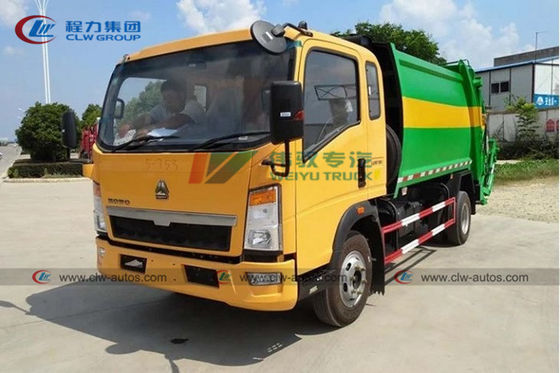

Factory Price Howo 5m3 Rear Loader Garbage Truck Compression Garbage Truck Trash Collection Truck

Duży Obraz : Factory Price Howo 5m3 Rear Loader Garbage Truck Compression Garbage Truck Trash Collection Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC, ISO, BV, SGS
Numer modelu:	CLW541HTKSLC

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Naga paczka z woskiem
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	1000Units/Miesiąc

Kontakt

Szczegółowy opis produktu

Marka podwozia:	Isuzu, FAW, Dongfeng, Foton, Sinotruk, JAC itp.	Model napędu:	4x2
Moc silnika:	142 KM	Skrzynia biegów:	8 do przodu i 2 do tyłu
Współczynnik Campactingu:	0,8-0,9 tony/m3	Współczynnik kompresji:	3-4
Czas cyklu kompresji:	≤15 S	Rozładuj czas na śmieci:	≤23 s
Ciśnienie hydrauliczne:	20mpa	Grubość pojemnika na śmieci:	Bok 3 mm, dół 4 mm, stal węglowa-Q345A
Objętość pojemnika na śmieci:	Dostosowane	Pojemność pojemnika na śmieci:	Dostosowane
Objętość zbiornika brudnej wody:	0,2 cbm	Objętość zbiornika:	0,8 CBM
Sposób kontrolowania:	Sterowanie ręczne i elektryczne	Czas dostawy:	30-35 dni roboczych
Logo i malowanie:	Zgodnie z żądaniem klienta	Gwarancja:	1 rok
Podkreślić:	Compression Garbage Truck , 5m3 Rear Loader Garbage Truck , Trash Collection Garbage Truck

Howo 5m3 Rear Loader Garbage Truck Compression Garbage Truck

Product Description

Widely used; support customized
Heavy load; simple operation
Plate thickening; fully function

Product Specification

Technical Parameters
Overall Dimension		589520102350(mm)
Gross Vehicle Weight		18000(Kg)
Curb Weight		8280(Kg)
Chassis Brand		Howo
Drive model		4*2
Cabin		Single Row, LHD or RHD, with air condition, audio system, and USB, etc.
Number of Passengers		2
Engine	Model	Howo142HP, 4-stroke direct injection, 4-cylinder in-line, intercooled supercharging, with ABS.
	Power	105KW/142HP
	Emission standard	EURO4
	Fuel type	Diesel
Gearbox		8 Forwards & 2 Reverse,manual operation,with power steering.
Tire		7.50R16LT, 6 pcs with 1 spare
Max Driving Speed		95(km/h)
Compector Box		Box Volume: 5cbm
		Dirty Water Tank Volume: 0.2CBM
		Hopper Volume: 0.8CBM
Body Thickness		Side: 3mm, Carbon Steel-Q345A
		Bottom: 4mm, Carbon Steel-Q345A
Hydraulic Pressure		20Mpa
Controlling Way		Manual and electrical control
Other Configuration		1. Equipped with hermetic dustbin.
		2. Hydraulic system: Hydraulic ejection plate, Hopper, Lifting system, Compression system(sliding plate, scraper board), Receiving system, Loading system.
		3. Operating system: Rear operation panel board, Manual operation panel board.
Logo and Color		Can be customized

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.

Reference Photos

Factory Price Howo 5m3 Rear Loader Garbage Truck Compression Garbage Truck Trash Collection Truck 0

Factory Price Howo 5m3 Rear Loader Garbage Truck Compression Garbage Truck Trash Collection Truck 1

Factory Price Howo 5m3 Rear Loader Garbage Truck Compression Garbage Truck Trash Collection Truck 2

Structure Diagram

Factory Price Howo 5m3 Rear Loader Garbage Truck Compression Garbage Truck Trash Collection Truck 3

Factory Price Howo 5m3 Rear Loader Garbage Truck Compression Garbage Truck Trash Collection Truck 4

Factory Price Howo 5m3 Rear Loader Garbage Truck Compression Garbage Truck Trash Collection Truck 5

FAQ

Q1: What kinds of garbage truck I can order from your company?

A: We can supply different kinds and sizes garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM compactor garbage truck, hook lift garbage truck, swing arm garbage truck, hanging barrel garbage truck, etc. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of garbage trucks?

A: China GB local standard.

Q3: Can we adopts International brand equipment or accessories for garbage truck?

A: Sure, we already cooperated with many international brand suppliers.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
