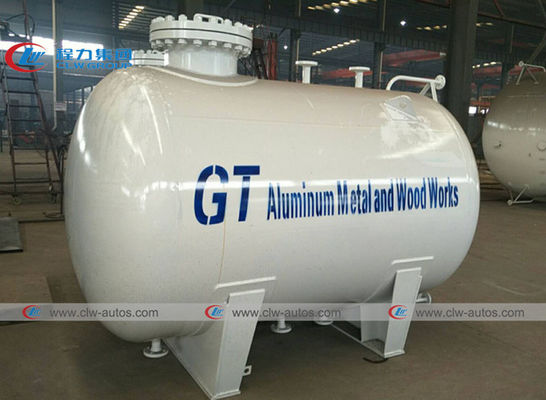

5000 Liters 5m3 Lpg Gas Storage Tank Mini LPG Propane / Butane Pressure Vessel

Duży Obraz : 5000 Liters 5m3 Lpg Gas Storage Tank Mini LPG Propane / Butane Pressure Vessel

Szczegóły Produktu:

Miejsce pochodzenia:	SUIZHOU, HUBEI
Nazwa handlowa:	CLW
Orzecznictwo:	ISO9001, CCC, BV, SGS
Numer modelu:	CLW52YEH6

Zapłata:

Minimalne zamówienie:	1 zestaw
Cena:	Negotiated
Szczegóły pakowania:	Nago lub woskowany przed dostawą
Czas dostawy:	25-20 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Materiał zbiornika:	Q345R Q370R Q420R Stal węglowa na zbiorniki ciśnieniowe	Pojemność ładowania:	2TONY, 5TON, 10TON, 20TON ITP.
Rozmiar zbiornika:	5m3, 5cbm, 5000litrów, 5000L	Presja projektowa:	1,71 MPa 1,77 MPa 17,1 bara, 17,7 bara
Ciśnienie próby hydraulicznej:	2,21 MPa 22,1 bara	Środek wypełniający:	Propan, butan, LPG, gaz kuchenny
Wskaźnik poziomu:	Wskaźnik poziomu płyty magnetycznej, pływak, wskaźnik poziomu wirnika	Średnica:	1600MM
Mnóstwo:	5000L, 5cbm, 5000litrów, 5m3	Kolor:	Dostosowane
Pochodzenie:	Suizhou, Chiny	Dodatek korozji:	1 mm
Podkreślić:	5m3 Lpg Gas Storage Tank , 5000 Liters Lpg Gas Storage Tank , LPG Propane Pressure Vessel

China Brand 5,000 Liters/5m3 Lpg Gas Storage Tank Mini LPG Propane/Butane Pressure Vessel

Product Description

1. propane storage tank's storage medium: LPG, propane,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc

2. Available propane storage tank capacity: 5m³~200m³,2ton~100tons

3. Manufacturing standards of propane storage tank: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

5. LPG storage tank material: Q345R Q370R SA516 SA517

6. Corrosion Resistance Painting: 2 Times

7. Surface Painting: 1 Time (color & logo is customized)

Technique Parameter for 5000 Liters 5m3 lpg storage tank

Item No.	Parameters
Volume of Tank (cbm)	5
Tare Weight (kg)	2030kg
Filling Capacity (kg)	1995 kg
Thickness of Shell (mm)	10
Thickness of Endplate (mm)	10
tank cylinder diameter (mm)	1600
External Dimensions (mm) (length×width×height)	307016202210
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas
Design Pressure	1.77MPa ( 256.65 Psi)
Corrosion Allowance	1 mm
Medium Density	420 kg/ cbm

Accessory diagram for 5,000liters lpg storage tank

Accessories List
Parts No	Size	Parts Name	Model No.	Quantity	Unit
a	DN50	Cut-off Valve for Drain Outlet	J41N-2.5-50	1	set
b	DN80	Cut-off Valve for Liquid Phase Outlet	J41N-2.5-80	1	set
c1	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50	1	set
c2	DN50	Cut-off Valve for Gas Phase Balance Outlet	J41N-2.5-50	1	set
d	DN80	Cut-off Valve for Liquid Inlet	J41N-2.5-80	1	set
i	DN50	Cut-off Valve for Air Drain Outlet	J41N-2.5-50	1	set
h	DN80	Cut-off Valve for Safety Valve	J41N-2.5-80	1	set
f1	DN25	Cut-off Valve for Magnetic Level Gauge	J41N-2.5-25	1	set
f2	DN25	Cut-off Valve for Magnetic Level Gauge	J41N-2.5-25	1	set
e	M33*2	Thermometer	WTQ-280	1	set
g	M20*1.5	Pressure Gauge	Y-100T	1	set
/	/	Magnetic Level Gauge	HG21584-95	1	set
/	DN80	Safety Valve	A42F-25	1	set
	M20×1.5	Needle Valve	J24W-320-DN6	1	set
Total Quantity				14

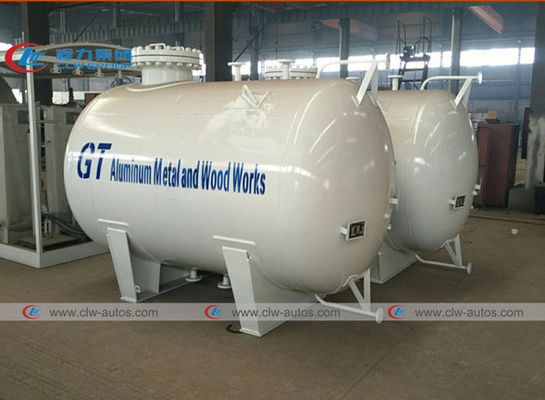

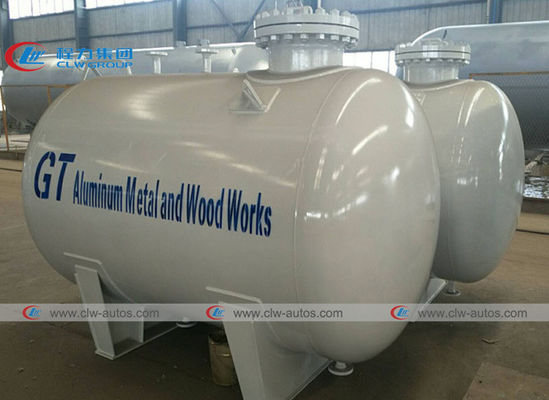

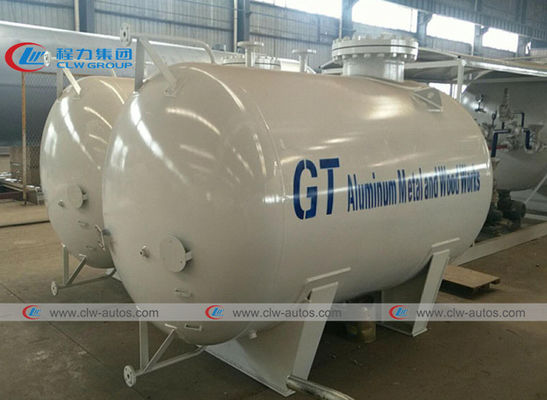

Pictures of LPG gas plant with the accessories:

Production Process for LPG storage tank:

Our Service

1) Quick feedback to solve your questions;
2) Professional engineering and production team;
3) Related Accessories and spare parts offered,no future worries;
4) Regular customer after-sale visiting;
5) Free technical staff training and guidance;
6) Reasonable price and good quality;
7) Quick delivery and shipment.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned enterprise?
A: Our group company is a regular strategic partner of some big gas enterprise. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
