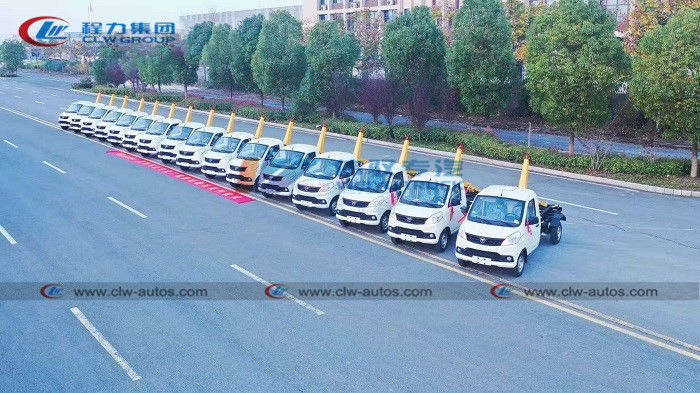

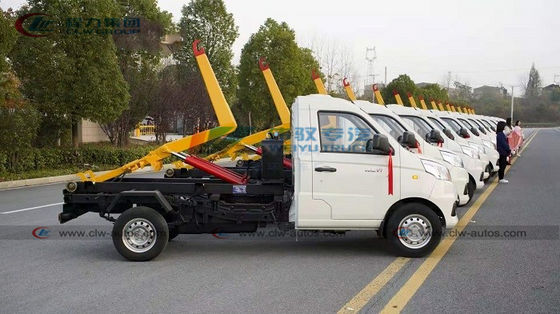

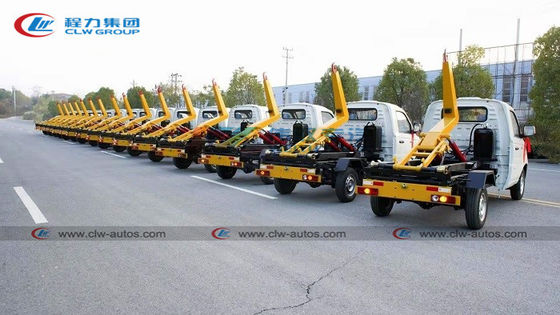

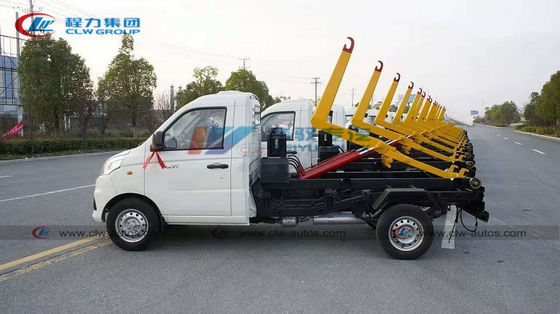

Foton 3-12cbm/3-12m3 Waste Removal Truck Hook Lift Garbage Truck
Product Description
*Top 500 Private enterprises in China
*National standard steel customization
*Optional shapes of waste bins
*Light weight and easy maintenance
*Reliable product quality, low failure rate and low operating costs
| Condition |
New condition 4x2 RHD&LHD |
| Main details |
Wheelbase(mm) |
2600;2800;2850 |
| Front/Rear Axle loading(kg) |
1330/2165 |
| Tare Weight(kg) |
1580 |
| Wheel track (front/rear) (mm) |
1345/1240 |
| Front/Rear overhang(mm) |
1110/1488 |
| GVW(kg) |
3495 |
| Approach/Departure angle(°) |
18/20° |
| Max. driving speed(km/h) |
90 |
| Cab |
2-3passangers,single row cab |
| Starter |
12V 2.8kw |
| Clutch |
Dry single plate |
| Brakes |
Hydraulic brake |
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Tire |
Quantity |
6 pcs with one spare tire |
| Specifications |
6.00-14,6.00-15 |
| Transmission |
Manual type, 5 Forwards and 1 reverse |
| Cab |
It can accommodate three people. With Air Conditioner |
Engine |
Brand |
QUANCAI 4D22F |
| Fuel type |
Diesel |
| Emission standard |
Euro 3 |
| Upper & Control System |
| Garbage box |
Capacity(cbm) |
3-4cbm |
| Tank material |
Q235 carbon steel |
| Side plate thickness(mm) |
3mm |
| Bottom thickness(mm) |
4mm |
| pulley wheel quantity(pcs) |
4 pcs |
| Control System |
Control model |
Hydraulic control |
| Control panel |
Close to Cabin |
Main Structure and Details
Main Parts
Our Factory
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of garbage truck I can order from your company?
A: We can supply different kinds and sizes garbage trucks as client's request. Basically speaking, we can supply 5CBM to 20CBM compactor garbage truck, hook lift garbage truck, swing arm garbage truck, hanging barrel garbage truck, etc. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of garbage trucks?
A: China GB local standard.
Q3: Can we adopts International brand equipment or accessories for garbage truck?
A: Sure, we already cooperated with many international brand suppliers.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
