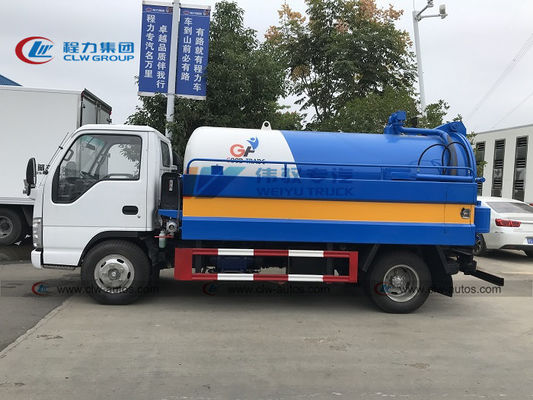

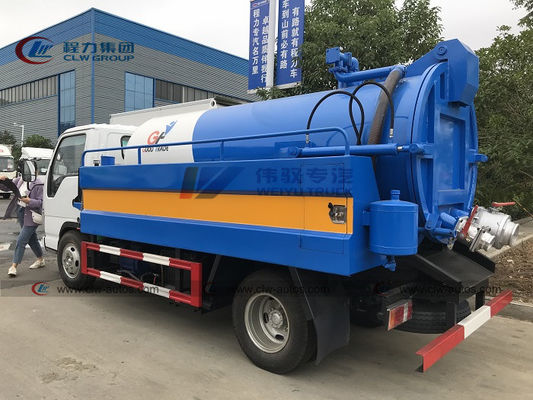

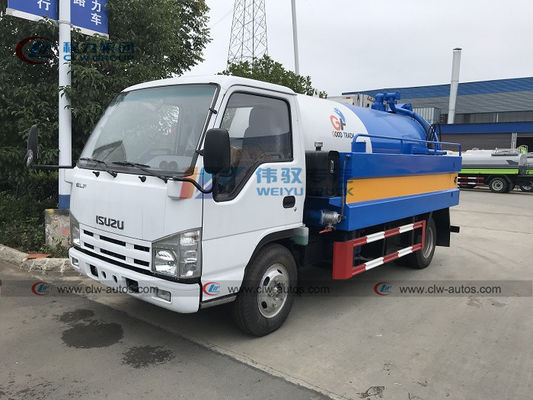

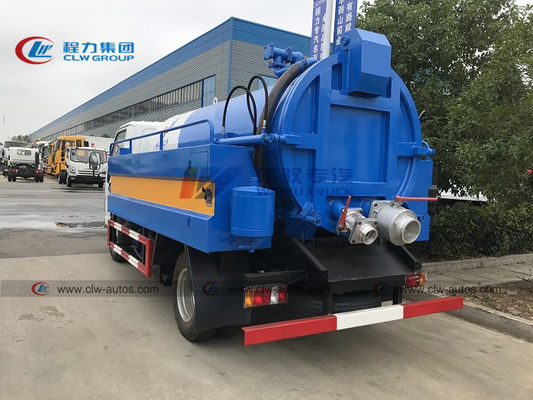

Mini ISUZU Sewer Dredging And Cleaning Truck With 2m3 Water Tank 3m3 Septic Tank

Duży Obraz : Mini ISUZU Sewer Dredging And Cleaning Truck With 2m3 Water Tank 3m3 Septic Tank

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,ISO,BV,SGS
Numer modelu:	CLW5422W

Zapłata:

Minimalne zamówienie:	Jednostka
Cena:	negotiable
Szczegóły pakowania:	Statek luzem, ro-ro, kontener
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Marka podwozia:	Dongfeng, Foton, Sinotruk HOWO, Isuzu itp.	Model napędu:	RHD i LHD
Rozstaw osi:	3360 mm	Moc silnika:	130 KM
Pojemność zbiornika na wodę:	2cbm 2m3 2 metry sześcienne 2000 litrów 2tony	Pojemność zbiornika ścieków:	3cbm 3m3 3 metry sześcienne 3000 litrów 3tony
Materiał zbiornika:	Stal węglowa 6 mm	Pompa próżniowa:	Znana międzynarodowa marka
Rura ssąca kału:	7m	Czas ssania:	Nie więcej niż 5 minut
Efektywny zakres ssania:	Nie mniej niż 7 m	Logo i wzór:	Jako żądanie klienta
Gwarancja:	1 rok
Podkreślić:	ISUZU Sewer Dredging And Cleaning Truck , 3m3 Septic Tank Vacuum Suction Truck , Sewer Dredging And Cleaning Truck

Mini ISUZU 2m3 Water Tank 3m3 Septic Tank Sewer Dredging and Cleaning truck

Product description

The rear door can be opened hydraulically, with the tank lifting function, it is more convenient to dump
Tank material: high-quality carbon steel plate, 6mm thick,
Truck accessories: vacuum oil pump, water and oil separator, anti-overflow valve, multi-way reversing valve, vacuum pressure gauge, sight window or sight pipe
The rear of the tank is 100 ball valve, the sewage suction pipe is 8 meters.
Optional vacuum pump

Specification

Vehicle Main Dimensions	Cab type	Single row cab
	Overall dimension(LWH)(mm)	5900×1800×2160
	Wheelbase (mm)	3360
	Axle number	2
	Drive type	4*2
	Steering type	LHD/RHD
	Max. Drive Speed (km/h)	105
	Curb weight (kg)	2070
Chassis parameter	Chassis brand	ISUZU
	Transmission	Manual, 6forward and 1 reverse
	Brakes	air brake
	Tire	7.00R16 Steel tire
Engine parameter	Engine Brand	ISUZU
	Fuel type	Diesel
	Horse Power(hp)	130hp
	Emission Standard	Euro3
Superstructure Parameter and main performance	Sewage tank volume	3000liters/3cbm
	Sewage tank material	6 mm good quality carbon steel
	Vacuum Pump	Imported Italy high quality vacuum pump or chinese vacuum pump SK-12
	Water tank volume	2000liters/2cbm
	High pressure pump	Flow meter: 215L/min
	Standard configuration	60m long high pressure pipe, inspect window, one gravity mouth, 8m long suction pipe, etc
	Main performance	Suction time ≤ 5min Effective suction range ≥ 9m
	Main function	Cleaning city sewer, pipeline dredge, suction sewage,etc
	Optional	watering

Main Structure

Working Scene

Factory overview

Mini ISUZU Sewer Dredging And Cleaning Truck With 2m3 Water Tank 3m3 Septic Tank 2

Mini ISUZU Sewer Dredging And Cleaning Truck With 2m3 Water Tank 3m3 Septic Tank 3

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What size Fecal Suction tank we can get from your company?

A: we can supply 2CBM to 18CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
