Shacman 8x4 12Wheeler Truck Mounted Telescopic Crane With XCMG

Duży Obraz : Shacman 8x4 12Wheeler Truck Mounted Telescopic Crane With XCMG

Szczegóły Produktu:

Miejsce pochodzenia:	SUIZHOU. CHINY.
Nazwa handlowa:	CLW
Orzecznictwo:	CCC, ISO9001
Numer modelu:	CLW2022424

Zapłata:

Minimalne zamówienie:	1 zestawy
Cena:	Negotiated
Czas dostawy:	40 dni roboczych
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek miesięcznie.

Kontakt

Szczegółowy opis produktu

Nazwa produktu:	Ciężarówka towarowa SHACMAN z dźwigiem CLW	Moc koni silnika:	299 KM
Marka ciężarówek:	Sinotruk HOWO, SHACMAN, FAW, FOTON, JAC itp	Model napędu:	8x4, 10 kół, 10 kółek,
Typ napędu:	RHD i LHD	Typ laski:	Składany, składany, dźwig przegubowy lub proste ramię
Sprzęt:	Pompa hydrauliczna, cylinder olejowy	Pojemność ładowania:	12 ton, 14 ton
Marka dźwigu:	SANY, XCMG, CLW dla opcji	Pojemność dźwigu:	5 ton, 6 ton itp
Podkreślić:	12Wheeler Truck Mounted Telescopic Crane , Shacman 8x4 Truck Mounted Telescopic Crane

Large Loading Capacity Shacman 8x4 12Wheeler Truck Mounted Telescopic Crane With XCMG

Product description

Economical fuel consumption: National standard high-power engine, comfortable and low fuel consumption
Driving stability: anti-lock braking system with good driving stability
Brake safety: the wheel is locked by the compressed air entering the brake air chamber, and the brake is more stable, accurate and safe
Economic and environmental protection: urea tank is used to store urea aqueous solution, SCR selective reduction, economical and environmental protection
Safety and anti-dropping: The end of the wire rope is equipped with anti-dropping hooks, which are safe and reliable, and equipped with four bundlers as standard
Time-saving and labor-saving: double-sided linkage operation, one-key operation of winch, support arm and flat plate
Explosion-proof performance: The chassis is equipped with hydraulic drive winch, which has overload protection, impact protection and explosion-proof performance.
Stable and reliable: a baffle plate is set on each side of the front end of the flat plate, which can effectively prevent the vehicle from moving forward, which is stable and safe

Specification

General Technical Parameters
Overall Dimension				1200025503980 (mm)
Gross Vehicle Weight				31000kg
Curb Weight				19430kg
Chassis Specification
Chassis Parameters	Chassis Brand			SHACMAN
	Cabin			Left Hand Driving, Remote front door lock, with A/C
	Engine		Model	6 Cylinders
			Power	299HP
			Emission standard	EURO V
			Displacement	7470ML
			Fuel type	Diesel
	Gearbox			8 Forward & 1 Reverse Gear
	Front and Rear Axle load			6.2T/18T
	Wheel base			1800+3975+1400mm
	Overhang( Front/Rear)			1525/2400(mm)
	Angle(Approach/departure)			16/10(°)
	Brake System			Air Brake
	Steering Gear			Power Assistant
	Tire			11.00R20, 12 Pieces with 1 Spare Tire
	Maximum speed			90(km/h)
	Superstructure
Flatbed	Flatbed dimensions			82002450600(mm)
Working System	Crane	Brand		Chinese Famous Brand
		Boom Type		Straight arm
		Max lifting weight		14,000(kg)
		Max lifting height		14(m)
		Max working range		12(m)
		Rotation angle		360 degree full rotation

		Crane Weight	6000kg
		Installation space	1150(mm)
	Outrigger		2 pcs, Front leg
	Operation		Hydraulic control, with Aerial Seat
Optional Parts	1. Remote control 2. Rear leg

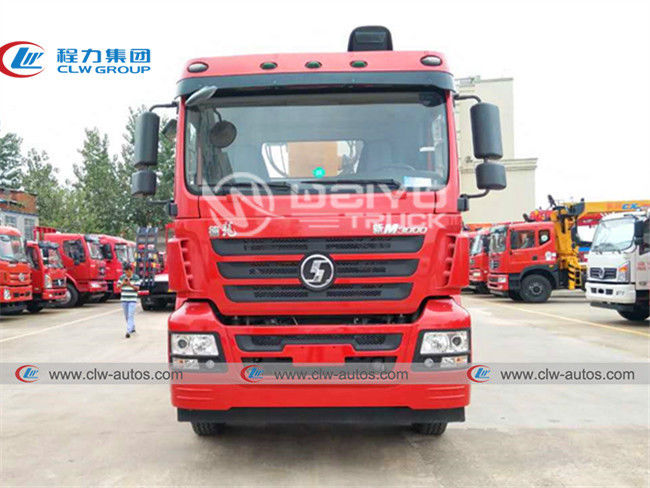

Reference pictures

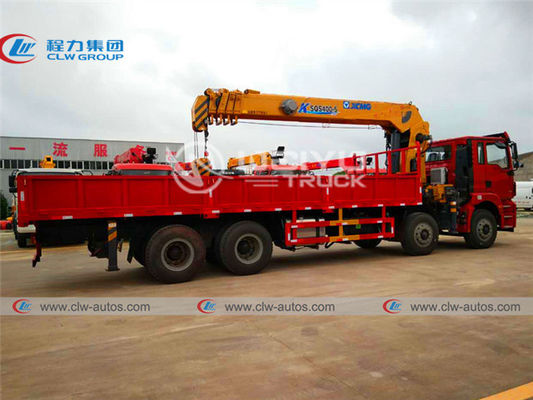

Shacman 8x4 12Wheeler Truck Mounted Telescopic Crane With XCMG 0

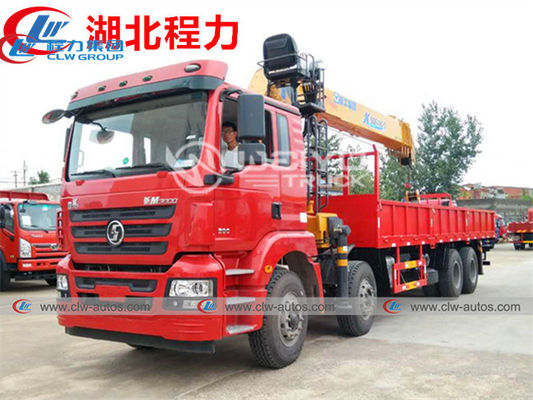

Shacman 8x4 12Wheeler Truck Mounted Telescopic Crane With XCMG 1

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
