Szczegóły Produktu:
Zapłata:
|
| Marka:: | Sinotruk Howo | Funkcjonować:: | Zgniatarka śmieci, wywóz śmieci |
|---|---|---|---|
| Tworzywo:: | Stal węglowa Q235B | Grubość:: | Bok 4 mm dół 4 mm |
| Współczynnik Campactingu:: | 0,6-0,8 tony/m3 | Czas cyklu kompresji:: | Nie więcej niż 20 s |
| Czas wyładowania śmieci:: | Nie więcej niż 23 s | Ciśnienie hydrauliczne:: | 16mpa |
| Objętość pojemnika na śmieci:: | 8m3/8m3 | Pojemność zbiornika brudnej wody:: | 0,26 CBM |
| Objętość zbiornika:: | 0,73 cbm | Sposób kontrolowania:: | Sterowanie ręczne i elektryczne |
| Kolor:: | Zgodnie z żądaniem klienta | Certyfikat:: | ISO/CCC/SGS/BV |
| Logo i kolor:: | Dostosowane | ||
| Podkreślić: | Carbon Steel Sanitation Compactor Garbage Truck,HOWO Cummins Engine Compactor Garbage Truck |
||
Product Descriptions:
1. Howo chassis with perfect performance and high quality
2. Cummins diesel engine 154hp with 6speed gear box
3. Side 4 bottom 4 carbon steel material with 8cbm tank volume
4. Filling working cycle time is about 20-25s.
5. Three control types: rear loader control panel, cabin control box and electrical-hydraulic operating valve.
Application range:
1. garden, park, scenic spot
2. community, street, school etc.
Optional Fliper:
1. hanging bucket fliper with 120L,240L,330L or 660L.
2. All sealing container
3. Swing-arm container
4. Triangle container
| 8cbm Howo compactor garbage truck | ||||
| Vehicle name | Compactor Garbage truck | Chassis: | Sinotruk Howo | |
| Outline size(L×W×H) (mm) | 7350*2300*2750 | Loading weight(Kg): | 4850 | |
| Full mass(kg) | 11995 | Emission standard | Euro 3 | |
| Engine Information | ||||
| Model | ISF3.8S3154 | Type | Diesel engine | |
| Power | 154HP | Brand | CUMMINS | |
| Chassis Information | ||||
| Wheelbase(mm): | 3800 | Axle load(kg) F/R | 2700/7200 | |
| Tire | 8.25R16 radial tire | Max speed (km/h): | 90 | |
| gear box | 6forward,1 reverse manual type | Brake | Air brake | |
| Upper body | ||||
| Body capacity | 8cbm/8m3 | Fill Hopper capacity | 0.73cbm | |
| Filling work cycle time | 20~25 s | Sewage tank | 600 liters | |
| Standard accessories | Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual... |
|||
| Control system | ||||
| Electrically Hydraulic control | Manual hydraulic control | |||

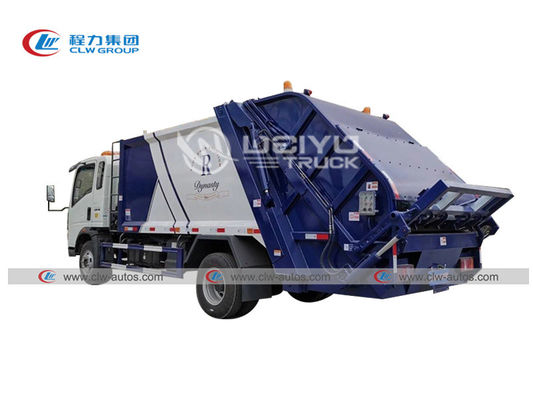

Reference photos:
![]()
Various Kinds of Garbage Trucks
![]()
Factory overview
![]()
Hubei weiyu special vehicles co.,ltd,branch of CLW group,which was appointed by the Development and Reform Committee of China is a professional manufacturer and factory who have been dealing in different kinds of special vehicles, trailers and construction machineries in central China since 2004.
Our advantage:
After-sales Service: 1)Pre-sales Service: Communicate with customers, analyze their needs. 2)Sales Service: Provide professional technical solutions, recommend the right models accordingly. 3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly. Warranty: 1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles. 2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units. 3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely. Spare Parts: 1. Supplying quick-wearing parts at the truck delivery. 2. Good quality parts produced by the truck manufacturing factory. 3. Only charge cost price for customer convenience. Shipment: Land transportation or Ship by bulk cargo ship, container, roro ship After Sales Service: Email & Phone call tracking for each truck on timely manners.
