Mobile Self Loading Cement Concrete Mixer Truck 4CBM 4.5CBM With 270 Deg Rotation

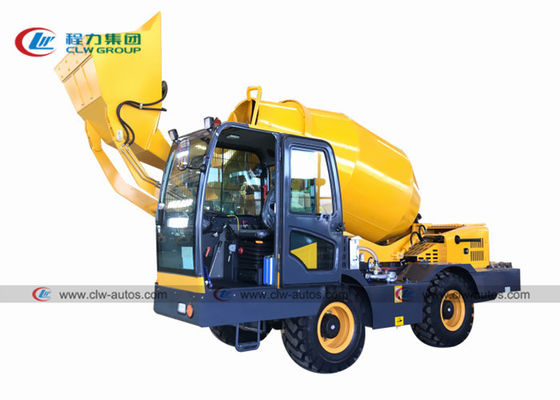

Duży Obraz : Mobile Self Loading Cement Concrete Mixer Truck 4CBM 4.5CBM With 270 Deg Rotation

Szczegóły Produktu:

Miejsce pochodzenia:	Hubei, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC. ISO9001. CE
Numer modelu:	CLW-400

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	17000-49000USD/unit
Szczegóły pakowania:	Nagi lub woskowany przed wysyłką
Czas dostawy:	20 dni roboczych po otrzymaniu wpłaty
Zasady płatności:	Akredytywy, T/T, Western Union, MoneyGram

Kontakt

Szczegółowy opis produktu

Wysokość karmienia:	1800 mm	Amplituda wibracji:	2,0 mm
SILNIK:	Yunnei Yn48gbz, silnik wysokoprężny	Silnik:	Hydrauliczny silnik obrotu, marka Eton
Reduktor:	Marka Eton	Opcjonalny silnik:	Yuchai Ycd4p22t-130
Przenoszenie:	Przekładnia hydrauliczna z przemiennikiem momentu obrotowego	Typ napędu:	Napęd na 4 koła, sterowanie na 2 koła.
System wodny:	automatyczny system wody górnej z pompą i rurami	Bęben miksujący:	1,6 CBM, 2 CBM, 2,5 CBM, 3,5 CBM, 4,0 CBM
Podkreślić:	Self Loading Cement Concrete Mixer Truck , 4.5CBM Cement Concrete Mixer Truck , Mobile Ready Mix Concrete Mixer Trucks

Mobile 4CBM 4.5CBM Self Loading Self-Loder Cement Concrete Mixer Truck With 270° Degree Rotation Function

Product Description

1. Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which

can automatically feed, measure, mix and discharge concrete mixture.

2. Mobile Self loader Cement/Concrete Mixer Equipped with a powerful engine and 4 wheel steering,

the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go.

3. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered

in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

4. The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it.

5. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time.

6. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer,

the self loader mobile cement mixer truck.

Main Features

1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.

Specifications

Mixing drum	capacity : 4.0M3, 14m3 concrete output/h, mixing speed: 3 gears both positive & inversion turns; maxing slewing angle of the drum: 270 degree.
engine paramters	YUNNEI YN48GBZ, rated power/turns: 92kw (125HP)/ 2400rpm.
drive system	hydraulic component( variable stroke pump) : Eton two grades gear transmission : road/off road, 4wheel drive
speed	low gear speed: 0-9.5km/h, high gear speed : 0-28km/h
cabin	front cabin with rops &fops design
Hydraulic sytem	2 variable stroke pumps provide power separately to car drive and mixer. 2 constant rate pumps provide power to drum slewing , brake, water. cooling: water/air
joystick	all working operation designed in one joystick
bucket	capacity: 0.6m3 hydraulic controlled door
chute	adjustable hydraulic controlled vertical 15 degree movement, horizontal free movement
water sytem	water pump with high pressure washing gun
climbing angle	30degree with full load
brake	wet brake, parking brake with gear box
tires	off-road engineering tire 16/70-20 PR16
steering	Back axle steering, all hydraulic inner steering radius: 1988mm/4130mm outer steering radius:3767 mm/6030mm
electric system	battery :2X12V 120Ah, provide lighting and ignition
fuel tank	110L
hydraulic oil tank	80L
carframe	all steel welding
weight	off load:8t, full load :18t
weighing system	equipped with high precision concrete weighing system & micro printer for detailed data of weight price, date etc.
Dimensions(LxWxH)	750027003380mm

More detailed pictures for Mobile 4CBM 4.5CBM Self Loading Self-Loder Cement Concrete Mixer Truck

with 270° Degree Rotation Function:

Mobile Self Loading Cement Concrete Mixer Truck 4CBM 4.5CBM With 270 Deg Rotation 0

Mobile Self Loading Cement Concrete Mixer Truck 4CBM 4.5CBM With 270 Deg Rotation 1

Mobile Self Loading Cement Concrete Mixer Truck 4CBM 4.5CBM With 270 Deg Rotation 2

Mobile Self Loading Cement Concrete Mixer Truck 4CBM 4.5CBM With 270 Deg Rotation 3

Mobile Self Loading Cement Concrete Mixer Truck 4CBM 4.5CBM With 270 Deg Rotation 4

Mobile Self Loading Cement Concrete Mixer Truck 4CBM 4.5CBM With 270 Deg Rotation 5

Mobile Self Loading Cement Concrete Mixer Truck 4CBM 4.5CBM With 270 Deg Rotation 6

Products Advantages:

1. self loading concrete mixer truck with compact dimensions can easily drive through narrow passages and doors.
2. Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for t

he toughest of jobs.
4. Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5. The operator area is spacious and laid out to provide comfort and ease of operation.
6. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.
