15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck

Duży Obraz : 15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,ISO,GCC,DOT
Numer modelu:	CLW5922

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	USD18925-27852
Szczegóły pakowania:	Nagie opakowanie, Ro-ro, statek masowy
Czas dostawy:	20-30 dni
Zasady płatności:	L/C, T/T, D/A, D/P, Western Union, Moneygram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Tworzywo:	Stal węglowa Q235	Grubość:	5 mm
Paliwo:	Diesel	Typ jazdy:	4*2, jazda lewo/prawo
Pompa:	Znana marka w Chinach / marka międzynarodowa	Wysokość ssania:	7 metrów
Oferta Canona Wodnego:	30 metrów	Szerokość zraszania:	14 metrów
Film instruktażowy:	Tak	Użyj instrukcji:	Tak
Spray z przodu i spray z tyłu:	Tak	Gwarancja:	Jeden rok
Logo:	Zgodnie z żądaniem klienta
Podkreślić:	15Ton Water Delivery Truck , Q235 Carbon Steel Water Delivery Truck , 5mm High Pressure Can Truck

15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck

Chassis parameters:

1. Chassis brand: Shacman L3000 4x2 left hand driving
2. Cabin: L3000 cabin with one and half row
3. Engine: Weichai diesel engine 210hp Euro 2 emission standard
4. Front/rear loading weight: 4.8t/10t
5. Gearbox: 8 speed forward with 2 reverse, manual type

Upper body parameters:
1. Tank volume: 15cbm, 15m3, 15000liters, 15000L
2. Tank material: High Tension Steel Q235/Q345,stainless steel 304 for option
3. Sprinking Width: ≥14M
4. Rear working platform with water cannon range of portable water truck: ≥28M
5. Reliable and high quality water pump.

Features:1. The water tank truck adopts Shacman chassis for loading, equipped with tanks, loading tank assembly, self-suction pump, power rotation system, piping system and sprinkler assembly.
2. It is equipped with the functions of adjusting sprinkler to change sprinkling directions and angles to adapt different demands.
3. Antiaircraft gun can be used for urban and rural plants, and fire emergency.
4. The rear bottom is equipped with cylindrical nozzles, which can pour the dust fall from the middle sprinkler,
5. The top duckbill nozzles can irrigate the flowers and trees on both sides.
6. With the functions of spraying, pressing dust, high-low position spraying, and flushing guard bars and barrier belts.
7. With intelligent control system, drivers can complete various operations in the cab.

Condition	New condition/Left hand drive/4x2
Chassis	Brand		Shacman
	Curb weight(kg)		6300 kg
	Gross weight(kg)		18,000 kg
	Wheelbase(mm)		5000 mm
	Dimensions(mm)		830024802900 mm
	Front Loading Capacity (Ton)		6
	Rear Loading Capacity (Ton)		9
	Max. driving speed(km/h)		100 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
			Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	10.00R20
Transmission	Manual type, 6 Forwards and 1 reverse
Cabin	Single row seat, Tiltable. It can accommodate two people. With air conditioner.
Engine	Brand		WEICHAI
	Fuel type		Diesel
	Power(kw)		154kw
	Horsepower(HP)		210 HP
	Cylinder number		6
	Emission standard		Euro 3
Upper
Water tank	Capacity(cbm/tons)		15
	Tank Dimension(mm)		500020001500
	Tank material		Q235 carbon steel
	Thickness(mm)		5
Water pump	China local brand
	Suction Height		7 meters
Function	1, Front Side Rear Sprinkling width≥ 14m
	2, Water cannon range≥ 28m
Remarks	1. AM/FM radio
	2. 2pcs water hose.
	3. Color is optional

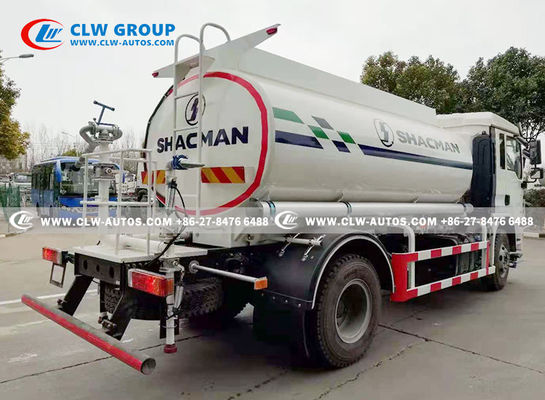

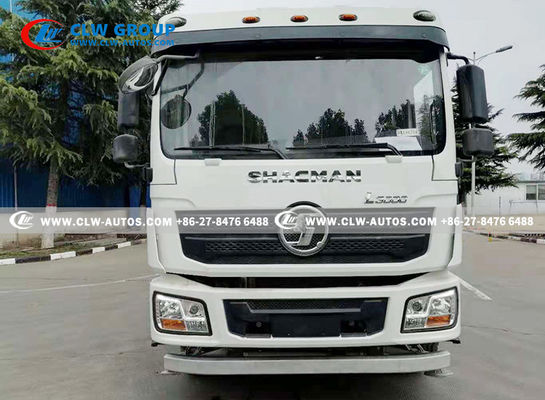

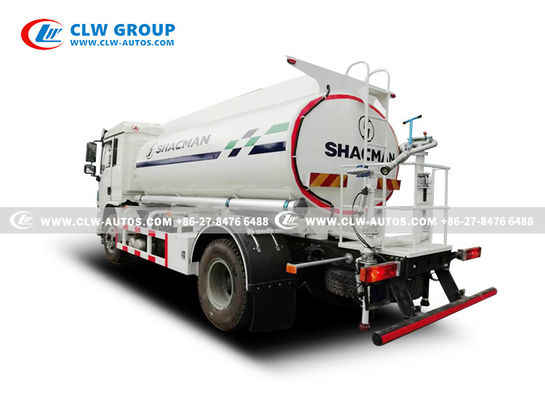

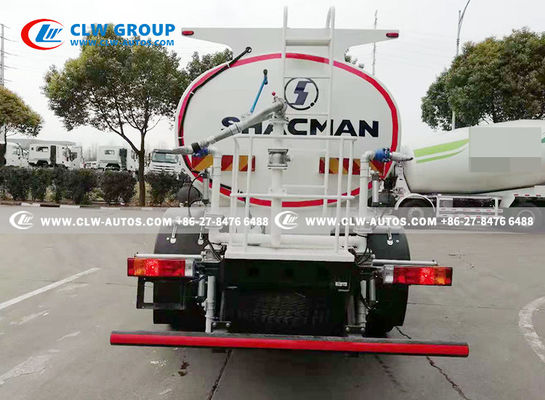

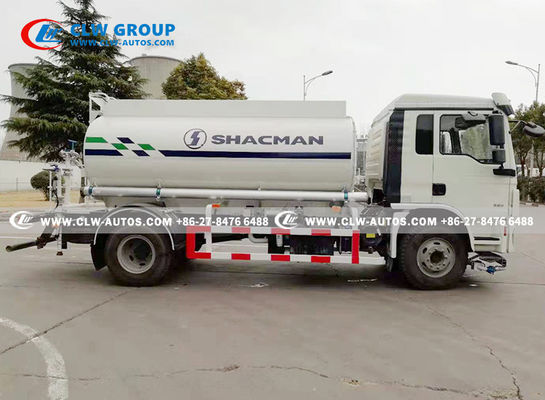

Reference photos for water bowser truck

15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 0

15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 1

Water Truck Diagram:

Working Show

Truck Details

Water bowser truck production line:

15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 7

Factory overview

15 Ton Water Delivery Truck City Street Sprinkler High Pressure Can Truck 8

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
