ISUZU, Dongfeng, howo, faw, shacman, zbiornik na wodę Foton
Rozmiar zbiornika:
Zbiornik na wodę o pojemności 20000 l, 22000 l, 20000 litrów, 22000 galonów i 5000 galonów
Tworzywo:
Zbiornik na wodę ze stali węglowej Q235 lub stali nierdzewnej 304
Koło napędowe:
Koło 4X2,6X4,8X4,6, zbiornik na wodę terenową 6X6
Stan:
nowy zbiornik na wodę
Składowanie:
Woda, woda pitna, zbiornik na wodę mleczną
Moc w koniach mechanicznych:
Zbiornik na wodę o mocy 120 KM, 190 KM
Pojemność silnika:
Zbiornik na wodę o pojemności 6700 cm3
Typ paliwa:
Diesel, opcjonalnie do zbiornika na wodę na benzynę
Zapewniona obsługa posprzedażna:
Inżynierowie dostępni do serwisowania maszyn za granicą, usługi konserwacji i naprawy w terenie
Nazwa produktu:
Boswer wodny, ciężarówka zraszająca, zbiornik na wodę
Typ cysterny na wodę:
Bowser wodny
Podkreślić:

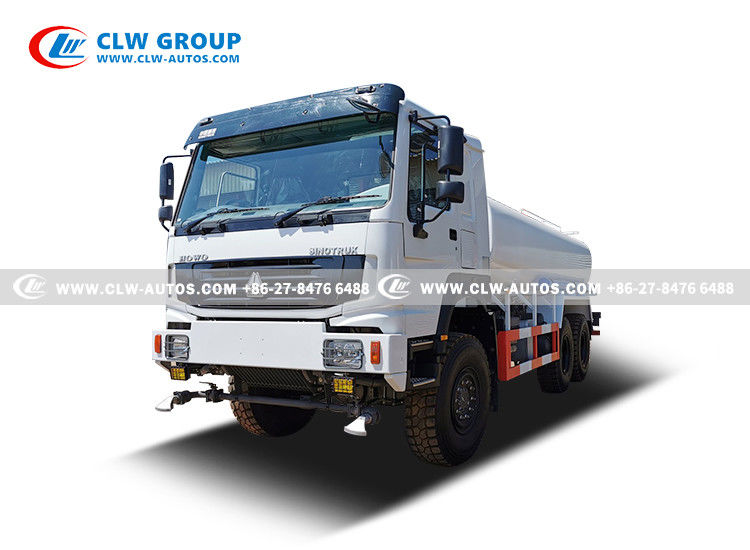

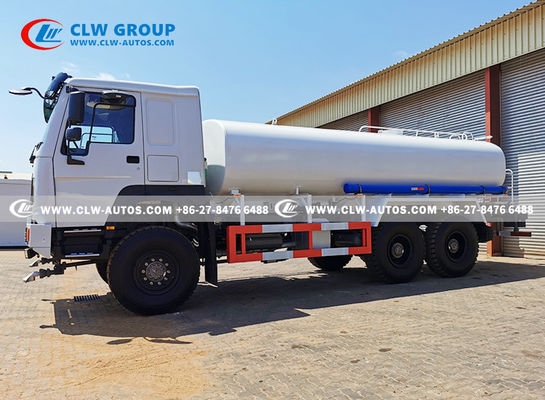

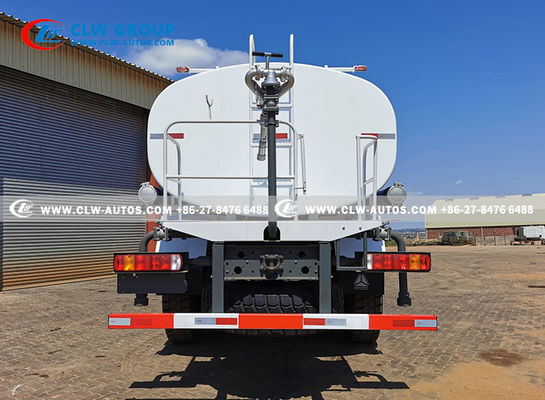

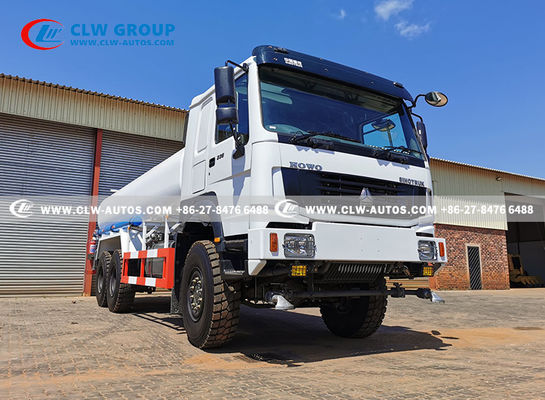

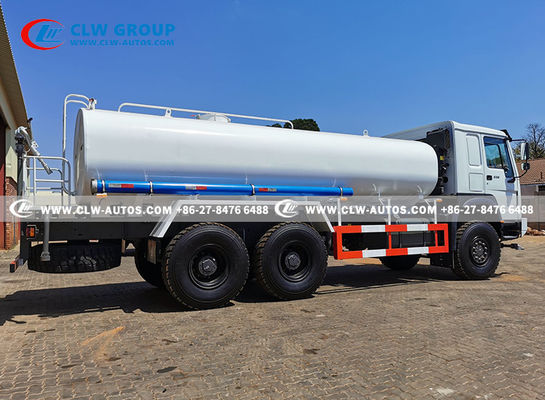

Controllable Water Output Water Bowser Truck
,
Howo 371HP Water Bowser Truck
,
18ton Water Tank Truck
--6x6 water bowser (also called water bowser,water truck,water cart,water sprinkler truck,water sprayer truck,water tanker truck,portable water truck,water delivery truck,water transport truck,drinking water truck) is used for transporting and supplying water for industrial,agriculture,construction or sanitation use.
--The 6x6 water bowser tank material can be carbon steel or stainless steel.If you need to transport drinking water,
the tank material has to be food degree 304-2B stainless steel or carbon steel with non-toxic treatment inside to ensure human's health.
--with water pump,rear platform and water cannon,water bowser is widely used for tree irrigation,road cleaning,or act as emergency fire fighting truck.
Feature
--Square or round shape tank shape;
-Howo truck chassis,durable with perfect working performance;
--powerful and reliable sinotruk engine,easy to get spare parts in local;
--Chinese brand weilong brand water pump;
--Front flush,rear and side sprinkler;
--360 ° rotation adjustable green water cannon;
--Vertical suction distance ≥7 meters;
--Width of front flush and sprinkling ≥14 meters;
--Range of water cannon ≥35 meters;
Advantage: 1. Juro and other centrifugal water pumps can be power take-off (PTO) driven or hydraulic driven.
2. Water cannons can be installed on top of the tank or in front of the unit and operated from the cab to spray overhead conveyors or large coal, ash, or limestone piles.
3. Air operated and hydraulic operated spray heads are used to control the water output. Water hose reels can be incorporated with an adjustable spray nozzle.
4. All water tank kits can be shipped out from the factory for installation at your facility as well as installed to your furnished truck chassis here at our facility.
Water Tank Structure Parameters
Tank Volume
20000L
Tank Material
Carbon Steel
Tank Thickness
5/4/3mm
Nozzle Sprinkling Width
≥14m
Range of water cannon
≥28m
Color and Logo
Optional
Standard configuration
ISUZU Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.
Selective configuration
left hand driving or right hand driving,stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model
water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc.
Remarks
1. Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. 2. Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform. 3. The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30m. 4. Equipped with fire coupling, flow valves, filter screen and water level gauge. 5. According to customers’ request, the crane, high working platform and spraying machine also can be equipped. 6. Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
Note:
1. Any part can be customized depending on customers' demand.
2. 12 months whole vehicle warranty.
3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
