20m3 RHD Howo Water Bowser Truck Greening Watering Truck

Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Im Online Czat teraz

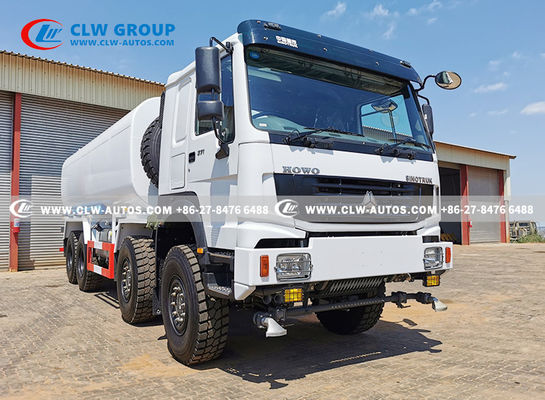

20m3 RHD Howo Water Bowser Truck Greening Watering Truck

20m3 RHD Howo Water Bowser Truck Greening Watering Truck
20m3 RHD Howo Water Bowser Truck Greening Watering Truck 20m3 RHD Howo Water Bowser Truck Greening Watering Truck 20m3 RHD Howo Water Bowser Truck Greening Watering Truck 20m3 RHD Howo Water Bowser Truck Greening Watering Truck

Duży Obraz :  20m3 RHD Howo Water Bowser Truck Greening Watering Truck

Szczegóły Produktu:

Miejsce pochodzenia: Suizhou, Chiny
Nazwa handlowa: CLW
Orzecznictwo: ISO, CCC
Numer modelu: CLW5252SSC

Zapłata:

Minimalne zamówienie: 1 jednostka
Cena: 13250-35560USD/UNIT
Szczegóły pakowania: Naga paczka wysyłana statkiem masowym lub ro-ro
Czas dostawy: W ciągu 30 dni po otrzymaniu zaliczek
Zasady płatności: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Możliwość Supply: 300 jednostek / miesiąc
Szczegółowy opis produktu
Marka ciężarówek: ISUZU, Dongfeng, howo, faw, shacman, zbiornik na wodę Foton Rozmiar zbiornika: 20000L, 20000 litrów, 2000 galonów 5000 galonów Zbiornik na wodę
Tworzywo: Zbiornik na wodę ze stali węglowej Q235 lub stali nierdzewnej 304 Koło napędowe: Zbiornik na wodę 4X2,6X4,8X4,6 kołowy
Stan: nowy zbiornik na wodę Składowanie: Woda, woda pitna, transport mleka Zbiornik na wodę
Moc w koniach mechanicznych: Zbiornik na wodę o mocy 290 KM, 336 KM i mocy 371 KM Pojemność silnika: Zbiornik na wodę o pojemności 6700 cm3
Typ paliwa: Diesel, opcjonalnie do zbiornika na wodę na benzynę Zapewniona obsługa posprzedażna: Inżynierowie dostępni do serwisowania maszyn za granicą, usługi konserwacji i naprawy w terenie
Nazwa produktu: Bower wodny, ciężarówka zraszająca, ciężarówka do transportu wody Typ cysterny na wodę: Ciężarówka z kierownicą po prawej stronie
Podkreślić:

RHD Howo Water Bowser Truck

,

20m3 Howo Water Bowser Truck

,

371hp Greening Watering Truck

20m3 RHD Howo Water Bowser Truck Greening Watering Truck

Applications:

1. Firefighting
Water trucks are especially useful in remote, rural areas where there are no fire hydrants to help put out fires. These trucks transport water needed by firefighters to not only control fires but dampening fire-prone areas that are likely to be consumed in the blaze.

2. Soil Compaction
Soil must be compacted to create a flat, even ground at construction sites so that buildings, roads, bridges etc. can be built safely. When soil is compacted with heavyweight compacting tools like rollers, rammers and vibratory plates, the air component is removed from the soil while keeping the water content intact.

3. Too much water will make the ground sludgy and unstable. Too little water will not let the dry soil particles adhere to each other either. Water trucks not only provide a portable and ready water source at construction sites, they also provide just the right amount of liquid to maintain good water to soil ratio to create strong and stable compaction.

4. Farming
The agricultural sector in the United States started using water trucks during the severe drought that was experienced throughout the Midwest and West Coast of the country between 2011-2016.

When rains fail, these trucks carry recycled water to affected farmlands so irrigation can continue, and both crops and livestock can be saved.



Feature

--Square or round shape tank shape;

- Howo truck chassis,durable with perfect working performance;

--powerful and reliable diesel engine,easy to get spare parts in local;

--Chinese brand weilong brand water pump;

--Front flush,rear and side sprinkler;

--360 ° rotation adjustable green water cannon;

--Vertical suction distance ≥7 meters;

--Width of front flush and sprinkling ≥14 meters;

--Range of water cannon ≥35 meters;



Reference picture

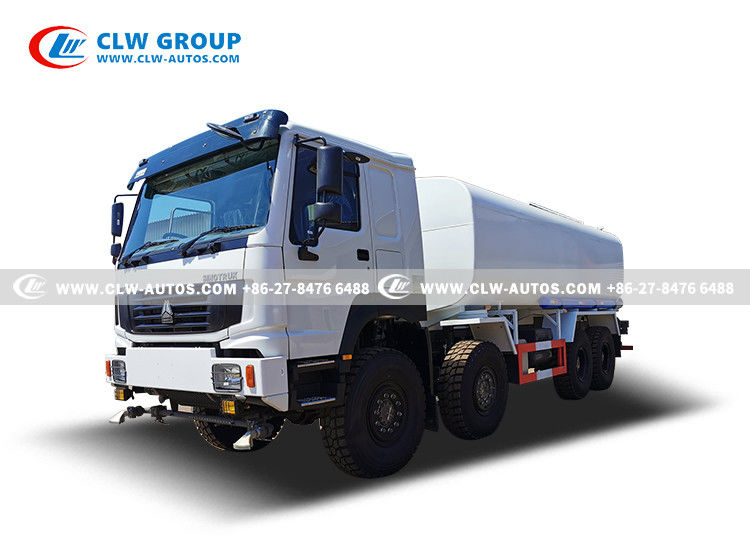

20m3 RHD Howo Water Bowser Truck Greening Watering Truck 0

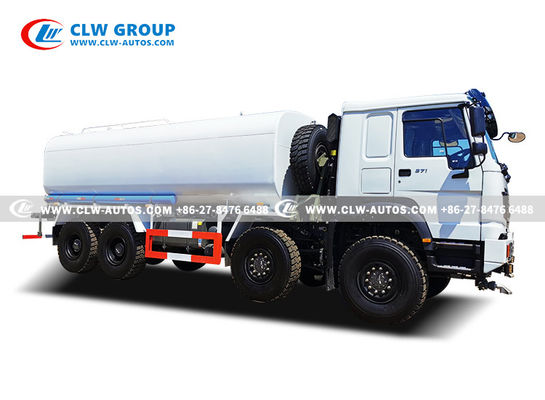

20m3 RHD Howo Water Bowser Truck Greening Watering Truck 120m3 RHD Howo Water Bowser Truck Greening Watering Truck 2

Specification
Model SINOTRUCK HOWO  20000 liter water tank bowser truck
Engine Maker: CLW GROUP
  Diesel 4 stroke direct injection diesel engine,
  6 cylinder in-line with water cooling,turbo-charging & intercooling
  Engine model: WD615.69
  Maximum output: 371@2200rpm
  Max torque: 1350NM@1100-1600rpm
  Bore/Stroke(mm):126/130
  Mean Position Speed: 9.53m/s
  Compression ratio:15.5:1
  Displacement: 9.726L
  Specific fuel consumption: 198g/Kwh
Clutch Φ430 Diaphragm type
Transmission SINOTRUK HW19710
Front Axle 7Tons
Rear Axle 16Tons
Chassis Frame: U-profile parallel ladder with U-profile riveted cross members
  From suspension:9 semi-elliptic leaf springs and stabilizer
  Spare wheel carrier: with one spare wheel
  Fuel tank: with one 300L lockable fuel tanks
Steering ZF8098 integral type power-steering
Wheel & Types Spring: 10/12,4/12
  Tyre: 12.00R20 bias tire
  Radial tire and tubeless tire is optional
Driver's cab HW 76 , flat head, tippable, one sleeper with A/C
  Fuel consumption (L/100km): 36
Dimensions in (mm) Wheel base : 1350+4300+1400
  Dimension(mm): 9800*2500*3400
  Max. speed (km/h): 102
  Max. gradeability(%): 25
  Front overhang (mm): 1500
  Rear overhang (mm): 2625
  Rear track (mm): 1830
  Approach angle: 16 degree
  Departure angle: 15 degree
Water tank capacity Capacity: 20CBM
  Length: 6.7m
  Thickness of steel: 4mm
With high pressure spray gun and sprayer in front and rear

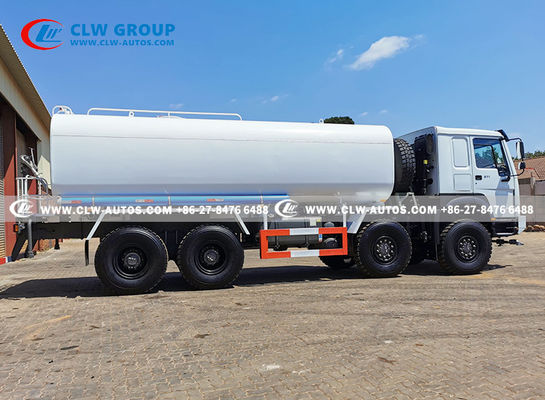

20m3 RHD Howo Water Bowser Truck Greening Watering Truck 3

20m3 RHD Howo Water Bowser Truck Greening Watering Truck 4

20m3 RHD Howo Water Bowser Truck Greening Watering Truck 5

20m3 RHD Howo Water Bowser Truck Greening Watering Truck 620m3 RHD Howo Water Bowser Truck Greening Watering Truck 720m3 RHD Howo Water Bowser Truck Greening Watering Truck 8



Key word: water truck,water cart,water tanker truck,isuzu water truck,5000liters water truck,5tons water truck,5000L water truck,water bowser,water truck for myanmar,water truck for cambodia,water bowser for vietnam
