HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Dom ProduktyCiężarówka do sprężania śmieci

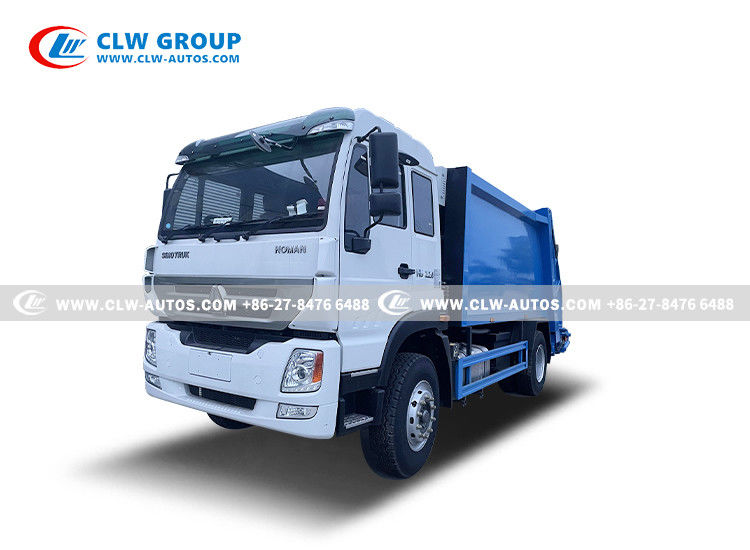

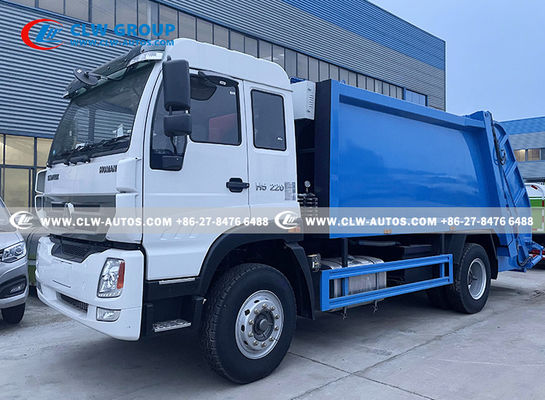

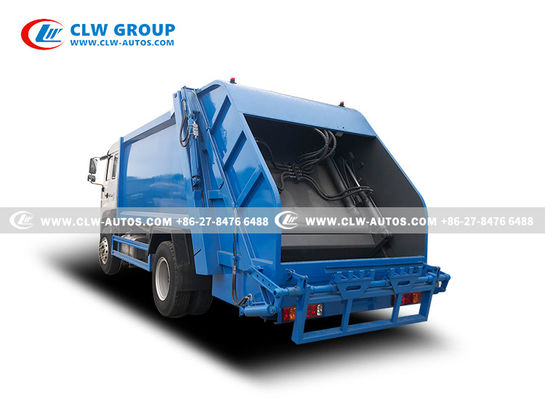

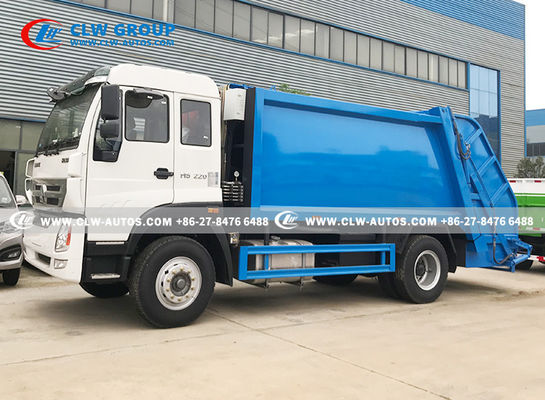

SINOTRUK HOMAN Garbage Compactor Truck With 18m3 Rear Loader

Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Im Online Czat teraz

SINOTRUK HOMAN Garbage Compactor Truck With 18m3 Rear Loader

SINOTRUK HOMAN Garbage Compactor Truck With 18m3 Rear Loader
SINOTRUK HOMAN Garbage Compactor Truck With 18m3 Rear Loader SINOTRUK HOMAN Garbage Compactor Truck With 18m3 Rear Loader SINOTRUK HOMAN Garbage Compactor Truck With 18m3 Rear Loader SINOTRUK HOMAN Garbage Compactor Truck With 18m3 Rear Loader

Duży Obraz :  SINOTRUK HOMAN Garbage Compactor Truck With 18m3 Rear Loader

Szczegóły Produktu:

Miejsce pochodzenia: Suizhou, Chiny
Nazwa handlowa: CLW
Orzecznictwo: CCC,ISO,
Numer modelu: CLW9156ud

Zapłata:

Minimalne zamówienie: 1 jednostka
Cena: negotiable
Szczegóły pakowania: Nagie opakowanie, Ro-ro, statek masowy
Czas dostawy: 20-30 dni
Zasady płatności: L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Możliwość Supply: 500 jednostek miesięcznie
Szczegółowy opis produktu
marka: HOMAN, ISUZU, Dongfeng, FOTON, HOWO, JAC, JMC, SHACMAN, FAW Tworzywo: Stal węglowa
Grubość: Bok 4 mm i dół 5 mm Rozstaw osi: 4700 mm
Moc w koniach mechanicznych: 190 KM, Yuchai Pompa hydrauliczna: Znana chińska marka
System sterowania: System operacyjny marki Siemens. Współczynnik kompresji: 0,75
Gwarancja: 1 rok Logo: Dostosuj obraz i logo
Wskazówki techniczne: Tak wideo z operacji: Tak
Podkreślić:

18m3 Rear Loader Garbage Compactor Truck

,

Carbon Steel Garbage Compactor Truck

,

SINOTRUK HOMAN Rear Loader Garbage Truck

SINOTRUK HOMAN 18m3 Rear Loader Garbage Compactor Truck

Product Description



The compression garbage truck is composed of a sealed garbage compartment, a hydraulic system, and an operating system. The whole vehicle is fully sealed, and all the sewage from the compression, dumping, and compression process enters the sewage tank, which completely solves the problem of secondary pollution during garbage transportation and avoids inconvenience to people. The key components are adopted Imported parts have the advantages of high pressure, good sealing, convenient operation and safety. Optional rear hanging bucket turning mechanism or garbage bucket turning mechanism.



1--Easy Full Automatic Operation of garbage compactor truck : computer control system for loading and unloading operations.
2--One Person Operation of garbage compactor truck: Reducing sanitation working, greatly improves the working environment.
3--Double Operation System of garbage compactor truck: computer control system and manual operation greatly improves the vehicle usage rate.





Isuzu 4X2 5Tons Garbage Compactor Truck Waste Compactor Trucks
Overall Dimension 7100×2250×2750 mm Gross Vehicle Weight 17525 kg
Curb Weight 7725 kg Loading Weight 9800 kg
Wheel Base 4700 mm Front / Rear Axle 4300/10000 kg
Cabin Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine Yuchai brand
Engine horsepower 190HP, EURO 3
Max Driving Speed 90 km/h
Gear Box 8 Forward Gear, 2 Reverse Gear,
Tire 9.00R20, 6 pieces with one spare)
Garbage Bin Capacity 14CBM
Material 4mm Carbon Steel for Garbage Bin Body
Design Whole unit with Leakage Proof Design
Ways of Loading Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio 1/3 - 1/4
Control System One control Panel on the back, One Control system in back of Cabin
Dispensing System 1. Equipped with air-tight dustbin, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all handled by 1 person
3. Sewage water collection tank to avoid any pollution during handling.
4. Large Pressure, Good Leakage Proof, Convenient Operation
Dependable Security
5. Electrical Control Panel for compacting system.
6. Cycling time<14~18s
Remarks 1. Color is optional
2. Customized LOGO painting as per customer request









Compactor Carbage Truck Production Process



SINOTRUK HOMAN Garbage Compactor Truck With 18m3 Rear Loader 0

Advantage to use compressed garbage truck for waste management

●The method of garbage collection is simple: change the messy and old appearance of garbage cans all over the streets of the city, and prevent secondary pollution.
●High compression ratio and large loading capacity: The maximum crushing pressure is up to 12 tons, and the loading capacity is equivalent to two and a half times of the same ton of non-compressed garbage.
●Operation automation: the computer control system is adopted. During all loading and unloading operations, one driver is required to operate. Two operating modes, fully automatic and semi-automatic can be set, which not only reduces the labor intensity of sanitation workers, but also greatly improves the working environment.
●Good economy: When the special equipment is working, the computer control system automatically controls the throttle.
●Double insurance system: The operating system has dual functions of computer control and manual operation, which greatly guarantees and improves the utilization rate of the vehicle.
●Turning mechanism: optional turning mechanism with trash can (or bucket).

Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipmen



FAQ



Q1: What kinds of garbage trucks I can order from your company?


A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied garbage truck to any overseas companies?


A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
