| Pojemność zbiornika: | 22 000 litrów |
|---|
The Sinotruk HOWO TX Water Sprinkler Tanker is a professional-grade watering vehicle built on the proven HOWO 6x4 chassis with a 371HP WD615.47 turbocharged diesel engine (Euro II). The 22,000-liter Q235 carbon steel tank features 4-5mm wall thickness, elliptical cylindrical design with built-in baffles, and epoxy anti-corrosion coating on the inner wall for durability.
The 90m³/h water pump with ≥7m self-priming depth supports front flushing (≥14m width), rear spraying (≥16m width), side spraying, and a 360° rotating high-pressure water cannon (≥35m range, adjustable columnar/fog pattern). Dual operation modes (in-cab centralized control + rear manual control) provide operational flexibility.

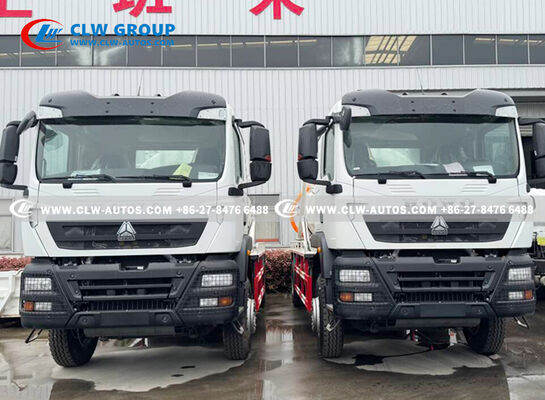

The HOWO TX-F flat-top cab features hydraulic tilting, ECE R29 safety certification, air conditioning, central locking, electric windows, air suspension driver's seat, and driving recorder. Built for Africa, Southeast Asia, the Middle East, and South America markets.
| Specification | Details |
|---|---|
| Product Name | HOWO TX 22,000L Water Sprinkler Tanker |
| Vehicle Model | CS5250GSS |
| Chassis | Sinotruk HOWO 6x4 |
| Overall Size | 9,800 * 2,500 * 3,200 mm |
| Wheelbase | 4,600 + 1,350 mm |
| GVW / Curb | 20,000 kg / 13,300 kg |
| Front/Rear Axle | 9.5 t / 16 t (dual) |
| Max Speed | 85 km/h |
| Engine | WD615.47, 371 HP, 9,726 ml, Euro II |
| Transmission | HW19710, 10-speed manual (10F+2R) |
| Brakes | Dual-circuit air + exhaust auxiliary |
| Tires | 12.00R20 (10 tires) |
| Tank Capacity | 22,000 L |
| Tank Material | Q235 carbon steel, 4-5mm |
| Tank Coating | Epoxy anti-corrosion (inner) |

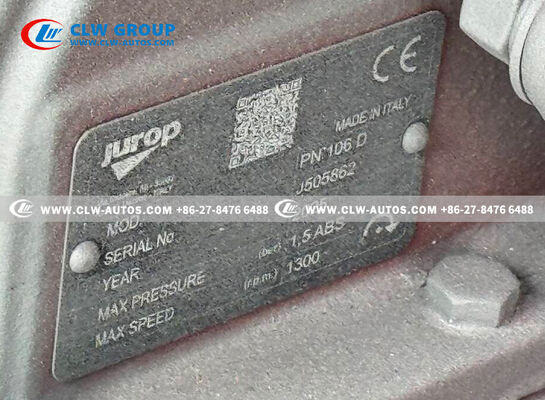

| Water Pump | 90 m³/h, ≥7m self-priming |
| Front Flush Width | ≥14 m |
| Rear Spray Width | ≥16 m |
| Water Cannon Range | ≥35 m |
| Water Cannon | 360° rotation, adjustable pattern |
| Control | In-cab + rear manual |
| Cab | HOWO TX-F flat-top, A/C, air suspension seat |
